Baja Designs S8/IR Wire Harness w/ Mode (2 Bar Max)

Baja Designs
BAJ640122
852156007668
Light Accessories and Wiring
20+ Units In Stock - Ships Next Business Day
$ 79.95
$ 79.95

SKU: 640122 | UPC: 852156007668

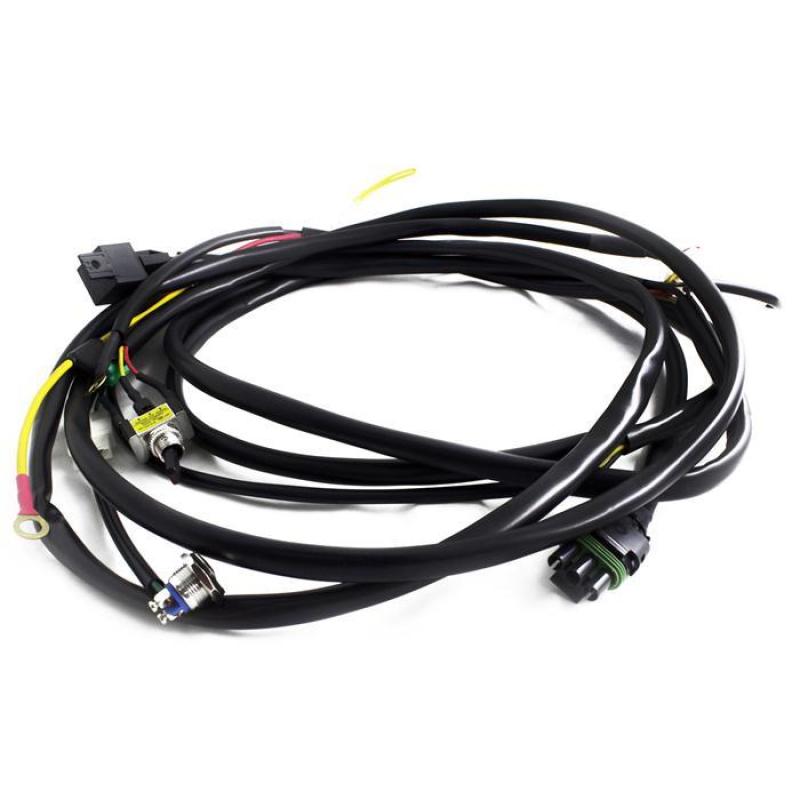

Baja Designs OnX6+/Hybrid/Laser/S8 Wiring Harness w/ Mode Switch (2 Bar Max)

This plug-and-play wiring harness simplifies installation for Baja Designs OnX6+, Hybrid, Laser, and S8 light bars up to 2 bars on any off-road truck, UTV, ATV, or Jeep. Engineered for race conditions, it delivers reliable power with heavy-duty construction and enables backlight or laser dimming modes. Perfect for bumper or roof mounts with 100-inch wire length between battery and connectors.

Key Features

  • 100-Inch Wire Length: Provides ample reach from battery ring terminals to weatherpack connectors for flexible bumper or roof mounting on any vehicle.
  • Complete Kit Contents: Includes battery ring terminals, high-amperage relay, protective sheathing, and inline fuse for full plug-and-play setup.
  • Heavy-Duty Wire Gauge: Built to handle power demands of any size OnX6+, S8, Hybrid, or Laser bar without voltage drop.
  • Dual On/Off Switches: Separate toggles control primary light bar function and secondary amber backlight or laser mode for versatile operation.
  • Secure Connections: Three-pin weatherpack terminals with splice connectors ensure waterproof, vibration-resistant links for off-road durability.

Product Notes

  • Suited for demanding race and off-road use with premium materials.
  • Universal design works with all compatible Baja Designs light bars.
  • Mounting hardware not included. use existing light bar mounts.

Installation Notes

  • Professional installation recommended.
  • Route wires away from heat sources and moving parts for longevity.
  • Compatible with Baja Designs OnX6+, S8, Hybrid, and Laser bars. no additional hardware needed beyond basics.

This Part Fits

Year Make Model Submodel
Universal All All Off-Road Vehicles OnX6+, S8, Hybrid, Laser Bars (Up to 2)
2007-2024 Jeep Wrangler JL/JKU/TJL
2021-2024 Ford Bronco All
2016-2024 Toyota Tacoma TRD Off-Road/Pro
2017-2024 Ford F-150 Raptor All

Why Choose Baja Designs?

  • Trusted leader in off-road lighting for over 30 years.
  • Components built to withstand extreme dust, water, and vibration.
  • Precision-engineered for seamless integration with OnX6+ and S8 systems.

Frequently Asked Questions

  • Q: Which light bars does this harness support?
    A: Designed for Baja Designs OnX6+, Hybrid, Laser, and S8 bars up to 2 bars maximum, with mode switching for backlight or laser functions.
  • Q: What type of connectors are used?
    A: Three-pin weatherpack terminals paired with splice connectors for secure, weatherproof connections.
  • Q: What warranty coverage applies?
    A: Backed by Baja Designs 5-year limited warranty on wiring harness components.

Shipping & Handling

  • Method: Standard ground shipping
  • Availability: In stock - ships same or next business day
  • Packaging: Compact box measuring 12 x 8 x 4 inches
  • Weight: 1.1 lbs
