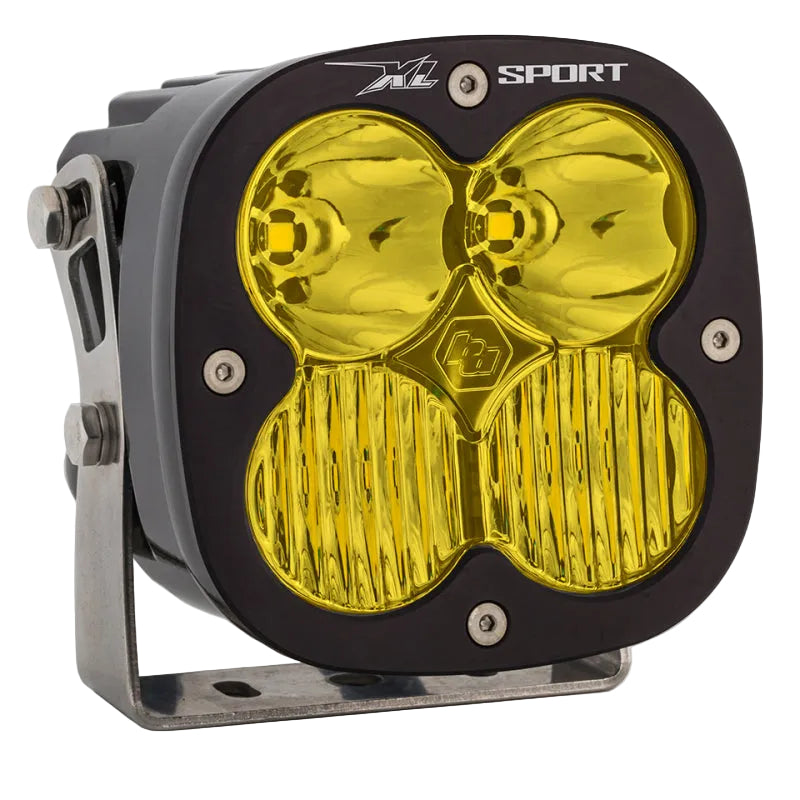

Universal High-Output Auxiliary LED Light Pod
The Baja Designs XL Sport is a universal amber LED auxiliary light pod using Baja Designs' high-speed reflectors and next-generation LEDs to produce 3,162 raw lumens in a driving/combo beam pattern. Its compact cast aluminum housing bolts on to trucks, SUVs, and off-road vehicles for supplemental forward lighting in dust, fog, or low-visibility trail conditions.
Key Features
- 3,162 raw lumens per light in a driving/combo beam pattern
- Amber hard-coated polycarbonate lens for reduced glare in fog, dust, and snow
- Powder coated cast aluminum housing and bezel
- Stainless steel mounting hardware included
- IP69K rated, waterproof and pressure-washable
- 49,930 hour LED life expectancy
- Built-in overvoltage protection
Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All | All |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 560013 |
| Lens color | Amber |
| Beam pattern | Driving/Combo |
| Output | 3,162 lumens |
| Power draw | 30W / 2.2A |
| Dimensions | 4.43 in. x 3.65 in. x 4.43 in. |
| Weight | 2.45 lbs |
| Water resistance | IP69K |
What's Included
- 1 XL Sport LED light pod, amber, driving/combo
- Mounting hardware
About Baja Designs
Baja Designs has engineered LED off-road and auxiliary lighting in San Marcos, California since 1994, developing its own optics, LED drivers, and ClearView reflector technology used across desert racing, overland, and daily-driven off-road vehicles.
FAQ
Is a wiring harness included with a single light pod?No, this single-light listing does not include a wiring harness, harnesses are sold separately or included with pair kits.
What beam pattern does this light use?Driving/Combo, which blends a wider near-field pattern with a longer-range spot pattern in one light.
Is this light waterproof?Yes, it carries an IP69K rating and is rated waterproof and safe for pressure washing.
What is the lens color?Amber, which improves visibility in fog, dust, rain, and snow compared to a clear lens.
Is mounting hardware included?Yes, stainless steel mounting hardware is included with the light.
Can this light be mounted to a light bar or bumper?Yes, it is a universal light pod that mounts using its included bracket to any compatible bar, bumper, or roll bar location.
How long do the LEDs last?Baja Designs rates the XL Sport's LED life expectancy at 49,930 hours.
What is Baja Designs' warranty on this light?Baja Designs backs this light with a limited lifetime warranty and a 30-day satisfaction guarantee.
Installation Instructions
- Select a secure mounting location with an unobstructed forward view.
- Attach the included stainless steel bracket to the mounting surface.
- Secure the light pod to the bracket and adjust the aim angle.
- Route the wiring harness away from hot, sharp, or moving components to a switched power source.
- Connect to a relay or switch per a standard 12V wiring diagram.
- Test the light and verify aim before final tightening of all hardware.
