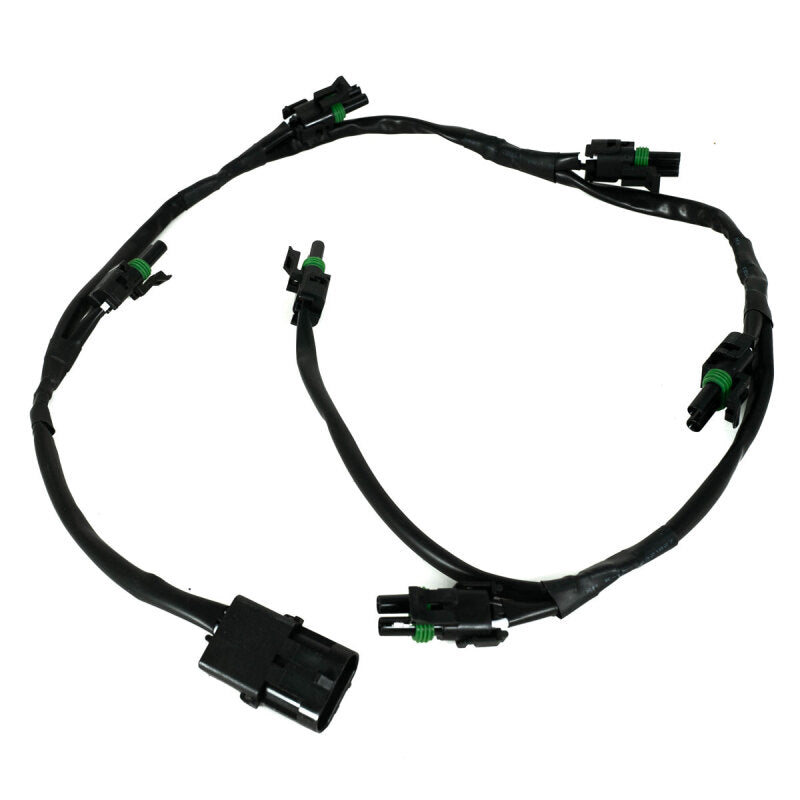

Equip your off-road vehicle with the Baja Designs Universal XL Linkable Wiring Harness designed to power up to six XL Linkable pod lights from a single source. This harness fits trucks Jeeps UTVs ATVs and any 12V system running Baja Designs XL lights. Deliver consistent power with protection from overloads for night runs and trails.
Key Features
- 40 Amp Relay: Manages high current draw for bright sustained light output without voltage drops.
- 30 Amp ATC Fuse: Built-in protection safeguards your electrical system from shorts and surges.
- Extended Wire Lengths: 108-inch main power lead and 24-inch branches allow flexible routing around engine bays.
- Requires standard 12V battery connection.
- Leaders in off-road LED lighting since 1992.
- USA-made components built for extreme durability.
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| Universal or specification-matched application. Verify dimensions, mounting, wiring, voltage, beam, quantity, and every exact-part requirement. | |||
Specifications
| Brand | Baja Designs |
|---|---|
| Manufacturer Part Number | 640190 |
| Product Type | Light Accessories and Wiring |
| Condition | New |
| Product Note 1 | Compatible only with Baja Designs XL Linkable series pod lights |
| Product Note 2 | Requires standard 12V battery connection |
| Product Note 3 | Packaged to prevent damage during transit |
What's Included
- One new Baja Designs wiring component in the exact configuration and quantity stated in this listing
- Lights, lenses, brackets, harnesses, switches, relays, covers, and mounting hardware are included only when expressly identified for this exact part
About Baja Designs
Baja Designs develops performance lighting for street, off-road, racing, commercial, and powersports applications. Each light, lens, optic, bracket, and harness remains exact-part specific, so verify the complete configuration before installation.
Related Baja Designs Products
- Shop all Baja Designs products
- Baja Designs 2024+ Toyota Tacoma Upfitter Harness
- Baja Designs 325 WattsSquadron/S2 Wire Harness (3 Lights Max)
- Baja Designs Ford OnX6/S8 Upfitter Wiring Harness
Frequently Asked Questions
What Baja Designs lights does this harness support?
Specifically powers up to six XL Linkable pod lights with matching DT connectors for plug-and-play setup
What materials are used in the wiring?
Heavy-duty 14 AWG wire with protective sleeving and sealed connectors for weather resistance
What is the warranty on this wiring harness?
Backed by Baja Designs 5-year limited warranty on electronics
Which lights and electrical system will this wiring component support?
Match the connector family, voltage, current draw, number of lights, switch or upfitter configuration, fuse, relay, and every exact-part compatibility note.
Installation Instructions
- Professional installation recommended.
- Route wires away from heat sources and moving parts
- Compatible with standard relay mounting hardware
