SKU: 640192

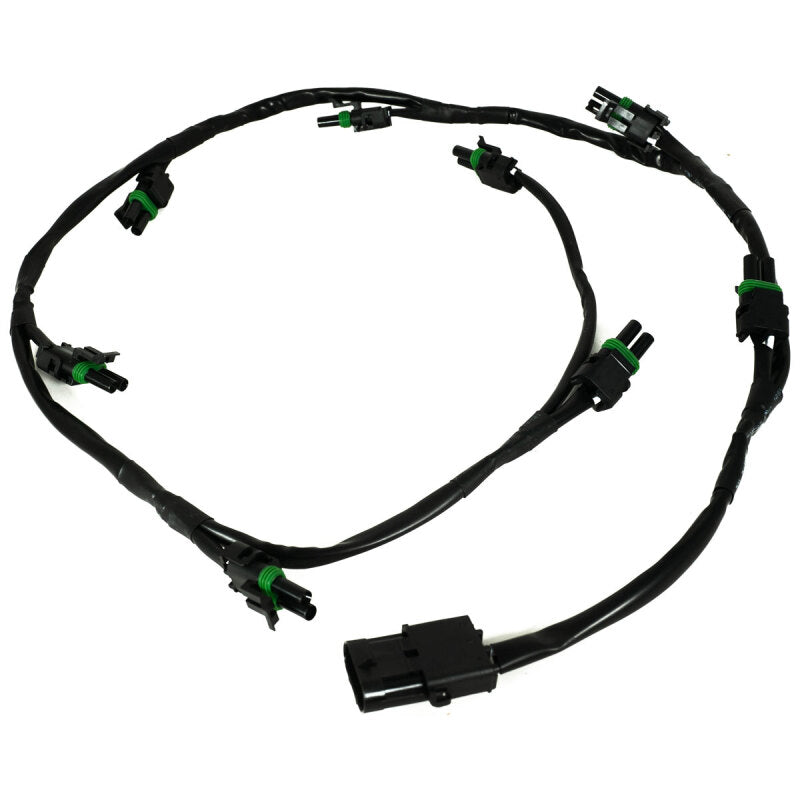

Baja Designs Universal XL Linkable Wiring Harness - 8 XLs
This plug-and-play wiring harness connects up to 8 Baja Designs XL linkable LED pod lights for bright off-road illumination. Designed for trucks UTVs Jeeps ATVs and any 12V vehicle it simplifies multi-light setups with reliable power delivery. Install dimming controls and relays for precise operation in demanding conditions.
Key Features
- 8-Light Capacity: Wide open design supports up to 8 XL linkable pod lights for maximum trail visibility
- Dimming Switch: Dash-mount knob provides adjustable brightness control from full power to low for versatile use
- Master Controls: Toggle switch and vehicle flasher relay ensure safe integrated operation with factory signals
- Plug-and-Play Design: Direct connections to Baja Designs XL series eliminate custom wiring hassles
- Patent Protected: US Patent #D864882 confirms innovative engineering for long-term reliability
Product Notes
- Requires Baja Designs XL linkable pod lights for compatibility
- 12V DC system draws power from vehicle battery
- Securely packaged to prevent damage during transit
Installation Notes
- Professional installation recommended.
- Connect to clean 12V battery source with inline fuse
- Compatible with Baja Designs XL mounting kits and hardware
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| Universal | All | All Vehicles | Trucks UTVs Jeeps ATVs |
| 2018-2024 | Jeep | Wrangler JL | All |
| 2007-2018 | Jeep | Wrangler JK | All |
| 2019-2024 | Ford | Ranger | All |
| 2015-2024 | Polaris | RZR | XP Turbo |
Why Choose Baja Designs?
- Off-road lighting leader since 1992 with proven durability
- USA-made components built for extreme environments
- Precision wiring handles high-amperage LED demands
Frequently Asked Questions
-
Q: Will this harness fit non-linkable XL lights?
A: No it requires Baja Designs XL linkable pods for direct plug-in connections -
Q: What type of wiring is used?
A: Heavy-duty automotive-grade wires rated for high current and harsh weather exposure -
Q: What is the warranty and install time?
A: 30-day satisfaction guarantee plus limited lifetime warranty typical install takes 1-2 hours
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective box 12 x 10 x 4 inches
- Weight: 1.65 lbs
