BD Diesel 14-24 RAM 2500-5500 6.4L Hemi Exhaust Manifold Kit

The OEM exhaust manifold bolts on the 6.4L HEMI are a known failure point. Thermal expansion cycles crack castings and shear fasteners, leaving you chasing exhaust leaks or drilling out broken studs in the head. BDD1041454 replaces both manifolds, bolts, gaskets, and hardware with components engineered from the ground up to survive what the factory setup cannot. High-silicon ductile iron castings, extended fasteners with spacers, and CNC-machined mating surfaces combine into a direct bolt-on upgrade that solves the problem permanently.

Why OEM Manifolds Fail on the 6.4L HEMI

The stock cast-iron manifolds on RAM 2500/3500/4500/5500 HD trucks flex and warp across heat cycles. As the manifold expands and contracts, it walks against the bolt threads until they fatigue and snap. Once a bolt breaks flush in the head, you are looking at a full manifold-off repair regardless. The BD kit addresses every failure mode: the casting material, wall thickness, fastener design, and heat shield mounting are all redesigned together.

High-Silicon Ductile Iron Construction

This kit uses high-silicon ductile iron, rated to handle 1,200°F operating temperatures and a material melt point of 2,800°F. Standard cast iron warps. Ductile iron flexes and recovers. The uniform wall thickness throughout each manifold eliminates the thin spots where conventional castings develop cracks. Extra-thick walls absorb and distribute heat-soak loads rather than concentrating stress at any single point.

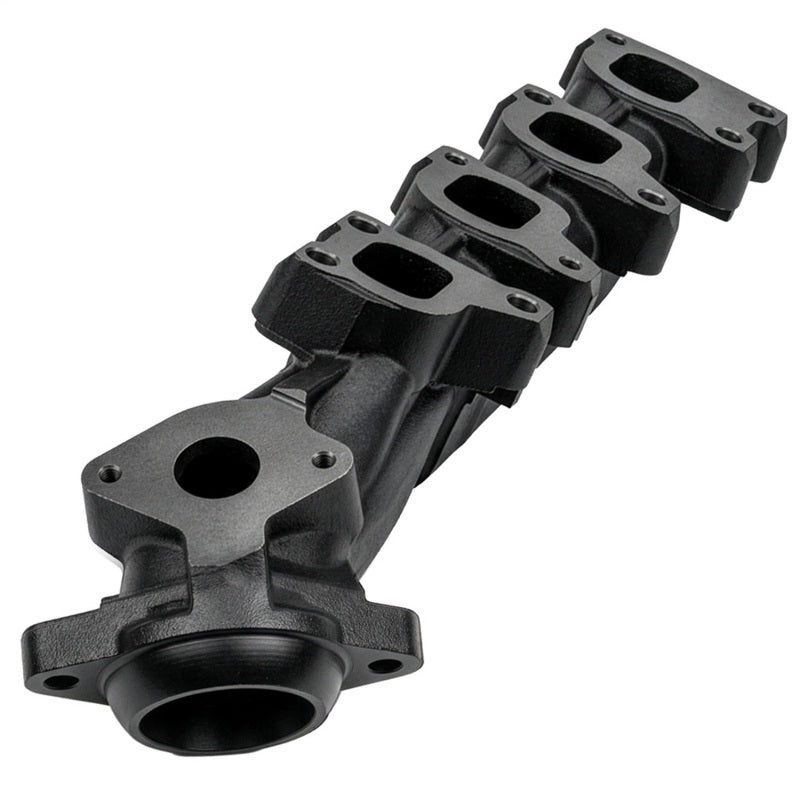

CNC-Machined Mating Surfaces

Every mating surface on these manifolds is precision CNC-faced before leaving the factory in Abbotsford, BC. A permanently flat sealing surface is what keeps new gaskets sealed for the life of the part, not just the first heat cycle. The machined bolt surfaces provide consistent clamping force across all fastener locations.

Extended Fasteners and Independent Heat Shield Mounts

BDD1041454 includes extended manifold bolts with spacers that allow controlled thermal movement without overloading the threads. This is the core of the fix for OEM bolt breakage. Additionally, the heat shield mounting points are independent of the manifold bolts, eliminating the thermal fatigue that standard designs impose on the fasteners by sharing those loads.

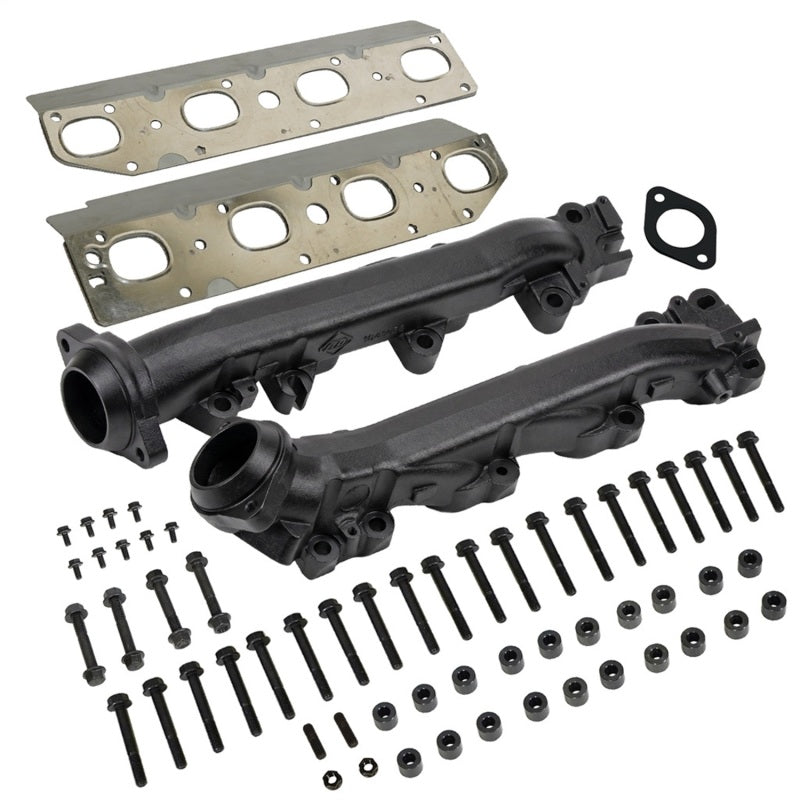

What's Included

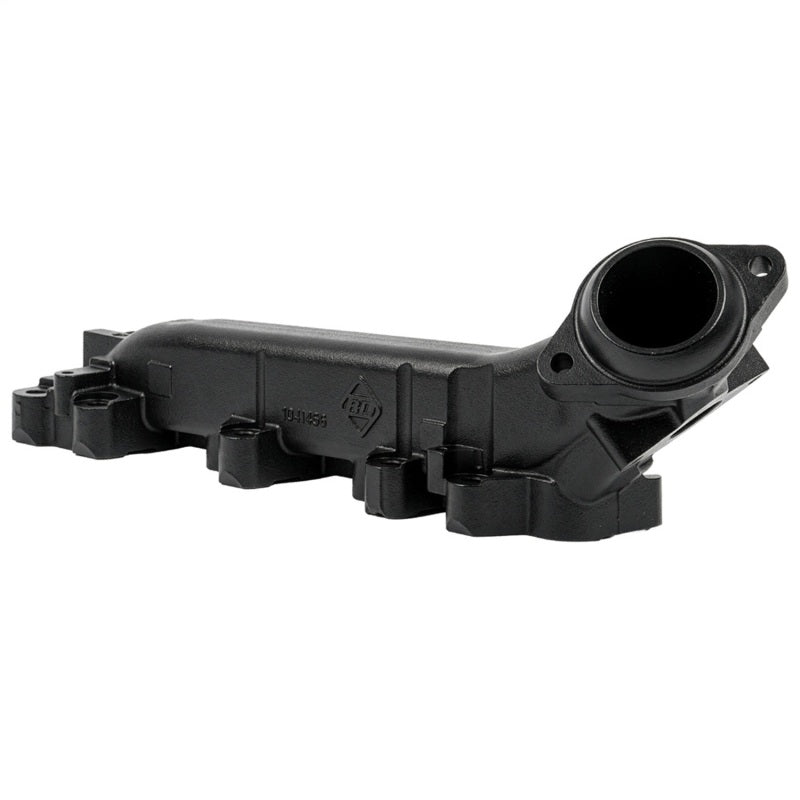

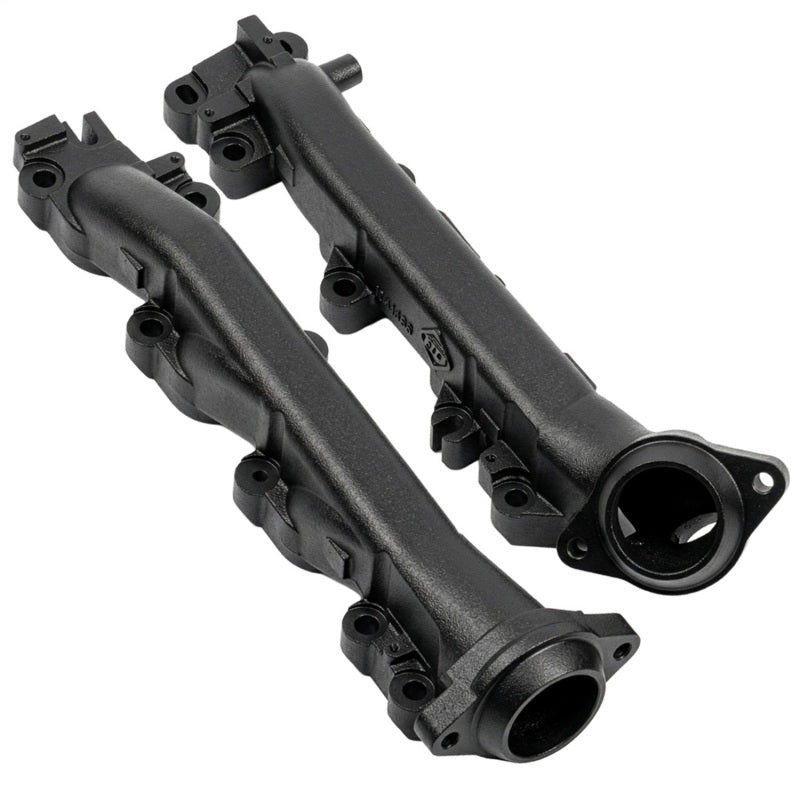

• Driver side (left) exhaust manifold, high-silicon ductile iron

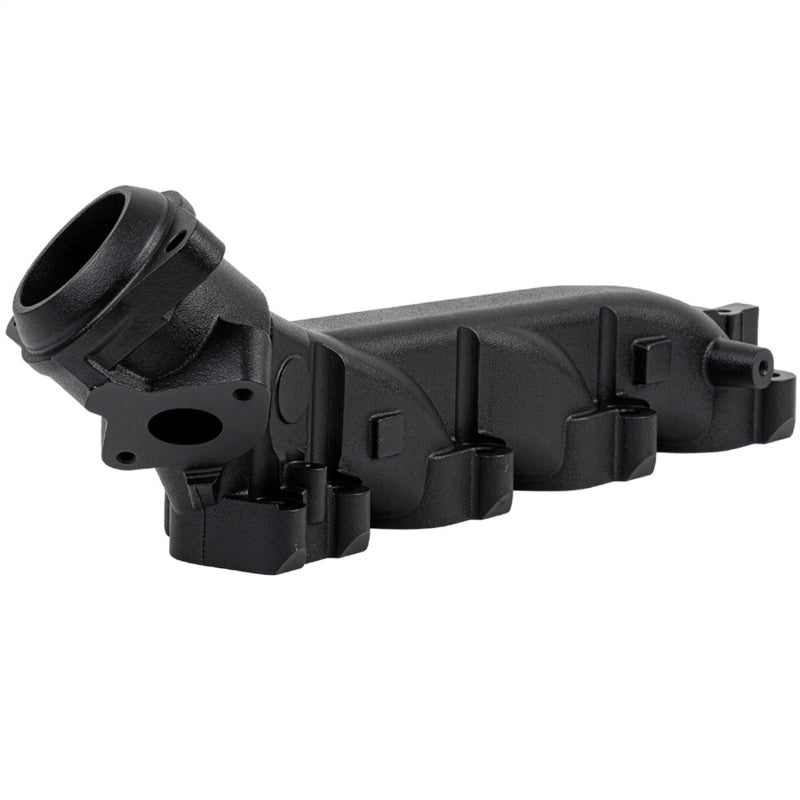

• Passenger side (right) exhaust manifold, high-silicon ductile iron
• New exhaust manifold gaskets (both sides)
• Extended manifold-to-head bolts
• New nuts
• New spacers for thermal expansion management
• New exhaust pipe retaining bolts

Note: OEM heat shields are reused. The kit repositions heat shield mounts to independent locations on the new castings. Download the install manual from the BD Diesel product page for exact fastener counts specific to the 6.4L HEMI application.

Specifications

Vehicle Fitment

Fits all cab and body configurations within each model year, including Regular Cab, Crew Cab, and Mega Cab on 2500/3500, and Cab and Chassis configurations on 4500/5500. Fits both 2WD and 4WD.

Installation Overview

1041454 is a bolt-on replacement requiring no cutting or welding. Difficulty is intermediate. The most common complication is extracting seized OEM fasteners, not the install itself. Have penetrating fluid and a broken stud extraction kit on hand before you start.

Access: Remove the wheel and inner fender liner on each side. On the driver side, disconnecting the steering shaft improves clearance for manifold removal. Mark the steering shaft position before removal and re-torque to 37 ft-lb after reinstallation.

Heat shield: Remove carefully to avoid bending. The OEM heat shields are reused and remounted to the independent mounting locations on the new castings.

Torque values: Manifold-to-head bolts, 18 ft-lb. Exhaust pipe retaining bolts, 24 ft-lb. Heat shield mounting bolts, 89 in-lb. Always download the current BD Diesel install manual from the product page for model-specific fastener sequences and counts.

Post-install: Start the engine and inspect all joints for leaks. Re-torque fasteners after the first full heat cycle.

Related Part Numbers

Warranty

BD Diesel covers this kit against defects in materials and workmanship for 36 months or 75,000 miles, whichever comes first. Warranty applies to parts only. Labor costs are not covered. Coverage is limited to the original purchaser and is non-transferable.

To make a warranty claim, you must provide proof of purchase (dated bill of sale), complete service history, and obtain a Return Material Authorization (RMA) number from BD Diesel before returning any product. An issued RMA does not represent warranty approval. BD is the final authority on all claim decisions.

Warranty does not cover misuse, improper installation, modification, abuse, competitive use (drag racing, sled pulling), normal wear and tear, or incidental and consequential damages. Installing aftermarket parts generally does not void your vehicle's factory warranty under the Magnuson-Moss Warranty Act (15 U.S.C. Sections 2301-2312). US residents can reference the Magnuson-Moss Warranty Act, which requires dealers to prove that an aftermarket part caused a specific failure before denying OEM warranty coverage on unrelated components. BD's warranty is governed by the laws of British Columbia, Canada.

Frequently Asked Questions

Does the 6.4L HEMI have exhaust manifold bolt problems?
Yes. Broken and seized exhaust manifold bolts are a well-documented failure on 6.4L HEMI trucks. The OEM manifold bolts are subjected to extreme thermal cycling, and the stock cast-iron manifolds flex enough to fatigue the fasteners over time. Drivers often notice ticking or exhaust smell before a bolt failure becomes a full leak. This kit addresses the root cause with extended bolts, spacers, and a casting designed to accommodate thermal movement without overloading fasteners.

Will I need to extract broken OEM studs before installing this kit?
Possibly. If your OEM bolts are broken flush in the head, you will need to extract them before the new manifolds can be installed. This is the most common complication on this job and has nothing to do with the BD kit itself. Have penetrating fluid, a torch, and a stud extractor available before starting. If extraction fails in the field, a machine shop can drill and re-tap the holes.

Do I need to weld anything to install this kit?
No. These manifolds are a direct bolt-on replacement using the OEM mounting locations. No cutting, welding, or exhaust pipe modification is required.

Is this kit compatible with both 2WD and 4WD trucks?
Yes. Manifold position is identical regardless of drivetrain configuration. The kit fits all 2WD and 4WD versions of the RAM 2500, 3500, 4500, and 5500 with the 6.4L HEMI.

Do I need to buy new heat shields?
No. The OEM heat shields are reused. The BD castings include independent heat shield mounting locations so the shields remount cleanly without relying on the manifold fasteners.

How difficult is it to remove the driver-side manifold on these trucks?
Access on the driver side requires removing the wheel and inner fender liner. Disconnecting the steering shaft improves clearance significantly. Mark the steering shaft alignment before removal and re-torque it to 37 ft-lb after reinstallation. The dipstick tube bracket also needs to be repositioned on the driver side.

Will installing this kit void my RAM factory warranty?
Installing aftermarket exhaust manifolds does not automatically void your vehicle's factory warranty under the Magnuson-Moss Warranty Act. The dealer or manufacturer would need to demonstrate that this specific part caused any failure they are denying coverage for. BD's own warranty documentation for US customers references the Magnuson-Moss Warranty Act directly.

What is the difference between this kit and PN 1041456 or 1041464?
PN 1041456 is the driver-side manifold only and PN 1041464 is the passenger-side manifold only. This complete kit includes both manifolds plus all required gaskets, extended bolts, nuts, and spacers. If only one of your original manifolds has failed, you can order an individual side. If you are doing both sides or want to replace everything as a matched set, this is the correct part.

Does this kit add horsepower?
BD does not publish dyno claims for this product and none should be expected. This is a durability and reliability upgrade, not a power-adding modification. The goal is eliminating exhaust leaks and bolt failures that degrade drivability and damage surrounding components. Any marginal improvement from better-sealed exhaust joints is a side effect, not the purpose.
