SKU: 1040310 | UPC: 019025000971

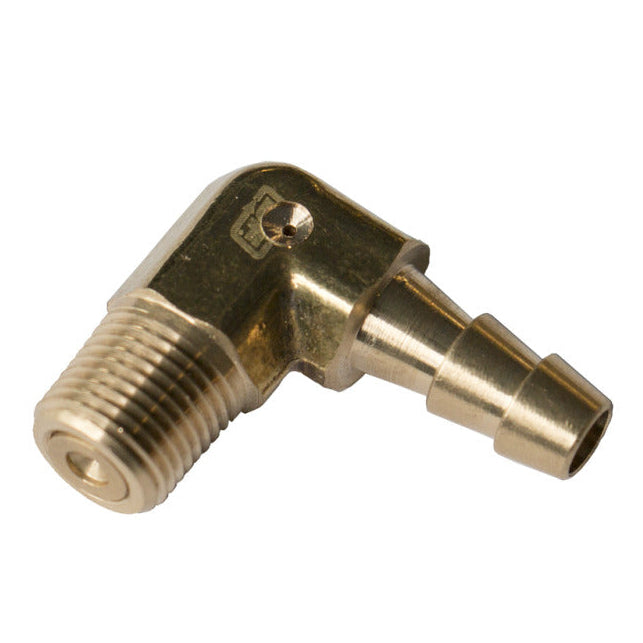

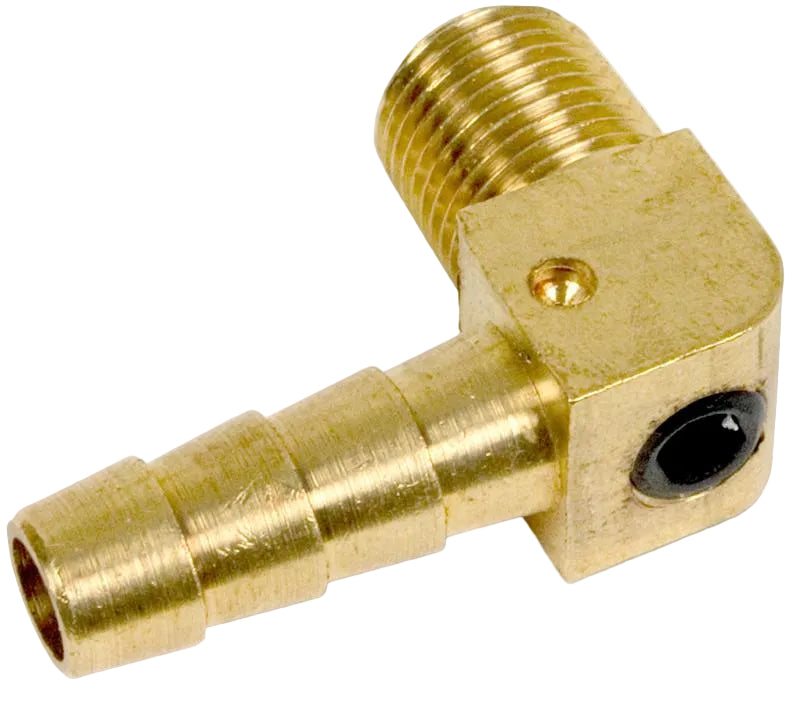

BD Diesel Elbow Orifice - 1994-2002 Dodge w/HX35 Turbos
The BD Diesel Elbow Orifice installs at the compressor outlet on 1994-2002 Dodge Ram 2500 and 3500 trucks with 5.9L Cummins diesel engines and HX35 turbochargers. This brass restrictor meters airflow to support BD exhaust brake operation by limiting boost pressure to 25 PSI. It delivers consistent engine braking power and prevents boost spikes during downhill descents for safer control.
Key Features
- Brass Construction: Machined from durable brass to handle high boost pressures and resist corrosion in harsh diesel environments
- Calibrated Orifice Size: 0.080-inch diameter precisely sized for HX35 turbos to cap boost at 25 PSI for safe exhaust brake function
- Direct Bolt-On Fit: Replaces factory elbow at turbo compressor outlet with no modifications needed
- Exhaust Brake Compatible: Required component for BD exhaust brake kits to maintain vacuum and braking efficiency
- Performance Engineered: Developed through BD's turbo research to deliver repeatable boost control on Cummins 5.9L
Product Notes
- Verify HX35 turbocharger presence before installing as part is specific to this turbo model
- Use with BD exhaust brake kits for full benefits on 1994-2002 Dodge Cummins applications
- Compact design ships securely without damage
Installation Notes
- Professional installation recommended.
- Remove stock compressor outlet elbow and install orifice using provided O-ring seal
- Compatible with factory turbo pedestal and intake piping hardware
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1994-2002 | Dodge | Ram 2500 | 5.9L Cummins Diesel w/HX35 Turbo |
| 1994-2002 | Dodge | Ram 3500 | 5.9L Cummins Diesel w/HX35 Turbo |
| 1994-1998 | Dodge | Ram 2500 | Base |
| 1994-1998 | Dodge | Ram 3500 | Base |
Why Choose BD Diesel?
- Established diesel leader since 1972 with roots in Valley Fuel Injection
- In-house manufacturing in 65,000 sq ft Abbotsford BC facility by 60+ specialists
- Pioneered exhaust brakes in 1989 with dedicated turbocharger design division
Frequently Asked Questions
-
Q: Will this fit 1999-2002 Dodge Rams?
A: Yes if equipped with HX35 turbocharger as some early 99 models retained HX35 before HX40 transition verify your turbo model -
Q: What material is the elbow made from?
A: Precision CNC-machined solid brass for strength durability and heat resistance in turbo applications -
Q: Is a warranty included and what about installation?
A: Covered under BD's limited warranty professional installation advised to ensure proper boost control and seal integrity
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Secure padded envelope 6 x 4 x 1 inches
- Weight: 0.1 lbs product weight 0.3 lbs shipping
