Built for stronger 68RFE street and towing service
BD Diesel 1064304SS combines a RoadMaster 68RFE transmission with a ProForce billet torque converter for 2019-2022 Ram 2500 and 3500 4WD trucks equipped with the 6.7L Cummins engine. It is intended for stock or mildly tuned trucks using stock or stock plus injectors.
Key Features
- Exact 1064304SS package for 4WD 68RFE applications
- ProTech68 valve body with a custom bonded and gasketed separator plate
- Deep sump aluminum transmission pan
- Billet 4C spring retainer

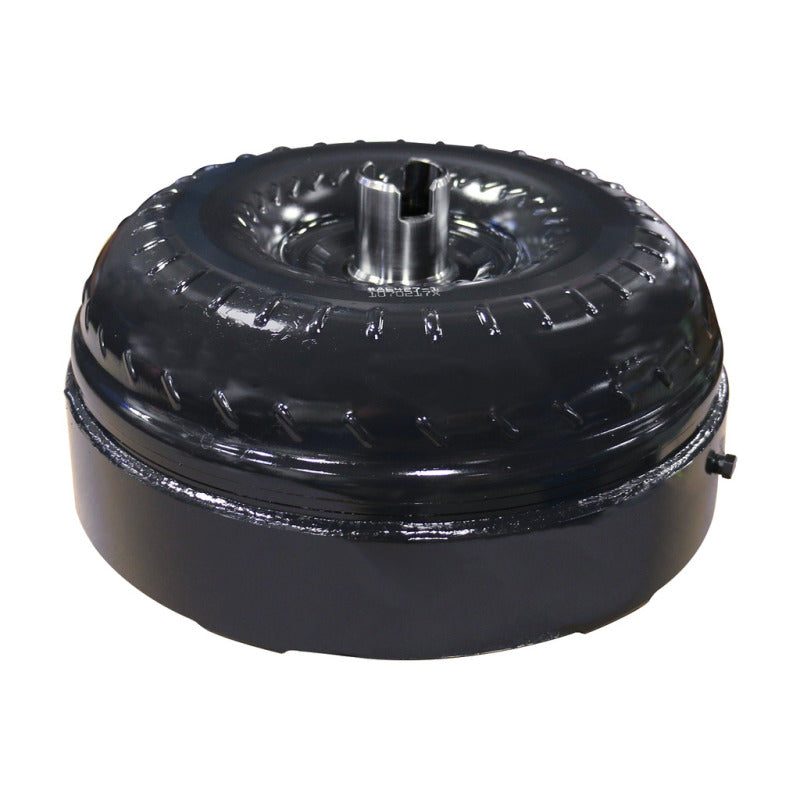

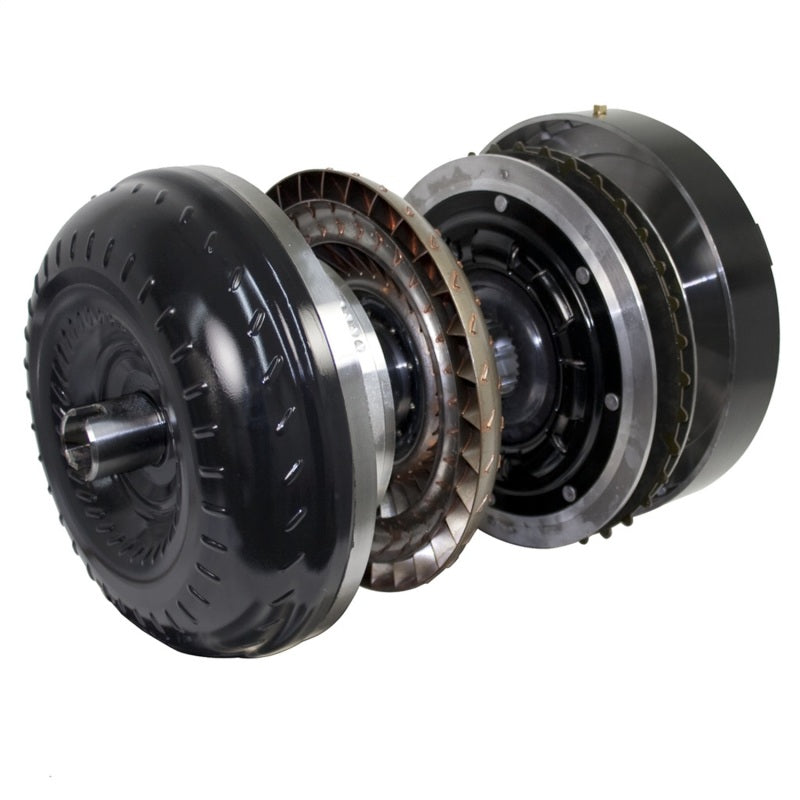

- ProForce billet torque converter with an enhanced stall stator, furnace brazed turbine fins, and a forged billet front cover

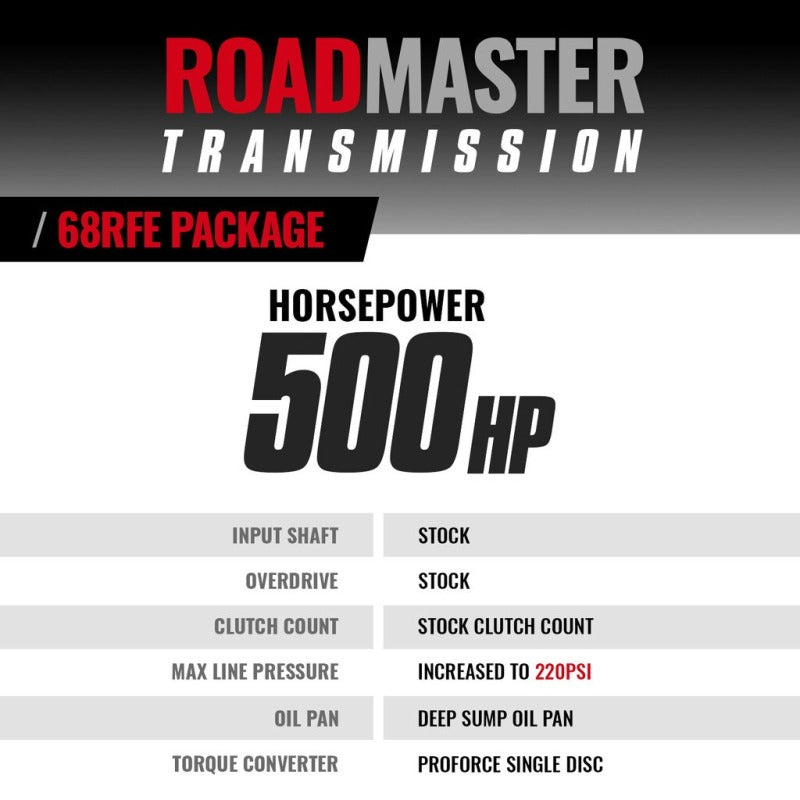

- Special transmission tuning is required to support increased line pressure
- Line pressure controller is not included
- A refundable core deposit applies
Fitment
| Year | Make | Model | Engine | Drivetrain | Transmission |
|---|---|---|---|---|---|
| 2019-2022 | Ram | 2500 | 6.7L Cummins | 4WD | 68RFE automatic |
| 2019-2022 | Ram | 3500 | 6.7L Cummins | 4WD | 68RFE automatic |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 1064304SS |
| Series | RoadMaster |
| Transmission | 68RFE automatic |
| Valve Body | BD ProTech68 with bonded separator plate |
| Oil Pan | Deep sump aluminum |
| Torque Converter | ProForce billet |
| Published Installation Time | 9 hours |
| Parts Warranty | 24 months or 100,000 miles, whichever occurs first |
| Labor Warranty | 12 months or 24,000 miles, whichever occurs first |
| Emissions | EMS 4, no California Executive Order required |
What's Included

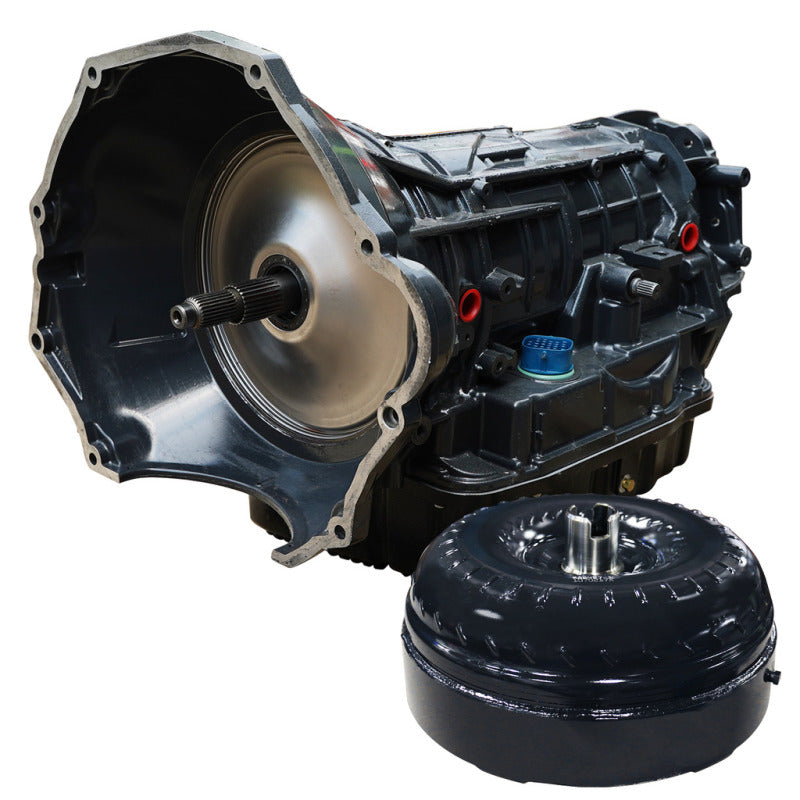

- One complete BD Diesel 1064304SS RoadMaster 68RFE transmission package with the ProTech68 valve body, billet 4C spring retainer, and deep sump aluminum pan installed
- One BD Diesel ProForce billet torque converter
About BD Diesel
BD Diesel engineers and manufactures diesel powertrain products including transmissions, torque converters, valve bodies, and supporting controls for street and towing applications.
FAQ
What is the 1064304SS?It is a RoadMaster 68RFE transmission and ProForce torque converter package for the verified Ram 4WD applications listed above.
Which trucks does this package fit?It fits 2019-2022 Ram 2500 and 3500 4WD trucks with the 6.7L Cummins engine and 68RFE automatic transmission.
Does it fit a 2WD truck?No. This package is specifically configured for 4WD applications.
Is a line pressure controller included?No. A line pressure controller is not included, and special transmission tuning is required for increased line pressure on these applications.
Is a core return required?A refundable core deposit applies. The return must be a complete like for like 68RFE core from a running application and must satisfy BD Diesel core acceptance requirements.
How should the core be returned?Drain all fluids and return the complete transmission with all brackets in the original shipping container. Process the return through the BD Diesel core portal within the applicable return window.
What warranty applies?Parts coverage is 24 months or 100,000 miles. Labor coverage is 12 months or 24,000 miles. The first limit reached applies, and warranty inspection and installation requirements must be followed.
Is a break in period required?Avoid heavy towing or hauling until 300 miles of stop and go driving have been completed so the transmission can relearn.
Is this package emissions legal in California?It is classified EMS 4 and does not require a California Executive Order. It is legal for sale and use in all 50 states as a replacement component.
How long does installation take?The published installation time is 9 hours. Required tuning and the vehicle relearn procedure must also be completed.
Installation Instructions
- Confirm the package label shows 1064304SS and verify the truck is a listed 4WD 68RFE application with the 6.7L Cummins engine.
- Remove the original transmission and converter according to the vehicle service procedure.
- Install the RoadMaster transmission and ProForce converter using the vehicle manufacturer torque specifications and required service parts.
- Fill the transmission with the correct OEM specified fluid and verify cooler flow and fluid level.
- Complete the special transmission tuning required for increased line pressure. The line pressure controller is not included.
- Perform the prescribed transmission relearn and avoid heavy towing or hauling until 300 miles of stop and go driving are complete.
- Drain the original core and return it complete with all brackets in the original shipping container through the BD Diesel core portal.
WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov
