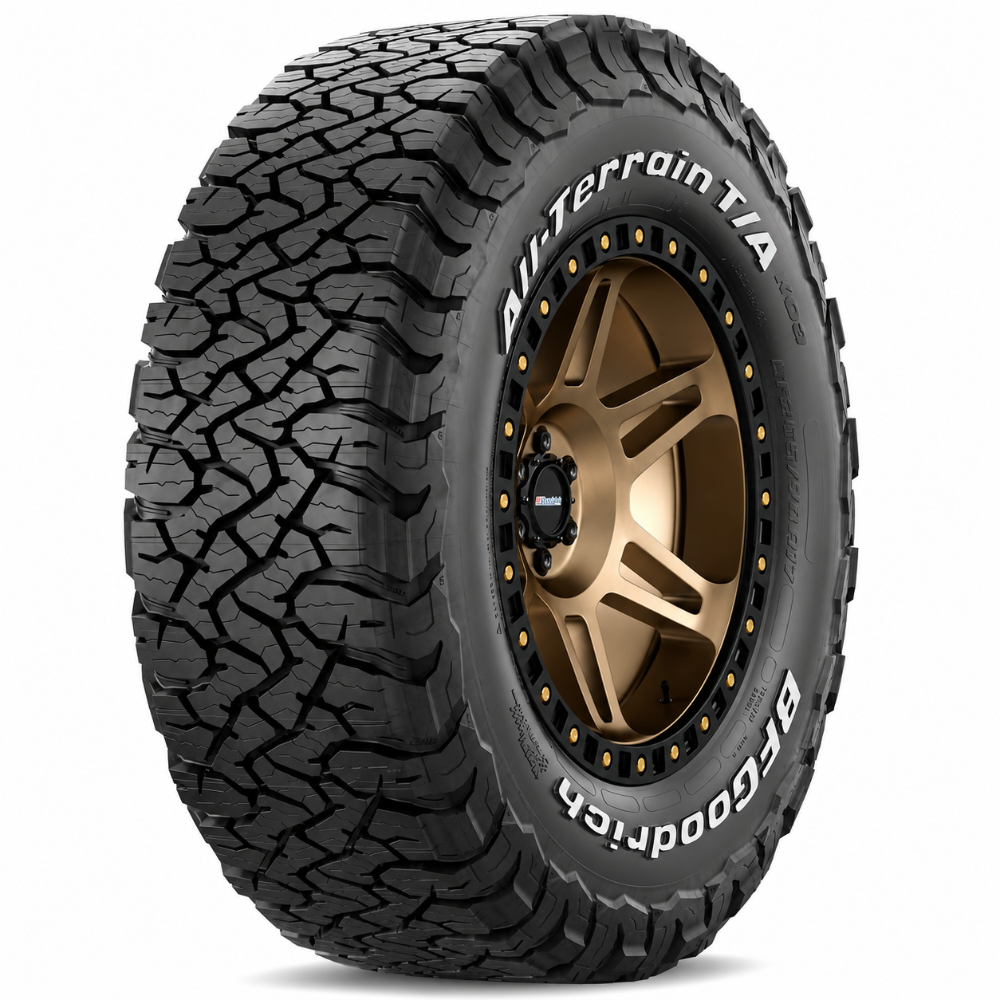

BFGoodrich All Terrain T/A KO3 LT315/75R16 127S

The BFGoodrich All-Terrain T/A KO3 in size LT315/75R16 (part number 19117) is the third and latest generation of BFGoodrich's iconic all-terrain light truck tire, engineered for serious off-road performance and reliable everyday use. This size carries a Load Range E (10-ply rated) construction with a load index of 127S, supporting a maximum load of 3,860 lbs at 65 psi. The raised white letter (RWL) sidewall is the signature look for builds that need functional capability and visual presence.

BFGoodrich part 19117 measures 34.6 inches in overall diameter with a 12.4-inch inflated width, making it a popular choice for Jeep Wrangler JK and JL builds, Ford Bronco, Ram 2500, Toyota Tacoma, and similar platforms. The tire features a reformulated cut, chip, and tear-resistant tread compound for greater longevity across gravel, dirt, and pavement. The symmetric non-directional tread pattern with interlocking tread blocks optimizes even stress distribution and uniform wear. Full-depth 3D Locking Sipes and Snow/Mud notches deliver traction in rain, mud, and winter conditions. Alternating shoulder scoops provide clawing traction in sand and rock when aired down, while Mud Phobic bars keep the tread channels clear of buildup.

Part 19117 carries the Three-Peak Mountain Snowflake (3PMSF) symbol, independently certified to meet severe snow service standards. CoreGuard Technology extends a bruise- and split-resistant rubber compound down the upper sidewall for additional protection against trail damage and sidewall impacts. Internal construction uses a triple-ply polyester casing, twin high-strength steel belts, and a nylon cap ply for high-speed structural integrity. BFGoodrich backs part 19117 with a 50,000-mile treadwear limited warranty.

What's Included

• 1 BFGoodrich All-Terrain T/A KO3 tire, LT315/75R16 (part 19117)

Note: Wheel/rim, TPMS sensor, and installation are sold separately. This listing is for one tire.

Specifications

Fitment

The BFGoodrich All-Terrain T/A KO3 LT315/75R16 (part 19117) is a universal fitment tire. It fits any vehicle with a 16-inch wheel and a rim width between 8.0 and 11.0 inches, including but not limited to Jeep Wrangler JK and JL, Ford Bronco, Ram 2500, Toyota Tacoma, Chevrolet Colorado, GMC Canyon, and similar trucks and SUVs. Always verify your vehicle's load rating requirements, wheel specifications, and fender clearance before mounting.

Frequently Asked Questions

What is the overall diameter of the BFGoodrich KO3 LT315/75R16?
Part 19117 measures 34.6 inches in overall diameter when mounted on an appropriately sized rim and inflated to the recommended pressure. The section width measures 12.4 inches inflated.

Is the BFGoodrich KO3 LT315/75R16 3PMSF rated?
Yes. Part 19117 carries the Three-Peak Mountain Snowflake (3PMSF) symbol, certifying it has passed standardized severe snow service testing. It is also M+S rated for mud and snow use.

What is the load capacity of the BFGoodrich KO3 19117?
The LT315/75R16 Load Range E KO3 has a maximum single load capacity of 3,860 lbs at 65 psi maximum inflation pressure. This is a Load Range E2 designation, providing heavy-duty load support for full-size and mid-size trucks and SUVs.

What rim width is recommended for the BFGoodrich KO3 LT315/75R16?
Part 19117 is rated for rim widths of 8.0 to 11.0 inches. Using a rim within this range ensures proper bead seating, handling characteristics, and tread wear. The tire should not be mounted on rims outside this specification.

Does the BFGoodrich KO3 19117 fit a Jeep Wrangler JK or JL?
Yes. LT315/75R16 is a popular size for Jeep Wrangler JK (2007 to 2018) and JL (2018 to present) builds with 16-inch wheels. Most JK and JL builds require a 2-inch or greater lift to clear this size without rubbing, depending on rim offset and width. Always verify clearance for your specific lift and wheel configuration.

What is the difference between the BFGoodrich KO3 LT315/75R16 and LT285/75R17?
The LT315/75R16 (part 19117) is larger at 34.6 inches in overall diameter with a 12.4-inch section width, designed for 16-inch wheels. The LT285/75R17 (part 30398) measures 33.8 inches in overall diameter with a 11.2-inch section width, designed for 17-inch wheels. The 315/75R16 provides a larger contact patch and greater sidewall height, which is preferred for serious off-road and rock crawling use.

Does the BFGoodrich KO3 LT315/75R16 come with a treadwear warranty?
Yes. BFGoodrich backs part 19117 with a 50,000-mile treadwear limited warranty. Warranty details are available through authorized BFGoodrich dealers.

What is the speed rating on the BFGoodrich KO3 19117?
Part 19117 carries an S speed rating, corresponding to a maximum speed capability of 112 mph under standardized testing conditions. This is not a recommended cruising speed and is only a structural rating of the tire's high-speed capability.

Is the BFGoodrich KO3 LT315/75R16 good for highway driving?
Yes. Despite its aggressive all-terrain tread pattern, the KO3 is designed to balance off-road capability with on-road stability and comfort. The non-directional symmetric pattern provides predictable handling, and the 50,000-mile warranty reflects BFGoodrich's confidence in the compound's durability during mixed on-road and off-road use.

What CoreGuard protection does the BFGoodrich KO3 LT315/75R16 have?
CoreGuard Technology applies a bruise- and split-resistant rubber compound to the upper sidewall. Derived from BFGoodrich's Baja T/A KR3 race tire technology, it extends further down the sidewall than previous generations of the All-Terrain T/A, offering meaningful additional protection against rocks, roots, and trail debris.
