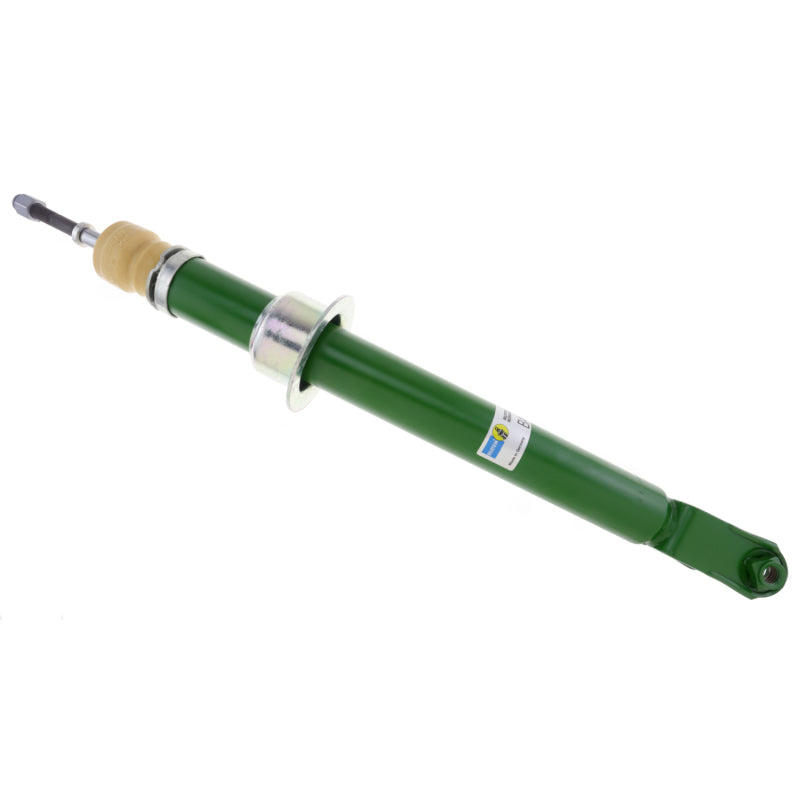

Bilstein B4 OE Replacement DampTronic Front Shock Absorber
This is the Bilstein 20-070854, a direct OE replacement front shock absorber for Jaguar S-Type models originally equipped with factory electronic (CATS) suspension. It restores original ride quality, handling, and damping performance as the factory electronic dampers wear out.
Key Features
- Bilstein 20-070854 uses a 46mm monotube gas-pressure design engineered to work plug-and-play with the factory electronic suspension electronics.
- Green-painted finish with a clevis lower mount and stem upper mount.
- Ships with the spring seat included; no boot included.
- Restores factory-original ride comfort and handling as a direct OE replacement.
- Cross-references Jaguar part numbers XR826829, XR836064, XR843730, XR843732, XR847877, XR852370, XR852372, XR852374, and 2R8318045EC/ED.
Fitment
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003-2004 | Jaguar | S-Type | Base (4.2L V8, with electronic suspension) |
| 2003-2004 | Jaguar | S-Type | R (4.2L V8, with electronic suspension) |
| 2005 | Jaguar | S-Type | Sport (4.2L V8, with electronic suspension) |
| 2006 | Jaguar | S-Type | Base (3.0L V6 or 4.2L V8, with electronic suspension) |
| 2006 | Jaguar | S-Type | VDP Edition (4.2L V8, with electronic suspension) |
| 2006-2008 | Jaguar | S-Type | R (4.2L V8) |
The 20-070854 is a front position unit only. Fits S-Type models originally equipped with factory electronic (CATS) suspension confirm your vehicle has electronic suspension before ordering, since a non-electronic S-Type requires a different shock.
Specifications
| Detail | Value |
|---|---|
| Brand | Bilstein |
| MPN | 20-070854 (cross-references Jaguar 2R8318045EC/ED) |
| Series | B4 OE Replacement (DampTronic) |
| Internal design | 46mm monotube, gas pressure |
| Finish | Green paint |
| Lower mount type | Clevis |
| Upper mount type | Stem |
| Spring seat included | Yes |
| Boot included | No |
| Position | Front |
| UPC | 651860571386 |
| Prop 65 | Yes |
What's Included
- 1 front shock absorber
- Spring seat
About Bilstein
Bilstein builds the B4 OE Replacement (DampTronic) line, including the 20-070854, as direct replacements for factory electronically-controlled dampers, engineered to restore original ride and handling without additional electronic components.
Related Parts
FAQ
What is the 20-070854?
It is a direct OE replacement front shock absorber for Jaguar S-Type models built with factory electronic (CATS) suspension.
Does this fit every Jaguar S-Type?
No. It fits S-Type models originally built with factory electronic (CATS) suspension for the years and trims listed in the fitment table. Confirm your vehicle has electronic suspension before ordering.
Is this a direct replacement for the factory shock?
Yes. It is designed to work plug-and-play with the factory electronic suspension system without additional electronic components.
Does it include a spring seat?
Yes, a spring seat is included with the shock.
Is a boot included?
No boot is included with this shock.
What position is this shock for?
Front position only. A rear-specific shock is required separately for the rear axle.
What is the internal design of this shock?
A 46mm monotube gas-pressure design.
What is the mounting configuration?
Clevis lower mount and stem upper mount.
Does this replace both front shocks?
Order two units to replace both front shocks; this listing is for one front shock absorber.
Installation Instructions
- Raise and support the front of the vehicle on jack stands and remove the front wheel.
- Disconnect the electronic suspension sensor wiring at the strut, if equipped.
- Remove the upper and lower shock mounting hardware per the applicable factory service procedure.
- Remove the factory shock absorber and transfer the spring seat if reused, or use the seat included with this unit.
- Install the new Bilstein shock and torque the upper and lower mounting hardware to the factory specification.
- Reconnect the electronic suspension sensor wiring, reinstall the wheel, and lower the vehicle.
