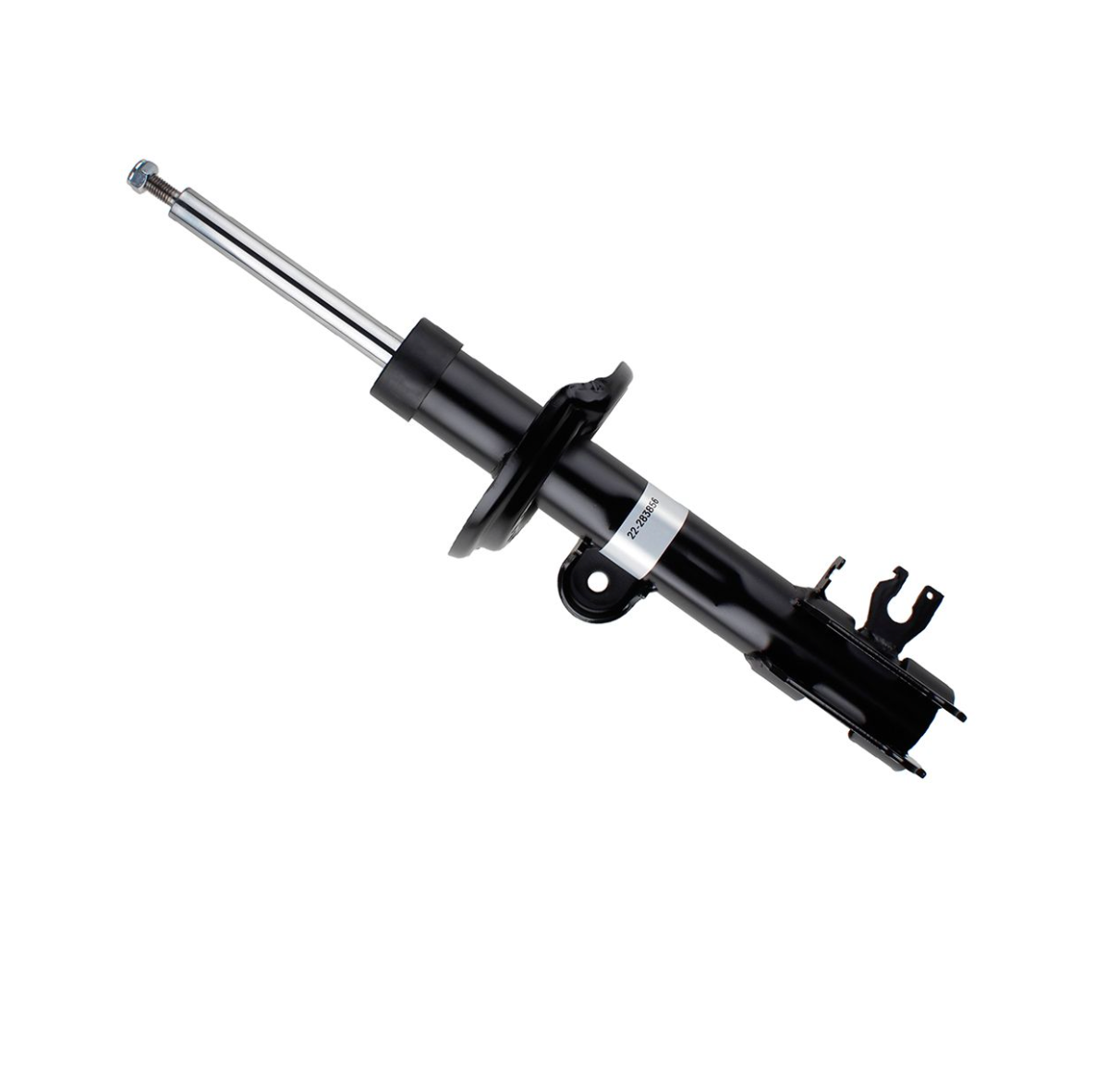

Bilstein 22-335050 B4 front-right strut for Jeep Compass
Click to zoom in
View vehicle applications

Description

Restore factory ride control with an application-specific front-right strut

Bilstein 22-335050 is a B4 OE Replacement suspension strut for the front-right corner of supported 2017-2021 Jeep Compass models. Its twin-tube gas-pressure design, fixed spring seat, and OE-style mounting layout are engineered to restore original ride quality and handling without changing ride height.

Key Features

  • 22-335050 exact B4 OE Replacement front-right strut
  • Twin-tube gas-pressure internal design
  • Fixed spring seat is included
  • Bracket lower mount and stem upper mount
  • Black-painted finish
  • Limited lifetime manufacturer warranty subject to current terms

Application Details and Restrictions

Years Make Model Verified Application and Notes
2017-2021 Jeep Compass Latitude and Limited AWD; front right; 2017 Latitude must be new body style
2017-2020 Jeep Compass Sport AWD; front right; 2017 must be new body style
2017-2021 Jeep Compass Trailhawk Front right
2019-2021 Jeep Compass Altitude AWD; front right
2019-2020 Jeep Compass High Altitude AWD; front right

Specifications

Detail Value
Manufacturer Part Number 22-335050
Series B4 OE Replacement
Position Front right
Product Type Suspension strut assembly
Internal Design Twin-tube
Collapsed Length 15.39 inches / 391 mm
Extended Length 22.85 inches / 580.5 mm
Lower Mount Bracket
Upper Mount Stem
Spring Seat Fixed and included
Boot Included No
Quantity per Vehicle One
California Proposition 65 Warning: Cancer and reproductive harm. See www.P65Warnings.ca.gov.

What's Included

  • One Bilstein 22-335050 front-right suspension strut with fixed spring seat
  • Spring, upper mount, dust boot, bump stop, and vehicle fasteners are not listed as included

About Bilstein

Bilstein B4 OE Replacement dampers are engineered to maintain original ride quality while meeting or exceeding OE performance standards. Each application uses mounting geometry and damping selected for the listed vehicle position.

Related Parts

  • Bilstein 22-335067 matching front-left strut
  • Application-correct upper mount, dust boot, and bump stop inspected during service
  • Professional alignment after front strut replacement

FAQ

What is the 22-335050?

It is one Bilstein B4 OE Replacement suspension strut for the front-right corner of supported Jeep Compass models.

Which model years fit?

Bilstein lists supported Jeep Compass applications from 2017 through 2021, with trim and drivetrain restrictions shown in the fitment table.

Does every Compass fit?

No. The exact trim, AWD requirement, position, and 2017 new-body-style note must match.

Is this the right-side strut?

Yes. Bilstein specifies the front-right position.

Is the spring included?

No. The fixed spring seat is included, but the coil spring is not listed as part of this product.

Is it sold as a pair?

No. Bilstein lists a quantity of one per vehicle for this exact right-side part.

What is the matching left strut?

Bilstein identifies 22-335067 as the paired front-left article.

Is an alignment needed?

A professional alignment should be completed after front strut service and all mounting hardware must be torqued to current Jeep specifications.

Installation Instructions

  1. Confirm the package identifies 22-335050, the exact trim and model year, AWD where required, and the front-right position.
  2. Inspect the front-left damper, mounts, spring, bearing, boot, bump stop, and related suspension joints before disassembly.
  3. Record ride height and alignment, then support the vehicle at approved lift points.
  4. Remove the original front-right strut assembly using the current Jeep service procedure and a suitable spring compressor.
  5. Transfer only serviceable components in their original order and orientation; replace worn one-time-use or damaged parts.
  6. Install the Bilstein strut and torque all fasteners at the suspension position specified by Jeep.
  7. Verify hose, wire, tire, and spring clearance through full steering travel.
  8. Complete an alignment and road-test for noise, controlled damping, and correct steering response.
