A Lower-Profile X-Pipe for Custom Builds

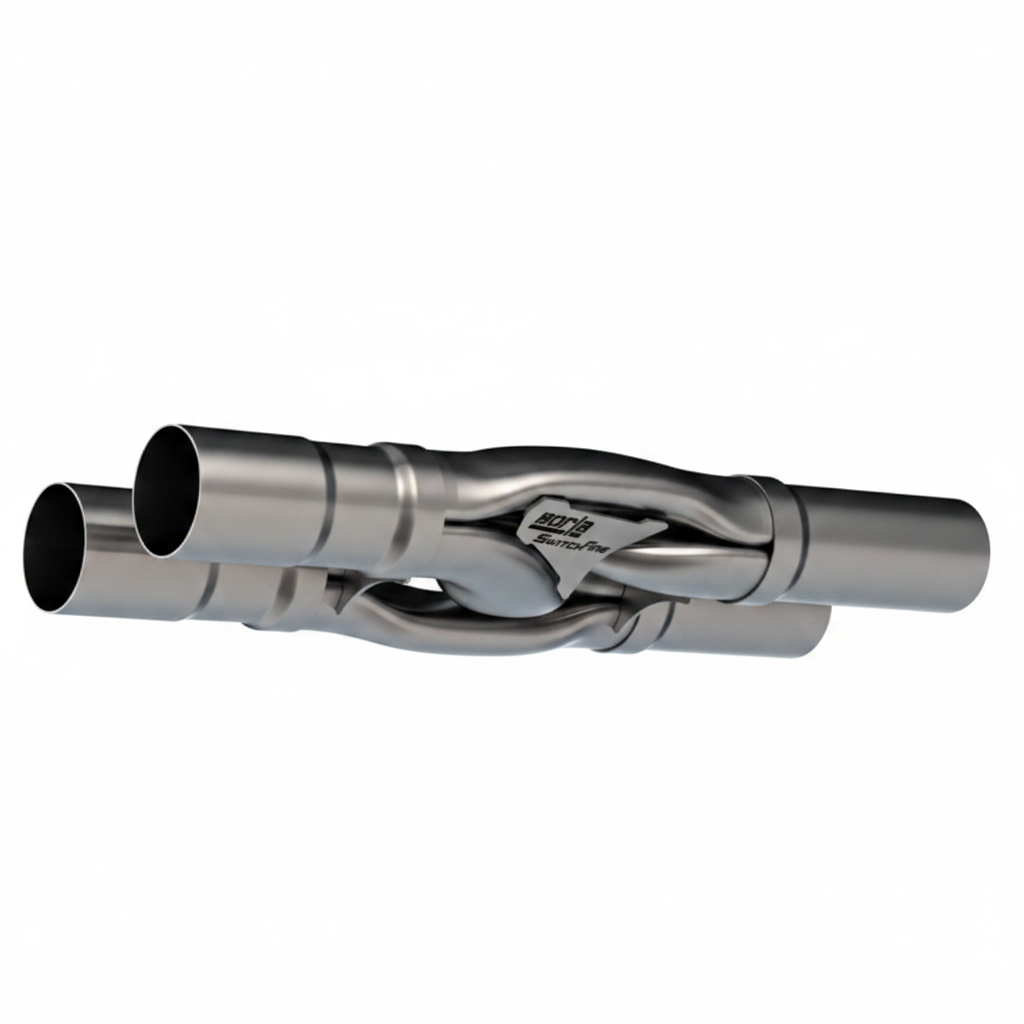

This is the Borla SwitchFire X-Pipe with 2.5in inlets and 2.5in outlets, un-notched, built for fabricators and installers constructing a custom exhaust system. Its hydroformed center section gives it a lower profile than a conventional X-pipe, helping it clear tight undercarriage spaces while blending the combustion pulses from both banks for Borla's SwitchFire tone.
Key Features
- Hydroformed center section for a lower profile than a conventional X-pipe.
- Reversible design for flexible installation orientation.
- Un-notched inlet and outlet necks designed for weld-in installation.
- 4in centerline spacing on inlets and outlets.
Fitment
| Application | Requirements |
|---|---|
| Universal | Custom exhaust builds using 2.5in I.D. inlet and 2.5in O.D. outlet piping |
Specifications
| Detail | Value |
|---|---|
| Brand | Borla |
| Inlet Diameter | 2.5in I.D. |
| Outlet Diameter | 2.5in O.D. |
| Dimensions | 21.1in long x 7.8in wide x 5.5in high |
| Neck Style | Un-notched, weld-in |
| Centerline Spacing | 4in on inlets and outlets |
| Material | Stainless steel |
| Warranty | Million Mile Limited Warranty |
What's Included
- One Borla SwitchFire X-Pipe, 2.5in un-notched
About Borla
Borla manufactures stainless steel exhaust systems and components in the USA, and its SwitchFire technology is engineered to blend combustion pulses from both engine banks for a distinct exhaust tone while maintaining flow.
FAQ
What is the difference between the notched and un-notched version of this X-pipe?
The un-notched version has straight necks designed for weld-in installation, while the notched version has expanded necks designed for clamp-on installation with band clamps.
What size piping does this X-pipe use?
2.5in inner diameter inlets and 2.5in outer diameter outlets.
What are the overall dimensions of this part?
21.1in long by 7.8in wide by 5.5in high.
Can this be installed in either direction?
Yes, it has a reversible design for flexible installation orientation.
Does this fit a specific vehicle?
No, this is a universal component intended for custom exhaust fabrication using 2.5in piping.
What is the centerline spacing on the inlets and outlets?
4in on both the inlet and outlet sides.
Why choose a hydroformed X-pipe over a conventional one?
The hydroformed center section gives this X-pipe a lower profile than a conventional X-pipe, which can help with ground clearance in tight undercarriage installations.
What warranty does Borla provide on this part?
Borla's Million Mile Limited Warranty.
Installation Instructions
- Determine the correct placement of the X-pipe in the custom exhaust build based on the 4in centerline spacing.
- Cut the existing exhaust piping to accept the un-notched inlet and outlet necks.
- Position the X-pipe for proper ground clearance, using the reversible design as needed for the specific installation.
- Weld the inlet and outlet necks to the adjoining exhaust piping.
- Inspect all welds for leaks before returning the vehicle to service.
