Protect High-RPM Oiling With MartenWear Treated Billet Gears

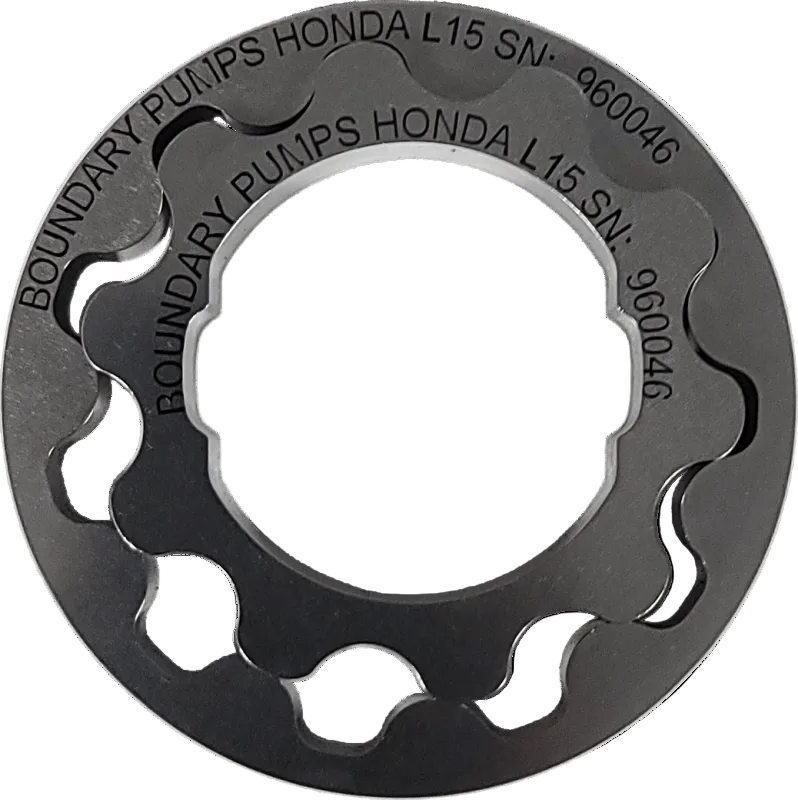

The Boundary L15B7-OPG-M is a billet oil pump gear set built for the Honda L15B7 1.5L turbocharged four-cylinder engine. The L15B7-OPG-M uses MartenWear dual-stage heat treatment so the gears can hold up to sustained operation over 9,000 RPM without the wear that limits a stock or standard billet gear set.
Key Features
- Billet chromoly core for indestructible durability (Boundary L15B7-OPG-M)
- Mirror finished and surface hardened for reduced friction
- Surface ground gears for precise fitment and performance
- Inner and outer gears machined and matched as a set
- Race-inspired gerotor design for improved oil flow and strength
- MartenWear dual-stage heat treatment rated for operation over 9,000 RPM
Fitment
| Year Range | Make | Model | Notes |
|---|---|---|---|
| 2016-2021 | Honda | Civic 1.5T | L15B7 engine, MartenWear treated gear set |
| 2017-2021 | Honda | Civic Si | L15B7 engine, MartenWear treated gear set |
Specifications
| Detail | Value |
|---|---|
| Part Number | L15B7-OPG-M |
| Engine Application | Honda L15B7 1.5L turbocharged I4 |
| Core Material | Chromoly |
| Heat Treatment | MartenWear dual-stage |
| RPM Rating | Rated for sustained operation over 9,000 RPM |
| Gear Design | Matched inner and outer gerotor set |
What's Included
- One Boundary L15B7-OPG-M inner and outer oil pump gear set
- Blueprinting inspection report
About Boundary
Boundary builds billet oil pumps and pump gears for engines under sustained high-RPM and high-load conditions. Each gear set is hand, machine, and hardness inspected before it ships, and the MartenWear treatment line extends that durability further for engines pushed beyond stock RPM limits.
Related Parts
FAQ
What upgrade does this gear set add over the factory oil pump gear?This Boundary oil pump gear set upgrades the factory gear in the Honda L15B7 1.5L turbocharged engine used in the 2016-2021 Civic 1.5T and 2017-2021 Civic Si. The MartenWear dual-stage heat treatment and chromoly core support sustained operation above 9,000 RPM, and each set ships with an inspection report.
What is the difference between this and the standard billet gear set?The M designation adds the MartenWear dual-stage heat treatment rated for sustained operation over 9,000 RPM.
Does this replace the entire oil pump?No, this is a gear set upgrade for the existing oil pump housing.
What vehicles use the L15B7 engine?The L15B7 is used in the 2016-2021 Honda Civic 1.5T and 2017-2021 Civic Si.
Is a blueprinting report included?Yes, each gear set includes an inspection report covering hand, machine, and hardness checks.
Do I need this gear set for a stock daily driver?It is intended for builds operating at higher RPM than stock, though it can be run on any L15B7 application.
What material is the gear core made from?The core is machined from chromoly for durability.
Is professional installation recommended?Yes, professional installation is recommended since it requires oil pump disassembly.
Installation Instructions
- Drain the engine oil and remove the oil pan and oil pump assembly.
- Disassemble the oil pump housing to access the gear set.
- Remove the factory inner and outer gears from the pump housing.
- Install the Boundary L15B7-OPG-M inner and outer gear set in matched orientation.
- Reassemble the oil pump housing and torque all fasteners to specification.
- Reinstall the oil pump and oil pan with new gaskets as needed.
- Refill with fresh engine oil and a new filter.
- Start the engine and confirm oil pressure before returning to normal use.
