BRE Exhaust 96-01 Cherokee 2.5L 4.0L Front Pipe Kit

Direct fit replacement front pipe that bolts in like factory

The BRExhaust 107-0005 Direct Fit Front Pipe Kit by MagnaFlow restores quiet, leak free flow to the 1996 to 2001 Jeep Cherokee XJ with the 2.5L four cylinder or 4.0L inline six engine. Each pipe is mandrel bent from premium stainless steel for cleaner flow than the crush bent factory unit it replaces, and includes the gaskets, U bolt clamps, and spring bolts you need to drop it in on the lift. If your factory front pipe is rotted, cracked at the flange, or causing exhaust drone, this is the no compromise OE replacement.

Why XJ owners choose the BRExhaust 107-0005

• Mandrel bent for smoother flow than crush bent stock pipes
• Stainless steel construction stands up to road salt and time
• Welded hanger pre installed for correct chassis location
• O2 sensor port included for direct factory sensor reuse
• 2 inch inlet with bolt on flange, 2.5 inch outlet with clamp on connection
• Includes spring bolt kit, donut gasket, and 2.5 inch U bolt clamp
• Direct interchange with OE part numbers 52020069, 52101193, 52101193AB, 52101193AC, 52101193AE
• Covered by the BRExhaust two year warranty

Built like the OEM should have been

Factory XJ front pipes are mild steel and develop pinhole leaks and broken flange studs after years of off road duty and northern winters. The 107-0005 swaps in heavier wall stainless with mandrel bends that preserve the full pipe diameter through every curve, restoring flow and quieting the cab. The welded factory hanger drops into the OEM rubber isolator so there is no rattling, no fabrication, and no muffler shop bill.

Fitment

This BRExhaust Direct Fit Front Pipe Kit fits the following Jeep Cherokee XJ models with the 2.5L or 4.0L engine:

• 1996, 1998 to 2001 Jeep Cherokee Classic
• 1996 to 1997 Jeep Cherokee Country
• 1998 to 2001 Jeep Cherokee Limited
• 1996 to 2001 Jeep Cherokee SE
• 1996 to 2001 Jeep Cherokee Sport

Always verify your year, model, and trim against the manufacturer listing before ordering.

Specifications

• Part number: 107-0005
• Material: Stainless steel
• Pipe bend type: Mandrel
• Inlet inside diameter: 2 inch, bolt on flange
• Outlet inside diameter: 2.5 inch, clamp on
• Main piping diameter: 2 inch
• O2 sensor port: Yes
• Welded hanger: Yes
• Clamping type: U bolt
• Warranty: 2 year BRExhaust limited warranty

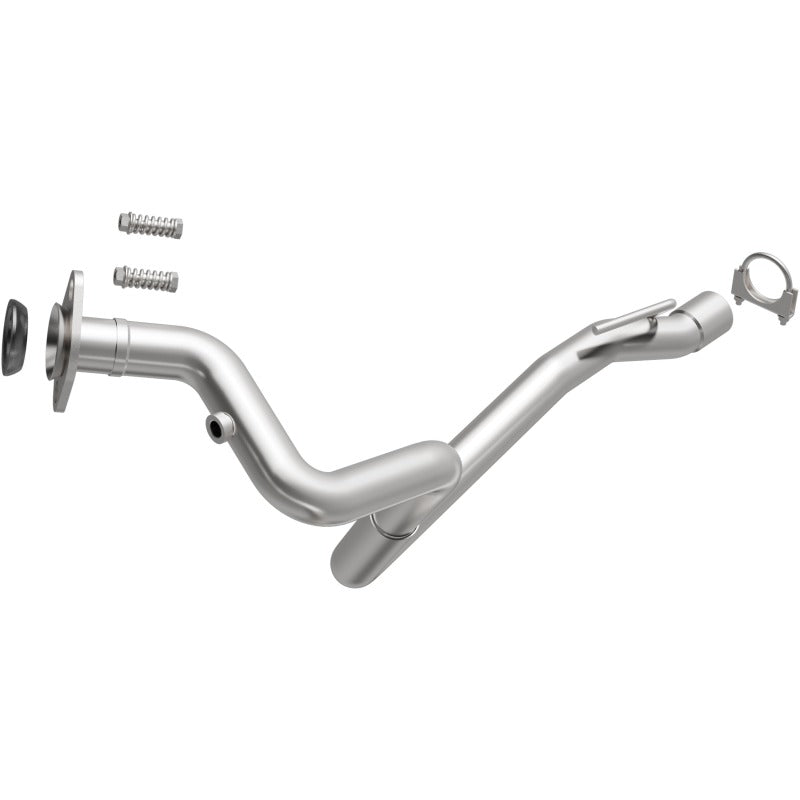

What is in the box

• One BRExhaust 107-0005 stainless steel front pipe
• One spring bolt kit
• One 2.5 inch U bolt clamp
• One donut gasket

Installation Instructions

1. Park the Jeep on a level surface, raise and support the vehicle on jack stands, and allow the exhaust to fully cool before working on it.
2. Unplug the upstream and downstream O2 sensors as required and unbolt them from the factory front pipe to keep them safe and reusable.
3. Remove the factory exhaust hanger rubber isolators from the front pipe hanger, then remove the spring bolts at the manifold flange and the band or U clamp at the rear pipe joint.
4. Drop the original front pipe out from the bottom of the vehicle, taking note of the orientation of the hanger and donut gasket.
5. Compare the new BRExhaust 107-0005 to the factory pipe for length, hanger location, and O2 port location, then transfer the O2 sensors to the new pipe with anti seize on the threads.
6. Lift the new front pipe into position, install the supplied donut gasket at the manifold flange, and start the supplied spring bolts by hand to allow alignment.
7. Slide the 2.5 inch outlet into the rear pipe, install the supplied U bolt clamp, then snug the welded hanger into the factory rubber isolator.
8. Torque the spring bolts evenly to factory spec, fully tighten the U bolt clamp, reconnect the O2 sensors, lower the vehicle, then start the engine and check the entire system for leaks at idle and at light throttle.
