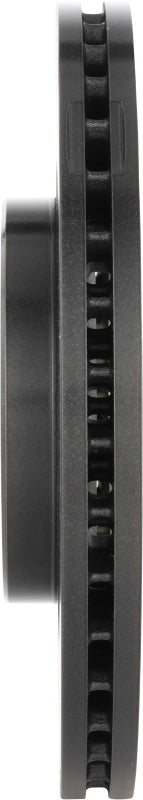

OE-Grade Vented Front Brake Disc Built for the 2019-2022 Mercedes-Benz G550
The BRE09.D761.11 is Brembo's UV Coated OE replacement front brake disc engineered as a direct-fit solution for the 2019-2022 Mercedes-Benz G550. Brembo produces this rotor to meet or exceed OEM specifications in material composition, geometry, and thermal performance, making it the benchmark for G-Class brake restoration. The solvent-free UV coating on the BRE09.D761.11 protects the non-braking surfaces from corrosion and eliminates the solvent discharge associated with conventional rotor coatings. High-carbon cast iron construction where applicable reduces noise and vibration while delivering enhanced stopping consistency that matches the original G550 brake system character.
Key Features
- Engineered as a direct OE replacement for the 2019-2022 Mercedes-Benz G550 front axle
- Solvent-free UV coating protects disc surfaces from rust and corrosion during storage and service
- High-carbon cast iron where applicable minimizes brake noise and vibration
- Vented disc design dissipates heat efficiently under repeated heavy braking
- Meets or exceeds OEM dimensional and performance specifications
- New intelligent part number and minimum thickness markings are laser-etched on the disc
- Includes fixing screw kit with all hardware needed for installation
- Brembo recommends replacing rotors and pads together to restore full braking performance
Fitment
| Year Range | Make | Model |
|---|---|---|
| 2019-2022 | Mercedes-Benz | G550 |
Specifications
| Detail | Value |
|---|---|
| Part Number (MPN) | 09.D761.11 |
| Brand | Brembo OE |
| Position | Front |
| Disc Type | Vented (Self-Ventilating) |
| Disc Diameter | 355 mm |
| Disc Thickness | 32 mm |
| Minimum Thickness | 29.4 mm |
| Hub Height | 56.7 mm |
| Center Bore | 85 mm |
| Coating | UV Coated (Solvent-Free) |
| Units Per Box | 1 |
| EAN (UPC) | 8020584313121 |
| Prop 65 | No |
What's Included
- 1 x Brembo UV Coated front brake disc (BRE09.D761.11)
- Fixing screw kit with all necessary installation hardware
About Brembo OE
Brembo is the world's leading supplier of high-performance braking systems and OE brake components to luxury and performance vehicle manufacturers. Brembo OE replacement parts are produced in the same facilities and to the same tolerances as the original parts installed on vehicles at the factory, giving technicians and enthusiasts access to genuine-grade brake components without dealer-only pricing. The Brembo OE line covers brake discs, pads, calipers, and complete brake systems for European luxury, sports, and utility vehicles.
Related Parts on Our Site
- PowerStop Z26 Street Warrior Brake Kit for Classic Applications
- PowerStop Autospecialty OE Rear Drum Brake Kit
Frequently Asked Questions
What is the BRE09.D761.11?The BRE09.D761.11 is a Brembo OE UV Coated vented front brake disc for the 2019-2022 Mercedes-Benz G550. It is engineered as a direct replacement that meets or exceeds the factory brake disc specifications for the W463 generation G-Class, including disc diameter, thickness, and minimum thickness values.
Does the BRE09.D761.11 fit both G550 engine variants?Yes. The 2019-2022 Mercedes-Benz G550 uses the same front rotor across its 4.0L twin-turbo V8 variants. The BRE09.D761.11 is dimensioned to the W463 platform front brake assembly used throughout the 2019-2022 model range.
What is the disc diameter and thickness of the BRE09.D761.11?The BRE09.D761.11 measures 355 mm in diameter and 32 mm in thickness. The minimum allowable thickness after wear is 29.4 mm, which is etched directly onto the disc face for easy inspection reference.
What does UV Coated mean on a Brembo rotor?UV Coated refers to Brembo's solvent-free ultraviolet-cured protective coating applied to the non-braking surfaces of the rotor. Unlike oil-based coatings, the UV process is environmentally friendly and provides long-term rust and corrosion protection for the hub, hat, and vane sections without leaving residue on the friction surfaces.
Should I replace rotors and brake pads at the same time?Yes. Brembo recommends replacing brake discs and brake pads together to restore full braking performance. Worn pads bedded to an old rotor surface will not properly bed to a new rotor, which can extend the break-in period and reduce initial stopping power. Pair the BRE09.D761.11 with Brembo NAO, ceramic, or low-metallic pad formulations for best results.
Does the BRE09.D761.11 come with installation hardware?Yes. Brembo includes a fixing screw kit with all the necessary hardware for installation. No additional hardware is required for a standard brake disc replacement on the G550.
Is this a single rotor or a pair?The BRE09.D761.11 is sold as a single front brake disc. Order two units if you are replacing both front rotors simultaneously, which Brembo recommends for balanced braking performance on the G550.
What Mercedes G-Class years does this rotor fit?The BRE09.D761.11 fits the 2019 through 2022 Mercedes-Benz G550. Earlier G550 generations (W463.1 and W463.0 pre-refresh) use different front rotor dimensions and are not compatible with this part number.
Is the BRE09.D761.11 compatible with the G-Class G63 AMG?No. The G63 AMG uses a different front brake package with larger calipers and rotors. The BRE09.D761.11 is specific to the G550 standard braking configuration and is not appropriate for AMG variants.
Installation Instructions
- Safely lift and support the vehicle, then remove the wheel.
- Remove the brake caliper and caliper bracket, hanging the caliper to avoid brake line stress.
- Remove the existing brake disc using the Brembo fixing screw if retained.
- Clean the hub face with a wire brush and brake cleaner to remove rust and debris.
- Seat the new BRE09.D761.11 disc on the hub and secure with the included fixing screw.
- Reinstall the caliper bracket and torque to specification.
- Install new brake pads and reinstall the caliper.
- Reinstall the wheel and torque lug bolts to specification.
- Pump the brake pedal until firm before moving the vehicle.
- Perform a proper bed-in procedure using progressive stops from 30 and 50 mph before returning to normal use.
