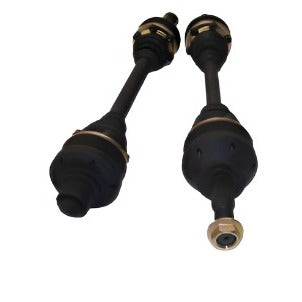

Drive Shaft Shop 510364 Level 5 axles pair installed on C6 Corvette rear
Click to zoom in

Chevrolet Corvette 2009-2013 C6 Direct Bolt-In Level 5 Axles (Pair)

DSS510364
RA5302X5
Axles
Special order, usually ships in 2-3 weeks. However, if the manufacturer has this item in stock we can normally drop ship it directly to you within 3-5 business days. Contact us and we can get you an accurate ETA before placing an order.
$ 1,446.07
$ 1,446.07

SKU: 510364   |   UPC: RA5302X5

Drive Shaft Shop 2009–2013 Corvette C6 Direct Bolt-In Level 5 Axles (Pair)

The Drive Shaft Shop Level 5 Direct Bolt-In Axles (Pair) are a pinnacle upgrade for 2009–2013 Chevrolet Corvette C6 models, forged to conquer torque up to 1,000 HP while averting stock axle breakage in high-stress launches or cornering. Milled from premium 300M chromoly steel with induction-hardened splines for unyielding grip and high-angle CV joints for fluid articulation, this matched pair ensures symmetric power distribution without binding. As a plug-and-play replacement, they amplify traction, hone balance, and safeguard the IRS drivetrain, crucial for LS3/LS7 owners in drag strips, road courses, or track days where fortified rear-end fortitude meets relentless precision and endurance.

Key Features

  • 300M Chromoly Steel: Heat-treated for 1,000 HP capacity and supreme fatigue resistance.
  • Precision-Ground Splines: Zero-slop fit for seamless CV engagement and peak torque hold.
  • Direct Bolt-In Design: OEM-length and mounting for effortless swap without alterations.
  • High-Angle CV Joints: 930-series reinforced for 35+ degrees of flex in IRS setups.
  • Corrosion-Resistant Finish: Black oxide coating for longevity in track or coastal environments.
  • Limited Lifetime Warranty: Against breakage with proper installation.

What's Included

  • (1) Level 5 Left Rear Axle Assembly
  • (1) Level 5 Right Rear Axle Assembly
  • (2) CV Joint Boot Kits
  • (4) Axle Nuts
  • Complete Hardware Kit (circlips, washers)
  • Installation Instructions

Product Notes

  • Pair for complete C6 IRS replacement sold as matched set for balance.
  • Compatible with stock or upgraded differentials ideal for LS3/LS7 swaps.
  • Requires 930-series CVs for maximum articulation.
  • Maintenance: Inspect boots every 10,000 miles grease if repacking.

Installation Notes

  • Bolt-in replacement typically 2-4 hours for pair with jack and tools.
  • Professional installation recommended for diff access and torque.
  • Remove wheels/hubs, extract old axles, insert new pair, torque nuts to spec (approx. 200-250 ft-lbs), test drive.

This Part Fits

Year Make Model Submodel
2009–2013 Chevrolet Corvette Base C6
2009–2013 Chevrolet Corvette Grand Sport C6
2009–2013 Chevrolet Corvette Z06 C6
2009–2013 Chevrolet Corvette Z06 Carbon Edition
2013 Chevrolet Corvette 50th Anniversary Edition

Why Choose Drive Shaft Shop?

  • Industry leader in custom axles since 1989, powering Corvette Challenge winners.
  • Chromoly expertise for C6 IRS with unmatched strength and balance.
  • Lifetime support for Corvette builds with precision engineering.

Frequently Asked Questions

  • Q: What HP rating do these axles support?
  • A: Up to 1,000 HP, suited for tuned LS3/LS7 or supercharged setups.
  • Q: Do they require CV upgrades?
  • A: Recommended for full 1,000 HP features 930-series capability.
  • Q: Are they for independent rear suspension?
  • A: Yes, optimized for C6 IRS not for solid axle conversions.

Shipping & Handling

  • Method: Ground shipping for secure delivery.
  • Availability: Usually ships same day or next if in stock.
  • Packaging: Protective tube with end caps to prevent bending.
