Clutch Masters 07-11 Nissan Sentra Spec V 2.5L Aluminum Flywheel

Shed Half the Rotating Mass and Wake Up the QR25DE

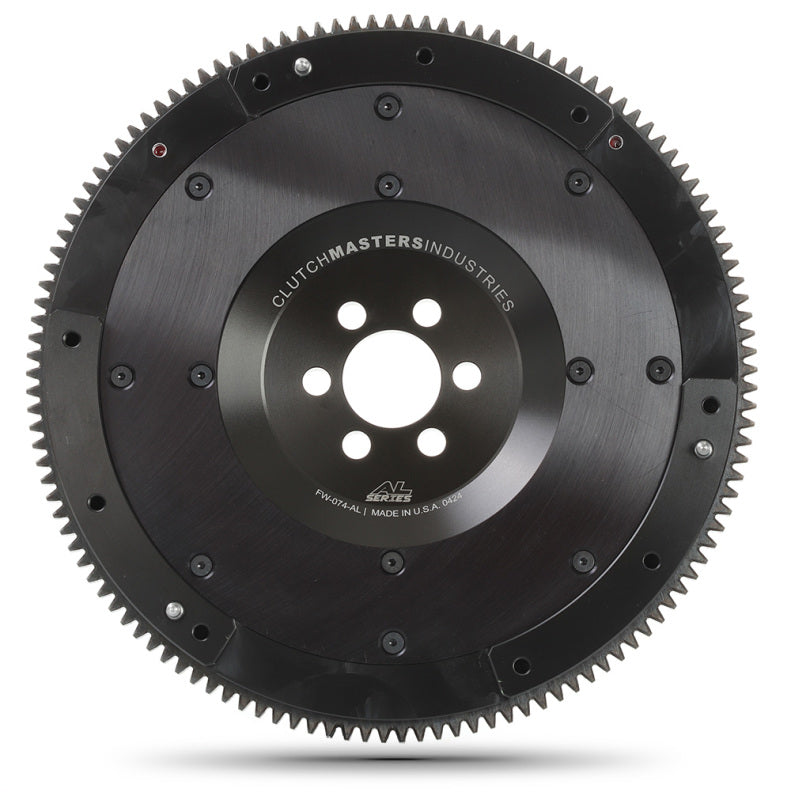

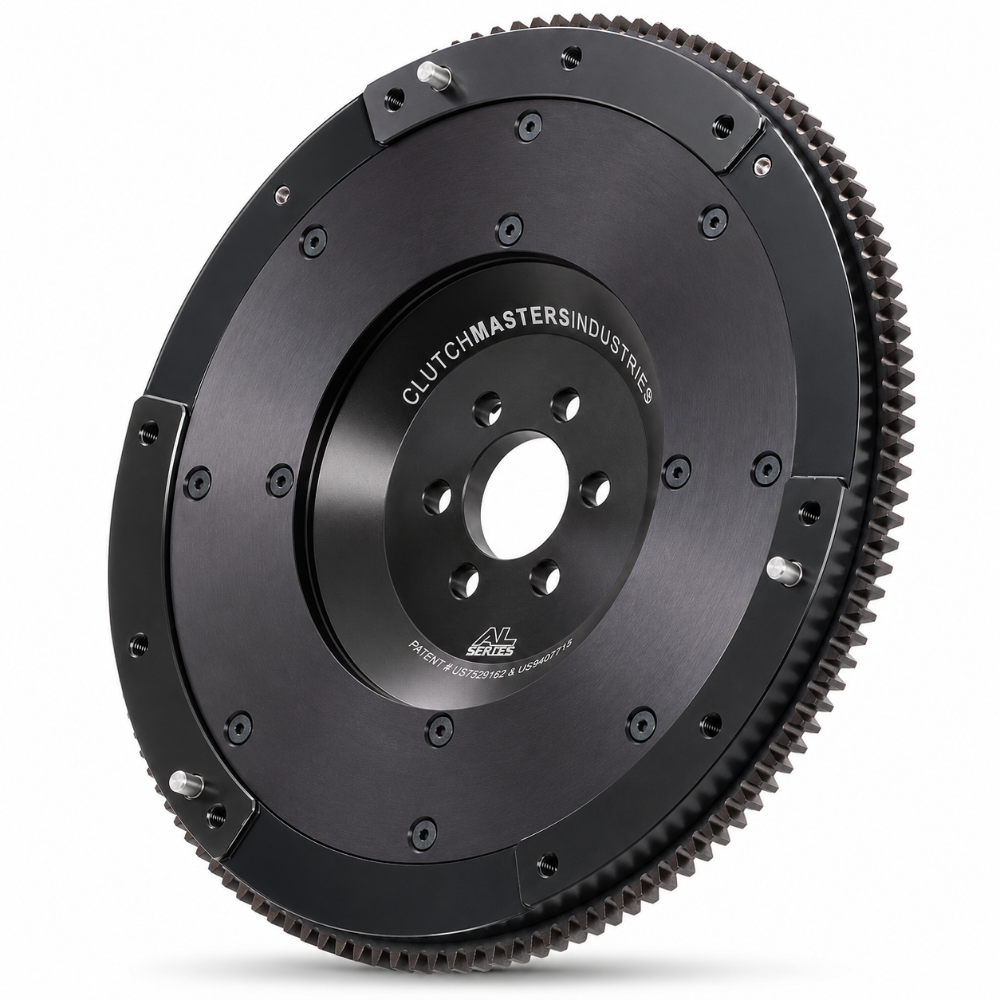

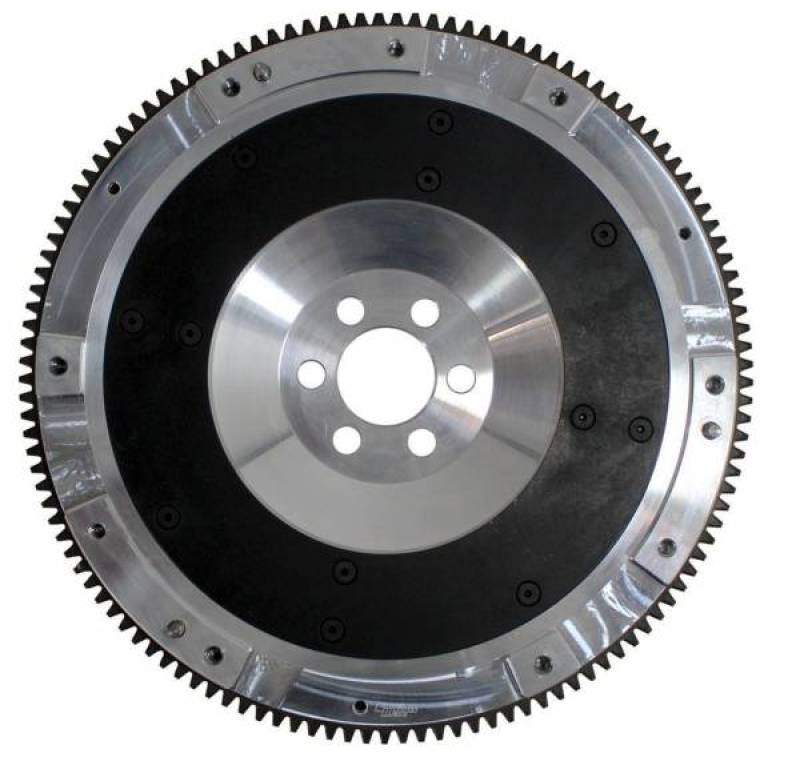

The Clutch Masters FW-074-AL is a CNC-machined 6061 T6 billet aluminum flywheel engineered specifically for the 2007-2012 Nissan Sentra SE-R 2.5L (QR25DE) and the 2007-2012 Nissan Sentra SE-R Spec V 2.5L (QR25DE). It also fits the 2007-2009 Subaru Impreza WRX GT Spec B 2.5L Turbo 6-speed. By replacing the heavy OEM unit with this lightweight aluminum flywheel, the QR25DE spins up faster, throttle response sharpens noticeably, and the drivetrain sheds the inertia that blunts street performance and compromises lap times alike.

Key Features

• CNC-machined from 6061 T6 billet aluminum for precise tolerances and consistent surface contact
• Type 3 hard anodized finish for corrosion resistance and long service life
• Zero balanced from the factory for smooth high-RPM operation
• SFI 1.2 certified for sanctioned competition use
• Significant weight reduction versus OEM flywheel (approximately 8-11 lbs vs. OEM 18-20 lbs) for faster engine response
• Direct bolt-on replacement for OEM dual-mass or standard single-mass flywheel
• Must be paired with a Clutch Masters clutch kit (not compatible with OEM clutch assembly)
• Designed and manufactured in the USA

Note: Aluminum flywheels may produce increased gear noise compared to OEM; recommended for performance and race applications

Specifications

What's Included

• 1x Clutch Masters FW-074-AL Lightweight Aluminum Flywheel
• Manufacturer's installation and torque specification sheet

Fitment

Installation Instructions

Read all steps before beginning. This installation requires transmission removal and should be performed by a qualified technician. Always work on a cool engine with the battery disconnected.

• Step 1 - Gather tools and supplies: You will need a flywheel holding tool for the QR25DE or EJ25 engine, a torque wrench calibrated to at least 65 ft-lbs, new M10x1.25 flywheel-to-crank bolts, and Loctite medium-strength threadlocker (blue, #243 or equivalent).
• Step 2 - Disconnect the battery: Remove the negative terminal to prevent accidental starter engagement during service.
• Step 3 - Support the vehicle: Raise the vehicle on a proper lift or secure jack stands. Never work under a vehicle supported only by a floor jack.
• Step 4 - Remove the transmission: Follow the factory service manual for your application to disconnect the driveshaft or axles, shift linkage, clutch hydraulic line or cable, and all transmission mounts and crossmember bolts. Lower and remove the transmission.
• Step 5 - Remove the old clutch assembly: Lock the flywheel using the holding tool. Loosen the pressure plate bolts in a star/cross-hatch pattern to relieve spring tension gradually. Remove the pressure plate and clutch disc.
• Step 6 - Remove the OEM flywheel: With the holding tool still in place, remove the flywheel-to-crankshaft bolts. Note that some applications use torque-to-yield fasteners; consult the factory service manual. Remove the OEM flywheel.
• Step 7 - Clean the crankshaft flange: Inspect for burrs or scoring and clean the flange surface thoroughly with brake cleaner and a lint-free cloth. Confirm the locating dowel pin is seated correctly if present.
• Step 8 - Prepare fasteners with Loctite: Apply a controlled amount of Loctite medium-strength threadlocker to the threads of each new M10x1.25 flywheel bolt. Do not apply threadlocker to the bolt shank or mating surfaces.
• Step 9 - Mount the aluminum flywheel: Position the lightweight aluminum flywheel onto the crankshaft flange, aligning it with the locating dowel pin. Hand-thread all bolts to confirm proper engagement before torquing.
• Step 10 - Torque flywheel bolts: Using the flywheel holding tool, tighten all M10x1.25 bolts in a star/cross-hatch pattern in two stages: initial pass at 20 ft-lbs, then final pass at 65 ft-lbs. Do not exceed the specified torque value.
• Step 11 - Install Clutch Masters clutch kit: Install only a compatible Clutch Masters clutch kit. Mount the clutch disc on an alignment tool, position the pressure plate, and hand-start all pressure plate bolts. Torque pressure plate bolts (8x1.25mm) in a star/cross-hatch pattern to 20 ft-lbs. Remove the alignment tool.
• Step 12 - Reinstall transmission: Raise the transmission back into position, engaging the input shaft into the clutch disc hub. Reinstall all mounts, crossmember, shift linkage, hydraulic or cable clutch connection, and axles per factory torque specifications.
• Step 13 - Final verification: Reconnect the battery, start the engine, and verify correct clutch engagement and release before road use. Allow the proper clutch break-in period per Clutch Masters instructions and inspect for leaks before returning the vehicle to normal service.

Frequently Asked Questions

Does this flywheel fit the 2008 Nissan Sentra SE-R Spec V?
Yes. This flywheel is designed to fit every model year from 2007 through 2012 for both the Nissan Sentra SE-R and SE-R Spec V with the 2.5L QR25DE engine.

Can I use an OEM clutch disc and pressure plate with this aluminum flywheel?
No. This flywheel is engineered for use with Clutch Masters clutch kits only. The friction surface geometry and clamp load requirements are matched to Clutch Masters pressure plates. Using an OEM clutch with this flywheel can result in premature wear or clutch failure.

How much lighter is this flywheel than the OEM unit?
This flywheel weighs approximately 8 to 11 lbs, compared to a typical OEM flywheel at 18 to 20 lbs. The reduction in rotating mass improves throttle response and lets the engine rev more freely throughout the powerband.

Is this flywheel SFI certified?
Yes. This flywheel carries an SFI 1.2 certification, making it legal for use in many sanctioned drag racing and road racing events that mandate SFI-rated flywheel assemblies.

Will an aluminum flywheel cause noise or vibration in a Nissan Sentra SE-R?
Aluminum flywheels can produce increased gear noise or rattle at idle and low RPM compared to a heavier OEM cast iron flywheel. This is an expected characteristic of lightweight single-mass aluminum flywheels and does not indicate a defect. This product is intended for performance and competition use where this trade-off is acceptable.

Does this flywheel fit the 2007-2009 Subaru Impreza WRX GT Spec B?
Yes. Per Clutch Masters fitment data, this flywheel also fits the 2007, 2008, and 2009 Subaru Impreza WRX GT Spec B 2.5L Turbo with the 6-speed manual transmission.

What is the correct torque specification for the flywheel-to-crank bolts on the Nissan Sentra?
Torque the M10x1.25 flywheel-to-crank bolts to 65 ft-lbs using a two-stage process: initial pass at 20 ft-lbs, then final pass at 65 ft-lbs in a star/cross-hatch pattern. Apply Loctite medium-strength threadlocker to all bolt threads before installation.

Where is this flywheel manufactured?
This flywheel is designed and manufactured in the United States by Clutch Masters using domestically sourced 6061 T6 billet aluminum stock.

What is a Type 3 hard anodized finish and why does it matter?
Type 3 hard anodizing produces a dense, wear-resistant aluminum oxide layer that is significantly harder than standard anodizing. It provides strong resistance to heat, abrasion, and corrosion inside the clutch bell housing environment, extending the service life of the flywheel under demanding driving conditions.

California Proposition 65 Warning

WARNING: This product can expose you to chemicals including aluminum compounds and metal friction materials, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit www.p65warnings.ca.gov.

Warranty

Clutch Masters warrants this flywheel against defects in materials and workmanship under normal use and service conditions. As a powertrain drivetrain component, this product is subject to the protections afforded by the Magnuson-Moss Warranty Act. Installation of this flywheel alone does not void your vehicle's factory warranty on unrelated systems. Warranty claims must be submitted directly to Clutch Masters with proof of purchase and installation documentation. Coverage does not extend to damage caused by improper installation, misuse, racing abuse, or use with non-compatible clutch components. Contact Black Ops Auto Works or Clutch Masters directly for specific warranty terms and claim procedures.
