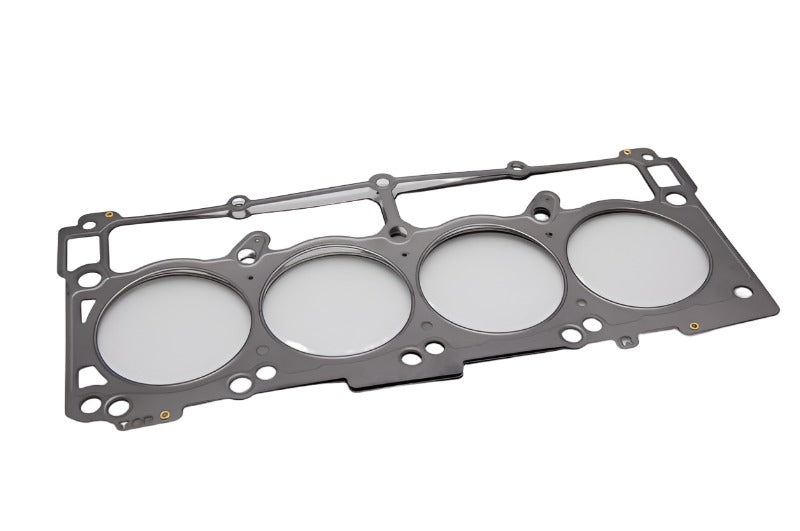

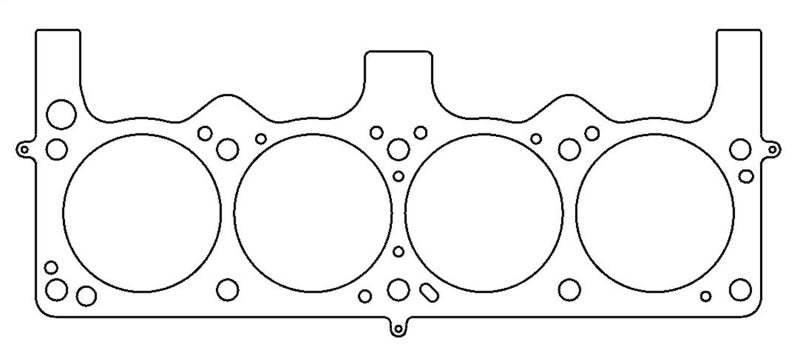

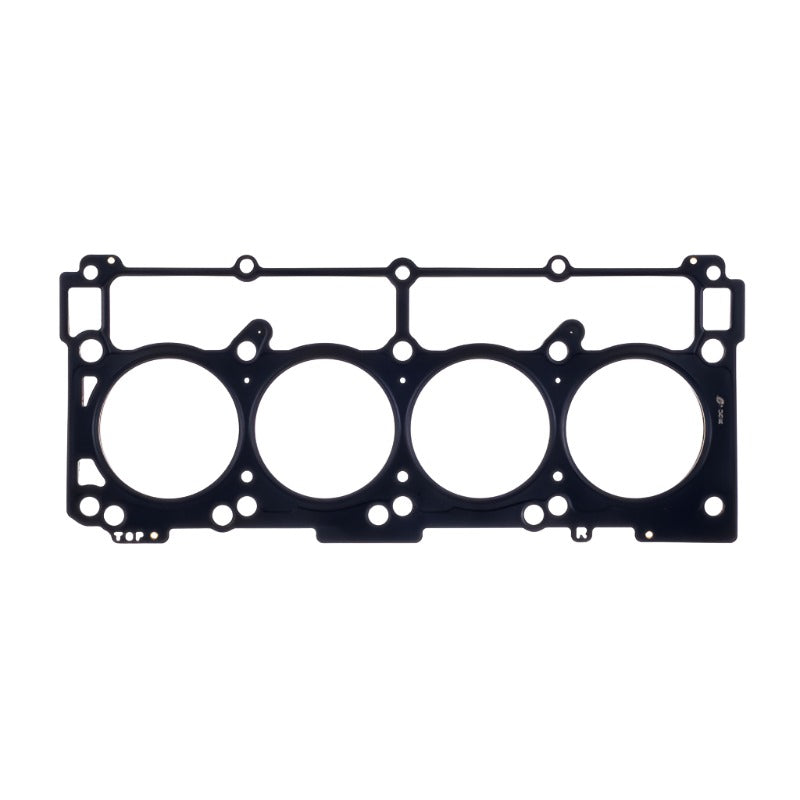

Cometic Dodge 5.7L Hemi 3.950in Bore .070in MLS RHS Head Gasket Cometic Gasket
Cometic Dodge 5.7L Hemi 3.950in Bore .070in MLS RHS Head Gasket Cometic Gasket
Cometic Dodge 5.7L Hemi 3.950in Bore .070in MLS RHS Head Gasket Cometic Gasket
Click to zoom in

Cometic Dodge 5.7L Hemi 3.950in Bore .070in MLS RHS Head Gasket

CGSC5467-070
191070128241
Head Gaskets
3 Units In Stock - Ships Next Business Day
$ 156.31 $ 140.68
$ 140.68

CHRYSLER 5.7L GEN-3 HEMI .070" MLS CYLINDER HEAD GASKET, 3.950" BORE, RHS

PART NO: C5467-070
UPC NO: 191070128241

Material: MLS
Compressed Thickness: .070
Bore Shape: Round
Bore Size (IN): 3.950
# of layers: 5
Orientation: Right

FIBER / METAL LAMINATESFIBER, CORK, RUBBER

Reinforced gasket material compounds like armor-clad, graphite and galvanized steel constructed for sealing irregular surfaces.

Armor Ply

ARMOR PLY

High-Performance metal reinforced gasket material that is designed for sealing irregular surface flanges in high heat applications. It features a steel layer on one side with a graphite layer on the other and a fiber layer between. 649C (1200F).

Available Thickness: .094

Armor Clad

ARMOR CLAD

High-Performance metal reinforced gasket material. Designed for sealing irregular surface flanges in high heat applications. It features a steel layer on one side with a graphite layer on the other and a fiber layer between. 649C (1200F).

Recommended Use: Exhaust Gaskets, Turbo Flange Gaskets

Thickness: .042, .064

HTS Fiber

HTS FIBER

HTS Fiber features a graphite/fiber blend mechanically bonded to a perforated stainless steel core. The facing material features 75% graphite with Kevlar fiber reinforcements for strength and durability. Short duration max temp 760C (1400F).

Recommended Use: Intake Gaskets, Exhaust Gaskets, Turbocharger Gaskets

Thickness: .060

CFM-20

CFM-20

Tanged and galvanized steel core. An asbestos-free soft material compound containing aramid fibers, inorganic fillers, and high-grade binder elastomers is applied to both sides of the core.

Thickness: .043, .051, .059



This Part Fits:

Year Make Model Submodel
2005-2015 Chrysler 300 C
2013-2014 Chrysler 300 C Luxury
2015 Chrysler 300 C Platinum
2010,2012-2015 Chrysler 300 S
2007-2009 Chrysler Aspen Limited
2009-2015 Dodge Challenger R/T
2012 Dodge Challenger R/T Classic
2015 Dodge Challenger R/T Plus
2006 Dodge Charger Daytona R/T
2012-2015 Dodge Charger Pursuit
2006-2015 Dodge Charger R/T
2015 Dodge Charger R/T Road & Track
2008-2013 Dodge Charger SE
2006-2008 Dodge Durango Adventurer
2011-2015 Dodge Durango Citadel
2011-2013 Dodge Durango Crew
2004-2009,2014-2015 Dodge Durango Limited
2011-2015 Dodge Durango R/T
2009 Dodge Durango SE
2004-2009 Dodge Durango SLT
2012-2015 Dodge Durango Special Service
2005 Dodge Durango ST
2007 Dodge Durango SXT
2005-2008 Dodge Magnum R/T
2003-2010 Dodge Ram 1500 Laramie
2003-2010 Dodge Ram 1500 SLT
2006-2007,2009-2010 Dodge Ram 1500 Sport
2003-2010 Dodge Ram 1500 ST
2008 Dodge Ram 1500 SXT
2009-2010 Dodge Ram 1500 TRX
2006-2007,2009-2010 Dodge Ram 1500 TRX4
2003,2005-2010 Dodge Ram 2500 Laramie
2006-2010 Dodge Ram 2500 Power Wagon
2003-2010 Dodge Ram 2500 SLT
2006-2007 Dodge Ram 2500 Sport
2003-2010 Dodge Ram 2500 ST
2008-2010 Dodge Ram 2500 SXT
2010 Dodge Ram 2500 TRX
2006-2007 Dodge Ram 2500 TRX4
2003-2009 Dodge Ram 3500 Laramie
2003-2009 Dodge Ram 3500 SLT
2006-2007 Dodge Ram 3500 Sport
2003-2009 Dodge Ram 3500 ST
2008-2009 Dodge Ram 3500 SXT
2014-2015 Jeep Cherokee Limited
2006-2010 Jeep Commander Limited
2007-2009 Jeep Commander Overland
2010 Jeep Commander Sport
2010-2013 Jeep Grand Cherokee Laredo
2005-2015 Jeep Grand Cherokee Limited
2006-2009,2011-2015 Jeep Grand Cherokee Overland
2012 Jeep Grand Cherokee Overland Summit
2014-2015 Jeep Grand Cherokee Summit
2011-2015 Ram 1500 Big Horn
2012-2015 Ram 1500 Express
2011-2015 Ram 1500 Laramie
2014-2015 Ram 1500 Laramie Limited
2011-2015 Ram 1500 Laramie Longhorn
2015 Ram 1500 Limited
2014-2015 Ram 1500 Lone Star
2011-2015 Ram 1500 Outdoorsman
2013 Ram 1500 R/T
2015 Ram 1500 Rebel
2011-2015 Ram 1500 SLT
2014-2015 Ram 1500 Special Service
2011-2015 Ram 1500 Sport
2011-2012 Ram 1500 ST
2011-2015 Ram 1500 Tradesman
2012 Ram 1500 Tradesman HD
2013-2015 Ram 2500 Big Horn
2011-2015 Ram 2500 Laramie
2014-2015 Ram 2500 Laramie Limited
2011-2015 Ram 2500 Laramie Longhorn
2013-2015 Ram 2500 Lone Star
2012-2015 Ram 2500 Outdoorsman
2011-2013 Ram 2500 Power Wagon
2011-2015 Ram 2500 SLT
2011-2013 Ram 2500 ST
2013-2015 Ram 2500 Tradesman
2013-2015 Ram 3500 Big Horn
2011-2015 Ram 3500 Laramie
2014-2015 Ram 3500 Laramie Limited
2013-2015 Ram 3500 Laramie Longhorn
2013-2015 Ram 3500 Lone Star
2011-2015 Ram 3500 SLT
2011-2013 Ram 3500 ST
2013-2015 Ram 3500 Tradesman
