SKU: 8101 | UPC: 710353081013

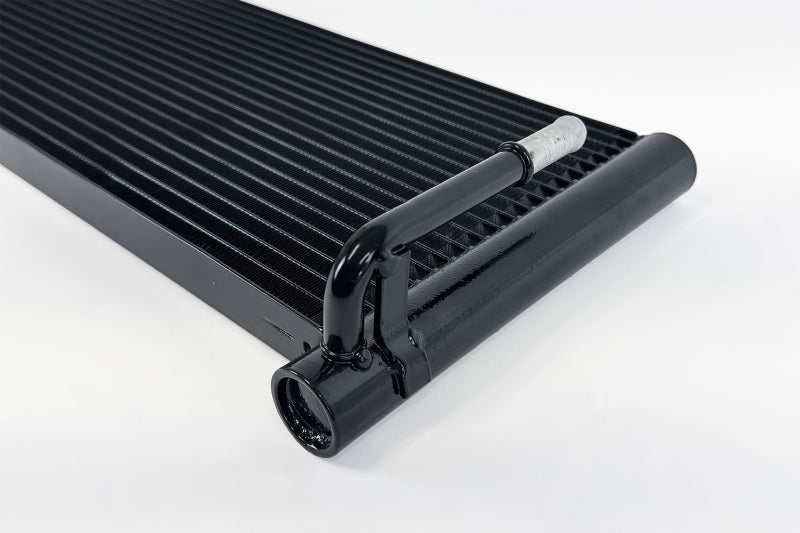

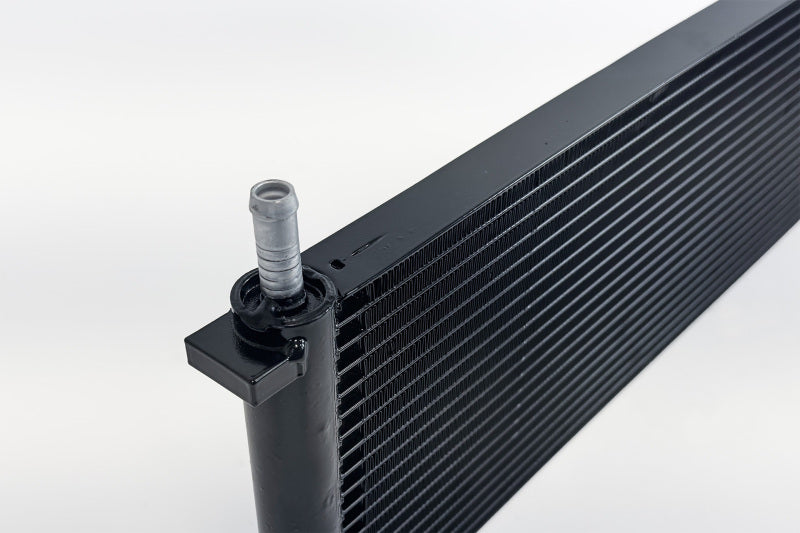

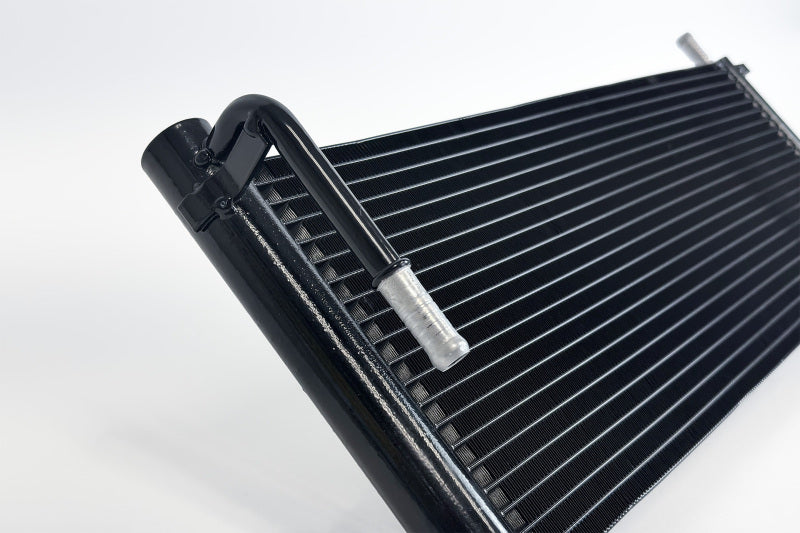

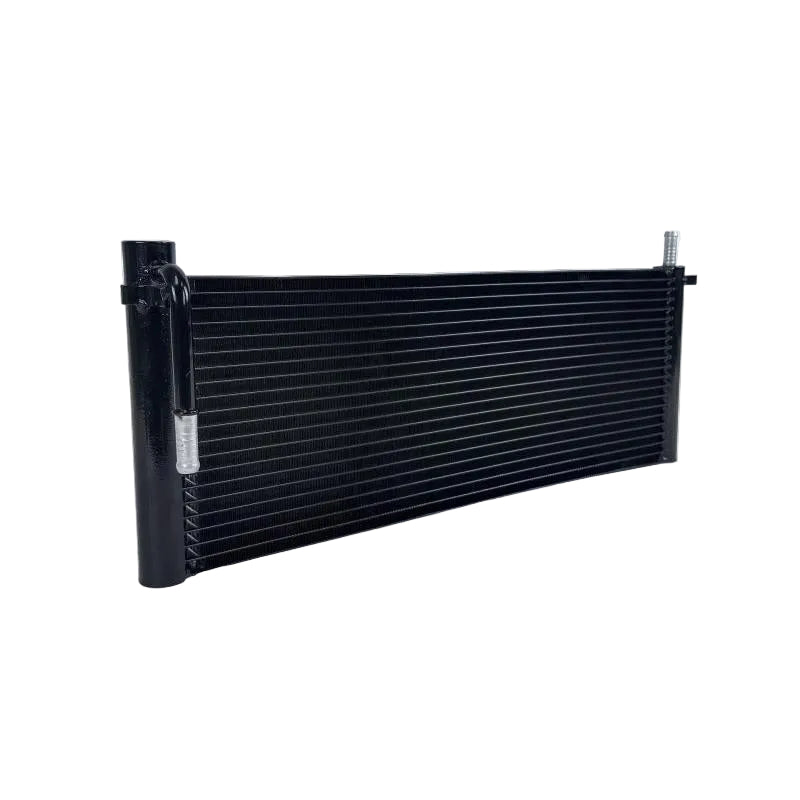

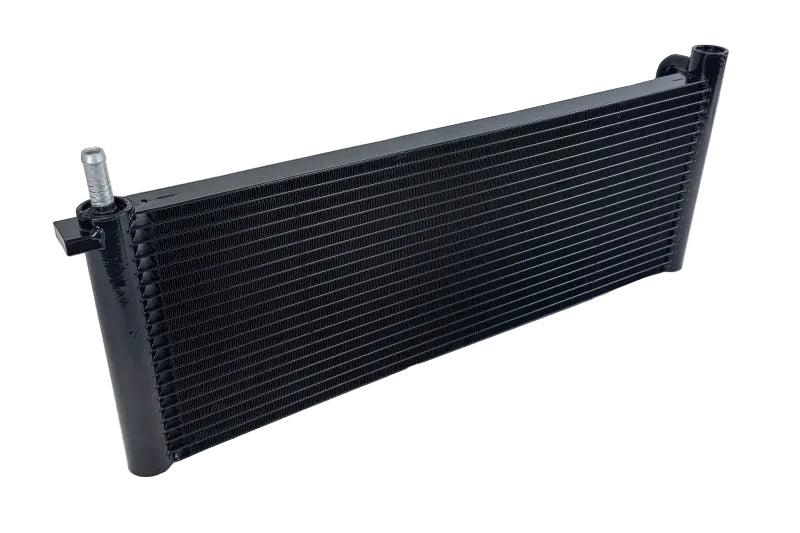

CSF 2009-2014 Ford F-150 and Raptor Transmission Oil Cooler
The CSF 8101 transmission oil cooler provides dependable cooling for 2009-2014 Ford F-150 SVT Raptor 2007-2014 Expedition and 2007-2015 Lincoln Navigator models. This all-aluminum stacked-plate unit manages extra heat from towing larger tires or off-road demands while holding automatic transmission fluid at optimal levels. It prevents fluid breakdown to support smooth shifts and longer transmission life under demanding conditions.
Key Features
- 10-Row Stacked Plate Core: Delivers 30,000 BTU cooling with 10.3 x 7.9 x 1.25-inch dimensions for effective heat rejection in compact radiator locations.
- Tube-and-Fin Construction: Full 6061 aluminum build fights corrosion and keeps ATF under 180°F during heavy towing track or off-road sessions.

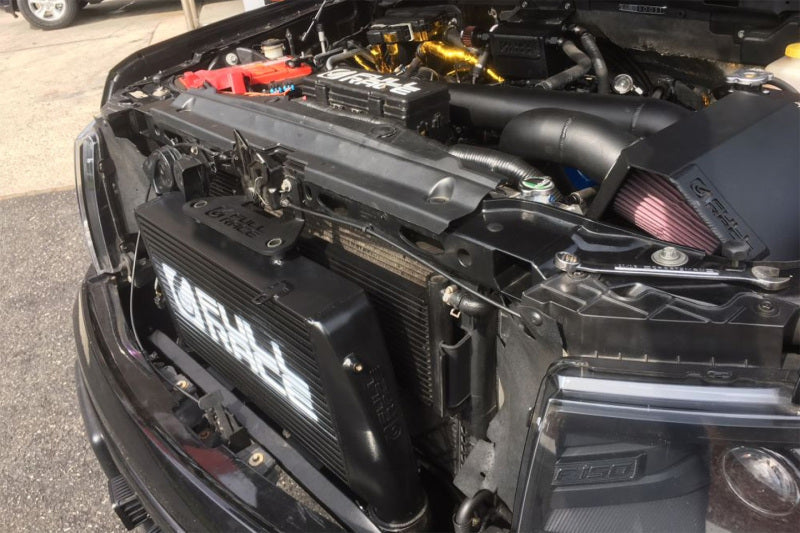

- Direct-Fit Design: Mounts ahead of radiator using OEM fittings and brackets on F-150 Raptor Expedition and Navigator with no cutting or fabrication.
- High-Flow Bypass: Maintains unrestricted fluid flow for 6R80 or stock transmissions ensuring consistent pressure and cooling.
- Pressure-Resistant End Tanks: Withstands 250 PSI to avoid leaks from towing high-speed or boosted applications.
Product Notes
- Pair with CSF ATF to preserve fluid properties under heat.
- Flush transmission prior to install to clear debris.
- Ships in foam packaging to protect fins during transit.
Installation Notes
- Professional installation recommended.
- Remove factory cooler lines and use 3/8-inch barbed hose fittings.
- Mounts to radiator brackets with supplied hardware kit.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2009-2014 | Ford | F-150 | FX2 FX4 Harley-Davidson Edition King Ranch Lariat Lariat Limited Limited Platinum STX SVT Raptor XL XLT |
| 2007-2014 | Ford | Expedition | Eddie Bauer EL Eddie Bauer EL King Ranch EL Limited EL XLT Funkmaster Flex Edition King Ranch Limited XL XLT |
| 2007-2015 | Lincoln | Navigator | Base L L Luxury L Reserve L Select L Ultimate Luxury Reserve Select Ultimate |
Why Choose CSF?
- Over 75 years in cooling technology supplying OE parts to major automakers.
- Proven in drag racing off-road rallies and endurance events.
- Engineered to factory dimensions for direct bolt-on performance.
Frequently Asked Questions
-
Q: Will this fit my 2010 F-150 SVT Raptor with stock transmission?
A: Yes CSF 8101 bolts to 2009-2014 F-150 Raptor radiator supports and connects to 6R80 lines without adapters. -
Q: What materials are used in construction?
A: Full 6061 aluminum with brazed tube-and-fin core and stamped end tanks for strength and heat transfer. -
Q: Does it include a warranty?
A: Covered by CSF limited lifetime warranty against defects with proper installation.
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: 15 x 11 x 3 inch box with foam inserts
- Weight: 6 lbs
