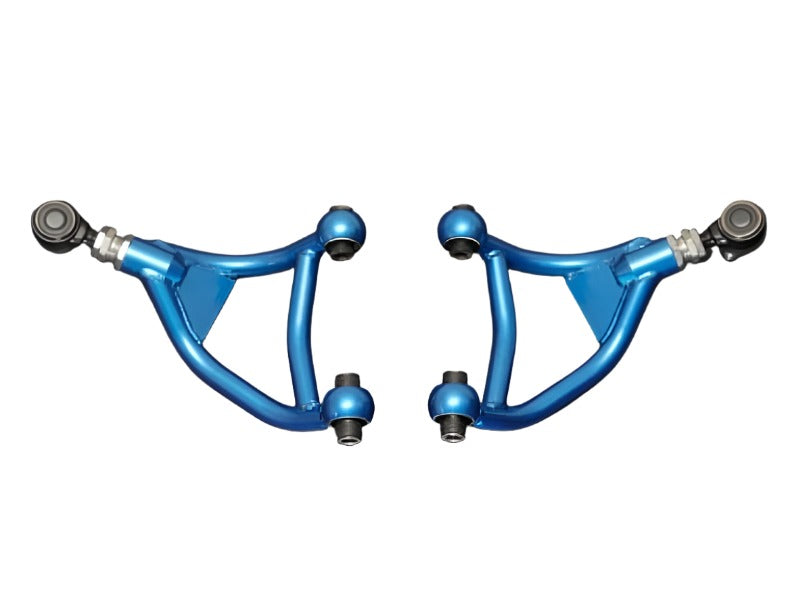

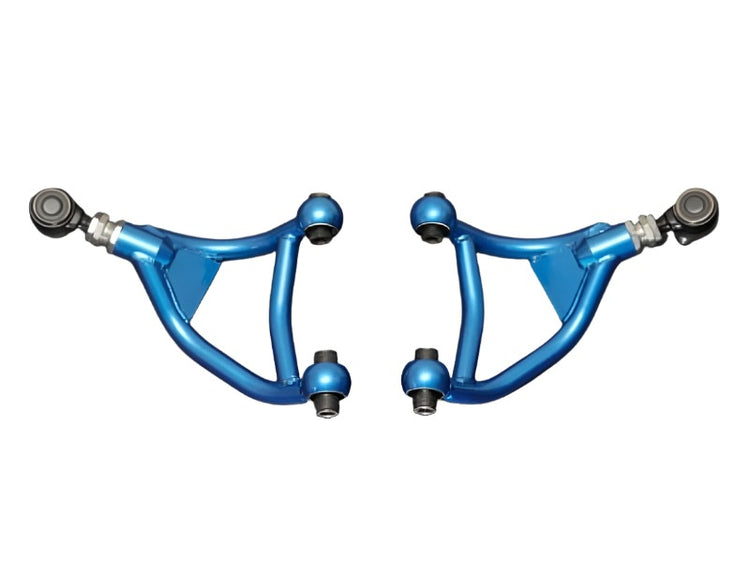

Cusco 2013+ Subaru BRZ / 2017+ Toyota 86 Adjustable Rear Upper Control Arm (Special Order No Cancel)

Cusco
CUS965 474 L
4996338024466
Control Arms
8 Units In Stock - Ships Next Business Day
$ 760.00 $ 684.00
$ 684.00

SKU: 965 474 L | UPC: 4996338024466

Cusco 2013+ Subaru BRZ / 2017+ Toyota 86 Adjustable Rear Upper Control Arm (Special Order No Cancel)

The Cusco Adjustable Rear Upper Control Arm delivers precise camber adjustment for 2013 and later Subaru BRZ models and 2017 and later Toyota 86 models. Built with spherical bearings and a turnbuckle design this part corrects alignment issues on lowered suspensions improving tire wear and cornering stability. Track enthusiasts rely on it for sharper turn-in and consistent rear-end traction during aggressive driving.

Key Features

  • Adjustable Turnbuckle Design: Provides 20mm of adjustment range allowing up to 2.5 degrees of negative camber for optimal tire contact and reduced sidewall roll
  • Spherical Pillow Ball Bearings: Eliminate bushing deflection for direct precise suspension feedback and zero play under high lateral loads
  • Aluminum Body with Steel Shaft: Lightweight at 2.65 lbs yet rigid construction resists flex during hard cornering
  • Anodized Finish: Corrosion-resistant coating withstands track abuse road salt and harsh weather for long-term durability
  • Direct Bolt-On Fit: Replaces OEM arm using factory mounts no fabrication required for quick setup

Product Notes

  • Special order item no cancellations or returns accepted once ordered
  • Alignment required post-installation to dial in camber settings
  • Ships in protective box measuring 14 x 7 x 4 inches

Installation Notes

  • Professional installation recommended.
  • Torque to Cusco specs 55-65 Nm on pillow ball nuts
  • Compatible with OEM hardware and aftermarket coilovers

This Part Fits

Year Make Model Submodel
2013-2020 Subaru BRZ All
2017-2020 Toyota 86 All

Why Choose Cusco?

  • Proven in Japanese motorsports like Super GT and rally
  • Precision CNC-machined components from high-grade materials
  • Engineered for street and track demands with real-world testing

Frequently Asked Questions

  • Q: What vehicles does this fit beyond BRZ and 86?
    A: Direct fit for ZN6 chassis including 2013-2016 Scion FR-S all trims due to identical rear suspension geometry
  • Q: What materials are used?
    A: 6061 aluminum bracket 4130 steel shaft and 52mm spherical bearings with Teflon liners for smooth low-friction operation
  • Q: Is warranty included and what about install?
    A: 1-year manufacturer defect warranty requires professional install and proof of alignment within 100 miles

Shipping & Handling

  • Method: UPS Ground or FedEx
  • Availability: Special order ships 4-6 weeks upon manufacturer confirmation
  • Packaging: Secure foam-lined box 14 x 7 x 4 inches
  • Weight: 2.65 lbs
