SKU: 949 477 A | UPC: 4996338949752

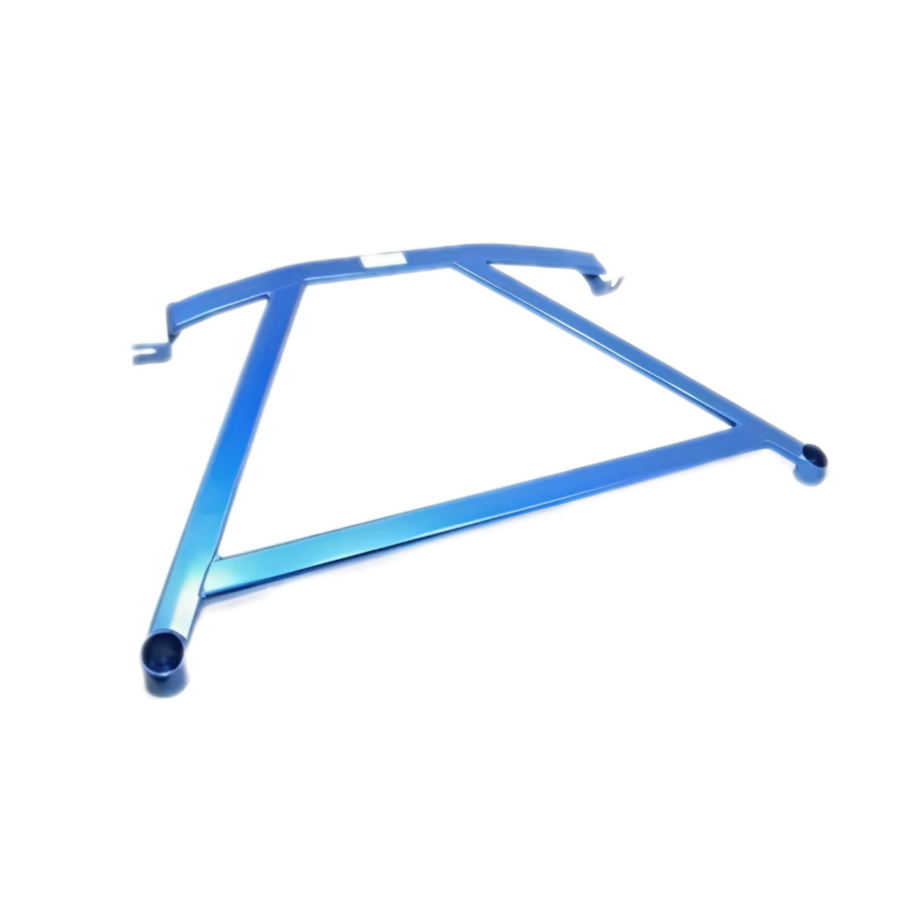

Cusco Lower Arm Bar Ver II 4 Points for Toyota Prius C Aqua Yaris Vitz NCP91 NHP10 2005-2015

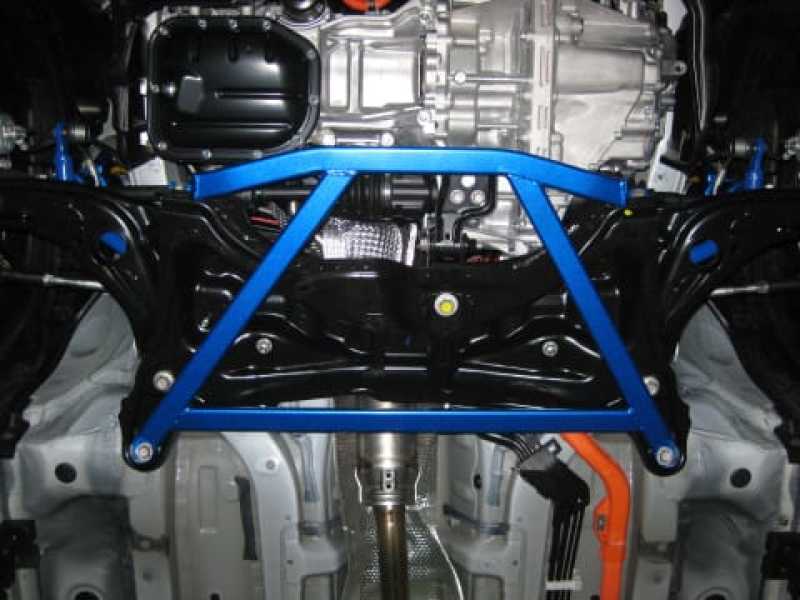

The Cusco Lower Arm Bar Ver II connects left and right front lower control arms at four points to the chassis for direct rigidity gains. It sharpens turn-in response and reduces body roll on twisty roads or daily drives for Toyota Prius C, Aqua, Yaris, and Vitz models. Drivers notice improved steering feel and stability with this bolt-on upgrade that maintains ride quality.
Key Features
- 4-Point Design: Links lower arms to chassis at two points per side for broader load distribution and enhanced triangulation over Ver I
- High-Tensile Aluminum: Tubular 6061-T6 grade construction weighs just 4.5 lbs (2.0 kg) for lightweight strength without added mass
- Anti-Corrosion Finish: Durable blue powder coating resists rust for long-term performance on street or track
- Bolt-On Installation: Uses factory mounting points with no drilling, cutting, or welding required, typically under 1 hour with basic tools
- Precise Dimensions: 28 inches (710 mm) length x 1.5 inches (38 mm) tubing diameter fits NCP91 and NHP10 chassis exactly
Product Notes
- Ver II cannot install with Cusco Ver I Lower Arm Bar 900 475 AN due to mounting conflicts
- Verify chassis code NHP10 or NCP91 before purchase for exact fit
- Ships in 32 x 6 x 4 inches (81 x 15 x 10 cm) box, handling weight approximately 5.5 lbs
Installation Notes
- Professional installation recommended.
- Reuse OEM rubber isolators for vibration dampening, no extra bushings needed
- Torque M10 bolts to 50-70 Nm using included high-tensile steel hardware and brackets
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2012-2015 | Toyota | Prius C | NHP10 (U.S. spec) |
| 2011-2015 | Toyota | Aqua | NHP10 (JDM 2WD 1.5L hybrid) |
| 2005-2011 | Toyota | Yaris | NCP91 (North America 1.5L) |
| 2005-2010 | Toyota | Vitz | NCP91 (JDM 2WD 1.5L) |
Why Choose Cusco?
- Japanese brand trusted by enthusiasts for reliable suspension upgrades worldwide
- Engineered for direct chassis reinforcement with proven track and street results
- Built with high-tension materials and precise fitment for consistent handling gains
Frequently Asked Questions
-
Q: Does this fit my 2013 Prius C?
A: Yes, it fits 2012-2015 Prius C NHP10 U.S. spec models precisely using factory mounts -
Q: What material and finish does the bar use?
A: Lightweight 6061-T6 aluminum tubing with blue powder-coated finish for rust resistance and durability -
Q: How long does installation take and what tools are needed?
A: Under 1 hour with basic tools like wrenches and torque wrench. includes all hardware and bilingual instructions
Shipping & Handling
- Method: Standard ground shipping
- Availability: In stock - ships same or next business day
- Packaging: Secure box 32 x 6 x 4 inches (81 x 15 x 10 cm)
- Weight: 4.5 lbs (2.0 kg) product, ~5.5 lbs shipping
