SKU: 951 492 C | UPC: 4996338046659

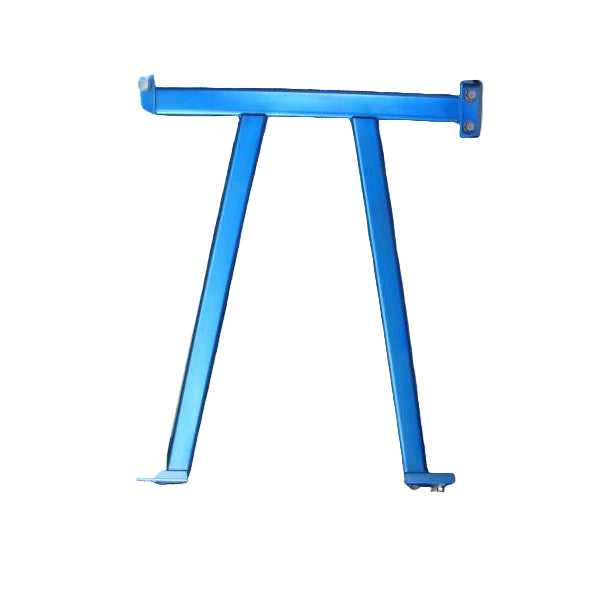

Cusco Power Brace 2010-2015 Toyota Prius ZVW30 Center
Cusco Power Brace ZVW30 Prius Center reinforces the chassis on 3rd-generation Toyota Prius ZVW30 2WD models from 2010 to 2015. This lightweight chromoly steel brace uses a 3-point mounting design to eliminate floorpan flex and torsional twist better than stock sheet metal. It distributes loads across the center tunnel for improved steering response and cornering stability during drives.
Key Features
- Chromoly Steel Construction: High-strength tubing cuts weight while increasing rigidity for chassis support
- 3-Point Center Tunnel Mounting: Reinforces the floorpan at its weakest point to balance loads effectively
- Precision Welded Joints: Transfers forces seamlessly without weak spots or stress buildup
- Powder-Coated Finish: Black coating fights corrosion and road salt for lasting protection
- OEM Mounting Compatibility: Bolts to factory holes with no cuts drilling or adapters needed
Product Notes
- Direct fit for ZVW30 Prius 2WD 2010-2015 excludes AWD and later models
- Preserves hybrid efficiency ride height and suspension geometry
- Compact design ships easily with protective foam sleeve
Installation Notes
- Professional installation recommended.

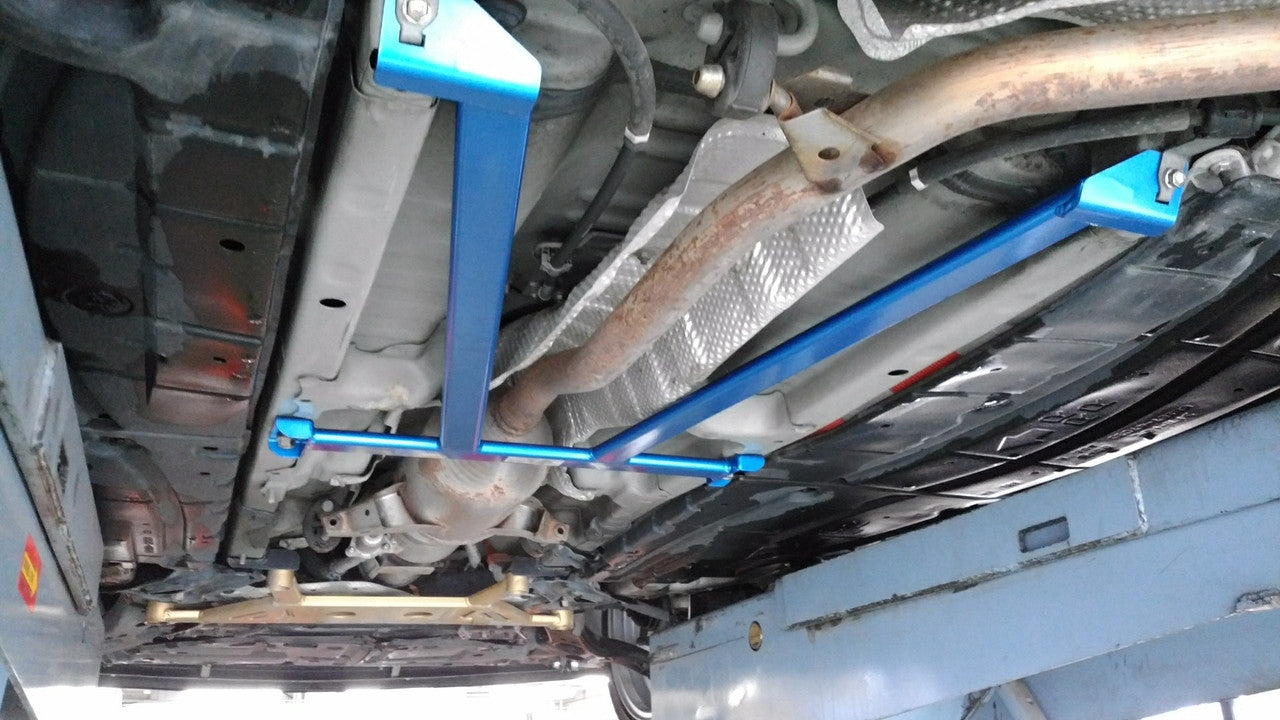

- Access center tunnel by removing carpet no drilling required
- Bolt to factory M8 threaded holes using included hardware torque to 20-25 Nm
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2010-2015 | Toyota | Prius | ZVW30 2WD all trims |
Why Choose Cusco?
- Japanese engineering with motorsport heritage for Prius chassis needs
- Proven flex reduction in unibody hybrids for daily reliability
- CARROSSER quality standards ensure precise fit and durability
Frequently Asked Questions
-
Q: Does it affect the hybrid battery?
A: No mounts forward of battery tray with full clearance -
Q: Is drilling required?
A: No uses factory threaded holes for bolt-on install -
Q: Compatible with AWD Prius?
A: No designed for 2WD ZVW30 models only
Shipping & Handling
- Method: Ground shipping expedited available
- Availability: In stock - ships same or next business day
- Packaging: Protective foam sleeve 24 in × 8 in × 4 in
- Weight: 6.7 lbs
