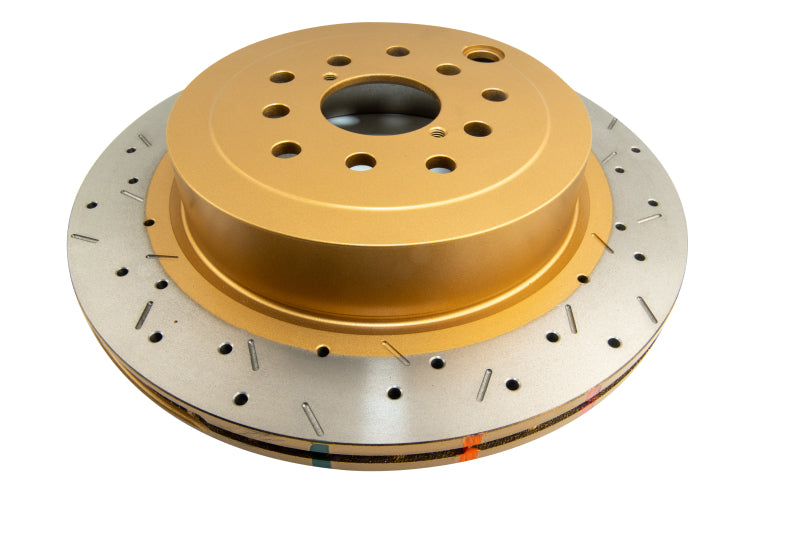

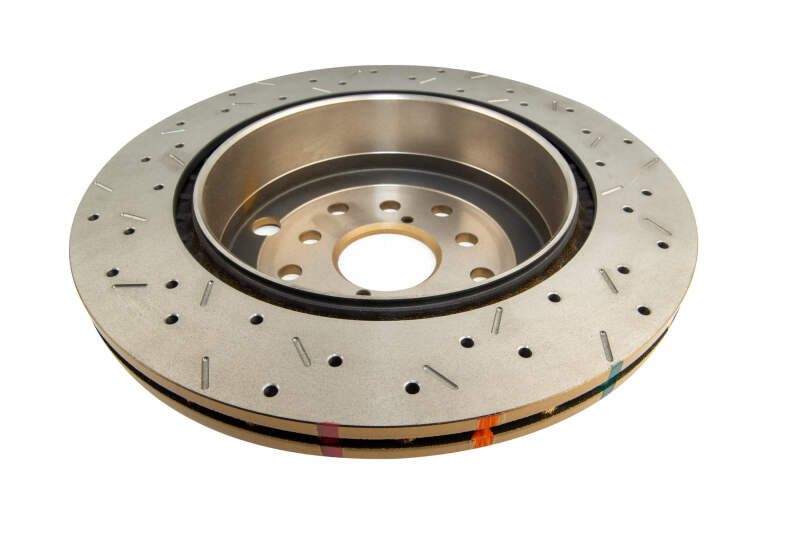

DBA 08-10 STi/2017 BRZ w/Perf. Pkg. Dual-Drilled Rear Drilled & Slotted 4000 Series Rotor

SKU: DBA42656XS-10 / UPC: 9316391373205

DBA 4000 Series T3 Drilled & Slotted Rear Brake Rotor for Subaru WRX STI 2008-2017 & BRZ w/ Performance Package 2017+

The DBA 4000 Series T3 Drilled & Slotted Rear Brake Rotor is engineered for precision, durability, and high-performance driving. Crafted by Disc Brakes Australia (DBA), a global leader in brake rotor manufacturing with over 40 years of expertise, this rotor is designed to deliver consistent stopping power for both street and track applications. Whether you’re navigating tight corners in your 2008-2017 Subaru WRX STI or pushing your 2017+ Subaru BRZ with Performance Package to its limits, this rotor ensures reliable braking under intense conditions.

Why Choose the DBA?

The DBA 4000 Series T3 rotors are built with advanced technology to enhance braking efficiency. Featuring XG-150 high carbon alloyed iron and Thermal Stability Profiling (TSP), these rotors withstand extreme heat and stress, making them ideal for performance driving, track days, rally, and even heavy-duty applications like 4x4s or armored vehicles. The patented Kangaroo Paw ventilation system, with 144 diamond and teardrop pillars, increases surface area by up to 30% and improves cooling efficiency by 20% compared to traditional straight-vane designs, reducing brake fade during prolonged use. The T3 tri-symmetrical slot design, combined with cross-drilled holes, provides multiple exit points for brake pad friction dust and gases, ensuring a smoother, quieter brake pedal feel and consistent performance with every stop.

The universal slot design eliminates the need for separate left and right rotors, simplifying installation while maintaining precision. Thermo-graphic paint markings (THGP) allow drivers to monitor rotor temperature, ensuring optimal performance during spirited driving. With moisture-proof corrosion protection packaging, these rotors arrive ready for installation, built to last in demanding conditions.

What’s Included?

• Single Rear Brake Rotor: DBA 4000 Series T3 Drilled & Slotted Rotor (Part # DBA42656XS-10, UPC: 9316391373205). Note: Rotors are sold individually; order two for a complete rear axle replacement.
• Material: XG-150 High Carbon Alloyed Iron for durability and heat resistance.
• Finish: Black rotor hat with cross-drilled and slotted friction surface for enhanced performance and aesthetics.
• Ventilation: Patented Kangaroo Paw system with 144 diamond and teardrop pillars.
• Slot Design: T3 tri-symmetrical slots for improved brake pedal feel and gas/dust expulsion.
• Drilling: Uni-directional cross-drilled holes for additional friction management.
• Warranty: Manufacturer warranty through DBA (contact DBA or your retailer for details).

Fitment Details

This rotor is a direct replacement for the following vehicles:

• Subaru WRX STI (2008-2017): Compatible with models equipped with Brembo brakes and 5x100 or 5x114.3 bolt patterns.
• Subaru WRX (2008-2014): Fits models with 5x100 STI Brembo brake swaps.
• Subaru BRZ (2017-2020): Compatible with Performance Package or tS models equipped with Brembo brakes.
• Toyota 86/GR86 (2017+): Fits models with Brembo Performance Package.
• Bolt Circle: Dual-drilled for 5x100 and 5x114.3 lug patterns, ensuring versatility across compatible models.

Note: Does not fit WRX models without Brembo brakes. Verify fitment with your vehicle’s specifications before purchasing.

Specifications

• Position: Rear
• Rotor Type: Vented
• Rotor Diameter: 286mm (11.26 inches)
• Rotor Height: 63.5mm (2.5 inches)
• Rotor Thickness: 20mm
• Bolt Circle: Dual-drilled 5x100mm and 5x114.3mm
• Driving Style: Suitable for daily driving, performance driving, track days, rally, 4x4, SUVs, and light utility vehicles.
• Weight: Approximately 15 lbs per rotor (based on similar DBA 4000 Series rotors; exact weight may vary slightly).
• Shipping Box Dimensions: Approximately 13” x 13” x 3” per rotor (based on standard brake rotor packaging; confirm with retailer at time of purchase).

Performance Benefits

• Enhanced Braking: Cross-drilled and slotted design improves pad bite and reduces brake fade.
• Heat Management: Kangaroo Paw ventilation dissipates heat efficiently, maintaining performance under extreme conditions.
• Durability: High carbon alloyed iron and TSP ensure longevity, even with aggressive driving.
• Aesthetics: Sleek black hat and drilled/slotted surface complement performance vehicles.
• Versatility: Dual-drilled bolt pattern accommodates multiple Subaru and Toyota models.

Installation & Compatibility

The DBA42656XS-10 is a direct replacement rotor, requiring no modifications for compatible vehicles. Professional installation is recommended for optimal performance. Always pair with high-quality brake pads suited for performance driving to maximize rotor effectiveness. For warranty or fitment questions, contact DBA or your retailer’s customer support for assistance with installation, troubleshooting, or potential manufacturer defects.

Why This Rotor Stands Out

Unlike standard OEM rotors or generic aftermarket options, the DBA 4000 Series T3 Drilled & Slotted Rotor combines cutting-edge technology with proven performance. Its ability to handle extreme heat, reduce fade, and maintain consistent braking makes it the go-to choice for enthusiasts and professionals alike. Backed by DBA’s reputation for quality and innovation, this rotor delivers the reliability and stopping power you need for your Subaru WRX STI or BRZ.
