SKU: DBA2723E | UPC: 9316391406163

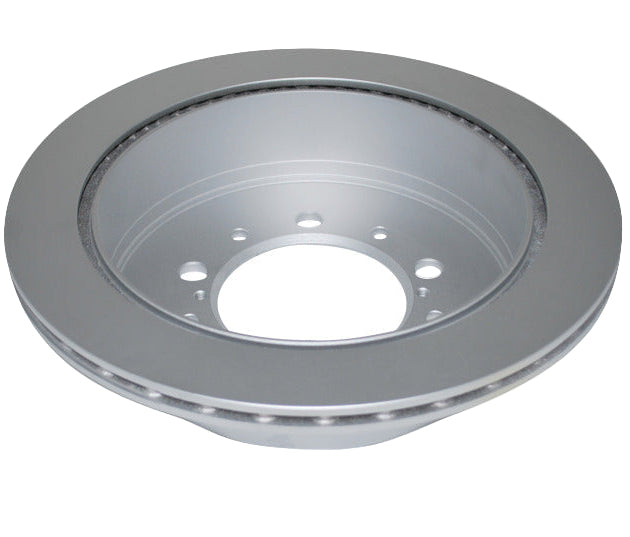

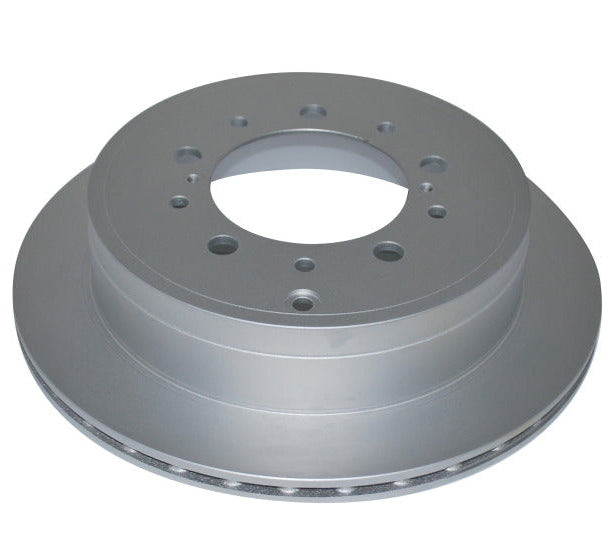

DBA En-Shield Standard Rear Brake Rotor - 2008-2021 Lexus LX570 / Toyota Land Cruiser 200 Series
The DBA2723E En-Shield rear brake rotor is a direct replacement for the factory rotor on the 2008-2021 Lexus LX570 and Toyota Land Cruiser 200 Series. Featuring DBA's patented Kangaroo Paw ventilation system, high-carbon cast iron construction, and En-Shield protective coating, this rotor provides superior heat dissipation, reduced fade, and extended life while maintaining quiet operation and compatibility with factory calipers and ABS systems.
Key Features
- Kangaroo Paw Ventilation: Patented 144-pillar design increases cooling efficiency by up to 20% over solid rotors.
- High-Carbon Cast Iron: XG-150 formula for strength, stability, and reduced brake noise.
- En-Shield Protective Coating: Non-oily zinc-based coating prevents corrosion and eliminates pre-cleaning.
- Thermal Stability Profiling: Heat-tempered to reduce warping and cracking.
- CBN Surface Finish: Cubic boron nitride machined for perfect flatness and parallel surfaces.
- Direct Bolt-On: OE-equivalent dimensions with factory centering ring.
- Made in Australia: Manufactured by Disc Brakes Australia to ISO standards.
Product Notes
- Rotor diameter: 345mm (13.58").
- Thickness: 18mm (new) / 16.5mm (minimum).
- Height: 67.5mm.
- Center bore: 110mm.
- Sold individually rear left or right (pair required for axle).
- En-Shield coating burns off in pad contact area during first few stops.
- Weight approximately 10.5 kg (23 lbs) per rotor.
- Limited 12-month / 20,000 km warranty.
Installation Notes
- Direct replacement remove wheel, caliper, and old rotor.
- Professional installation recommended clean hub mating surface.
- Bed-in procedure required for optimal performance (follow DBA instructions).
- Typical install time 45-60 minutes per side.
This Part Fits
| Year | Make | Model | Position |
|---|---|---|---|
| 2008-2021 | Lexus | LX570 | Rear (Left or Right) |
| 2008-2021 | Toyota | Land Cruiser 200 Series | Rear (Left or Right) |
Why Choose DBA En-Shield?
- Australian manufacturer with decades of heavy-duty truck rotor expertise.
- Kangaroo Paw ventilation proven in high-heat towing and off-road conditions.
- En-Shield coating provides "ready-to-install" convenience with no oil residue.
Frequently Asked Questions
-
Q: Is this slotted or drilled?
A: Plain/smooth surface (En-Shield series) for quiet operation and maximum pad contact. -
Q: Does it fit with factory calipers?
A: Yes, direct OE replacement dimensions. -
Q: Do I need to machine the rotor?
A: No, CBN finished surface ready for immediate use.
Shipping & Handling
- Method: Standard ground shipping.
- Package Weight: Approximately 28–32 lbs.
- Box Dimensions (approx): 16" × 16" × 6".
