Heavy-Truck Bite for a Two-and-a-Half-Ton SUV Front Axle

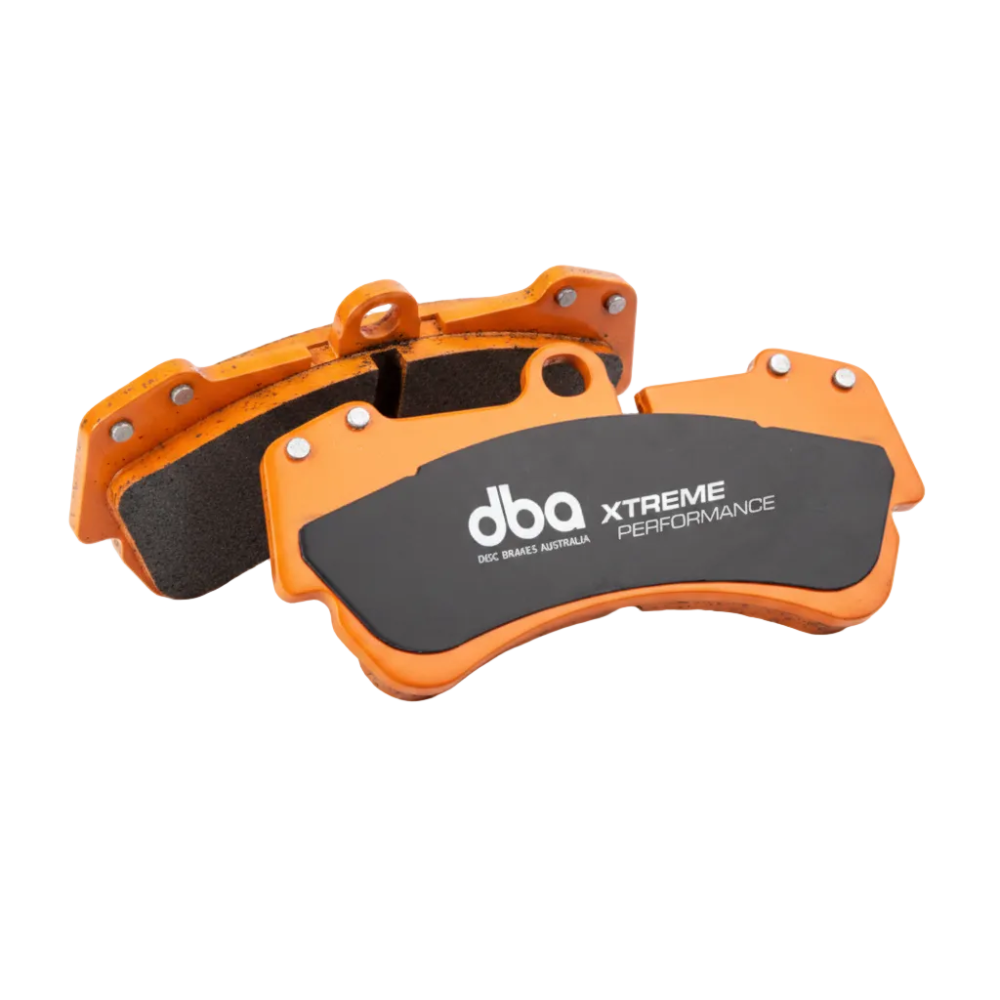

DBA DB15145XP is a front axle set of four Xtreme Performance brake pads for the 2021-2023 Cadillac Escalade without the six-piston big brake package. The XP compound is a low-copper semi-metallic carbon-fibre friction material chosen for high initial bite and consistent friction from cold to hot, which is what a heavy full-size SUV asks of a front pad.
Key Features
- XP compound engineered for high initial bite and consistent friction from low through to high temperature.
- Semi-metallic carbon-fibre friction material with a low copper content.
- Slotted pad face with shims supplied for noise control.
- TSP scorched, meaning the friction surface is post-cured so bed-in time is shorter.
- Rated by DBA for heavy towing, upgraded 4WDs, police-pursuit duty and club-level track days.

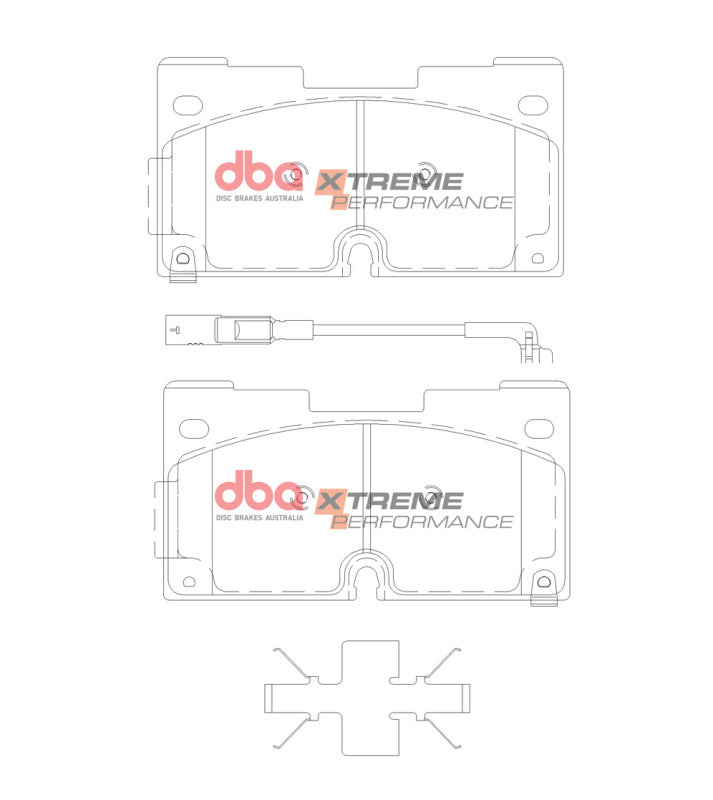

- Large 138.9 mm by 75 mm footprint at 17.9 mm thickness, matched to the Escalade's front caliper.
- Supersedes the earlier DB15145 part number.
Fitment
| Vehicle | Axle and restrictions |
|---|---|
| Cadillac Escalade | 2021-2023, front axle, excluding models with the 6-piston big brake kit |
DBA also catalogues this casting for GM full-size trucks, including Silverado 1500 and Sierra 1500 6.2L applications, but those have not been confirmed against DBA's own application table and are not tagged here.
Check the front caliper before ordering DBA DB15145XP: the six-piston big brake package uses a different pad.
Specifications
| Detail | Value |
|---|---|
| Brand | DBA |
| MPN | DB15145XP |
| Product line | Xtreme Performance (XP) |
| Axle | Front |
| Friction material | Semi-metallic carbon fibre, low copper |
| Length | 138.9 mm |
| Width | 75 mm |
| Thickness | 17.9 mm |
| Chamfer | No |
| Slots | Yes |
| Shims | Yes |
| Pads per box | 4 |
| Sets required per vehicle | 1 |
| Packaged size | 17.2 x 8.2 x 11.6 cm |
| Packaged weight | 2.96 kg |
| Surface treatment | TSP scorched |
| Supersedes | DB15145 |
| UPC | 9316391471383 |
| Warranty | 12 months / 20,000 km / 12,000 miles |
What's Included

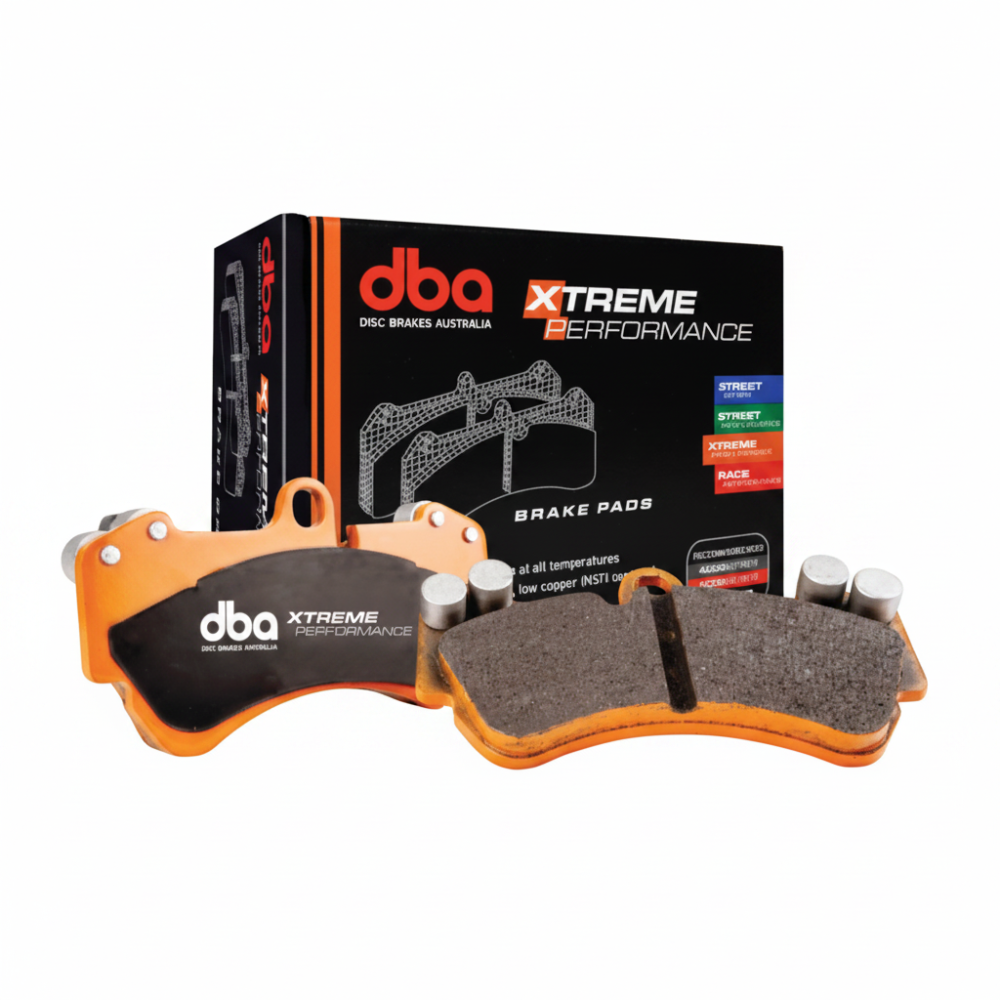

- One DBA DB15145XP axle set of four brake pads
- Anti-noise shims fitted to the pads
About DBA
DBA builds its friction range in tiers, and XP sits above the street-focused SP compound. Where SP targets low dust and quiet operation, XP is the heavy-duty formulation: carbon-fibre semi-metallic, scorched, and rated for towing, 4WD and pursuit work. DBA DB15145XP is that compound in the front pad shape used by the fifth-generation Escalade.
Related Parts
FAQ
Do these pads need a bed-in cycle before hard driving?Yes. DBA asks for a series of medium-pressure slowdowns from about 50 km/h to 10 km/h without stopping, repeated with cool-down time between, then easy braking for the first few hundred kilometres so the transfer layer settles evenly.
Does it fit an Escalade with the 6-piston BBK?No. Those trucks use a larger caliper and take a different pad. This set is for the standard front caliper.
What is the friction material?A semi-metallic carbon-fibre compound with low copper content, formulated for high initial bite.
Are shims included?Yes. Shims come fitted, and the pad face is slotted, both of which are there to keep noise down.
What does TSP scorched mean?The friction surface is post-cured at the factory, which burns off the surface resins early and shortens the bed-in the pad needs.
Is this pad suitable for towing?Yes. DBA rates the XP compound for heavy towing, upgraded 4WDs, police-pursuit use and club track days.
How many pads are in the box?Four, which is one axle. A full brake job on both axles needs a matching rear set.
What rotor should it be paired with?DBA recommends its T3-slotted 4000 or 5000 Series rotors with this compound.
How long is the warranty?12 months or 20,000 km / 12,000 miles, whichever comes first.
Installation Instructions
- Have the pads fitted by a qualified technician, which is what DBA specifies for its friction products.
- Raise the front of the Escalade, remove both front wheels and confirm the caliper is the standard unit rather than the six-piston big brake caliper.
- Inspect both front rotors for scoring, cracking and thickness against the minimum stamped on the hat before fitting new friction.
- Retract the caliper pistons squarely and watch the reservoir level, because a full-size SUV front caliper displaces a lot of fluid.
- Clean the carrier abutments and slider pins so the 138.9 mm pads can move freely under load.
- Fit the four pads with their shims in place, refit the caliper, then pump the pedal firm and check the wheel spins without drag.
- Bed in on a clear road: from 50 km/h (30 mph) brake down to 10 km/h (5 mph) with medium pedal pressure without coming to a stop.
- Repeat that cycle about ten times with roughly 30 seconds of rolling cool-down between each one.
- Avoid heavy or prolonged braking for the first 200 km (120 miles) so the friction transfer layer stabilises.
