Retain factory tank function with DW400 fuel flow
DeatschWerks 9-401-7020 combines an X1 in-tank module with a DW400 pump for supported Nissan S13 models and the 1989-1993 R32 Skyline non-GTR. It retains the original fuel level and low fuel warning sensors while adding serviceable -6AN connections and 5/16 inch hose barb adapters.
Key Features
- DW400 pump flows 415 LPH at 40 PSI and 13.5 volts
- Compatible with pump gasoline, E85, and race fuel
- Part 9-401-7020 retains factory fuel level, low fuel warning, tank capacity, and surge functions
- Anodized aluminum and stainless steel module construction
- -6AN feed and return ports with included 5/16 inch hose barb adapters
- 10-gauge hardwire kit FPHWK-10-HD is strongly recommended
Fitment
| Years | Make | Model | Chassis | Restriction |
|---|---|---|---|---|
| 1989-1993 | Nissan | 240SX | S13 | All engines |
| 1989-1993 | Nissan | 200SX | S13 | All engines |
| 1989-1993 | Nissan | Silvia | S13 | All engines |
| 1989-1998 | Nissan | 180SX | S13 | All engines |
| 1989-1993 | Nissan | Skyline | R32 | Non-GTR only |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 9-401-7020 |
| Series | X1 |
| Pump | DW400 |
| Flow | 415 LPH at 40 PSI and 13.5 volts |
| Voltage Range | 6-18 volts |
| Current Draw | 16.5 amps at 40 PSI and 13.5 volts |
| Maximum Pressure | 120 PSI |
| Pump Diameter | 46 mm |
| Fuel Compatibility | Pump gasoline, E85, and race fuel |
| Module Material | Anodized aluminum and stainless steel |
| Feed and Return | -6AN or 5/16 inch hose barb |
| Mounting | In-tank module assembly |
| Intended Use | Sanctioned competition vehicles unless permitted by a specific regulatory exemption |

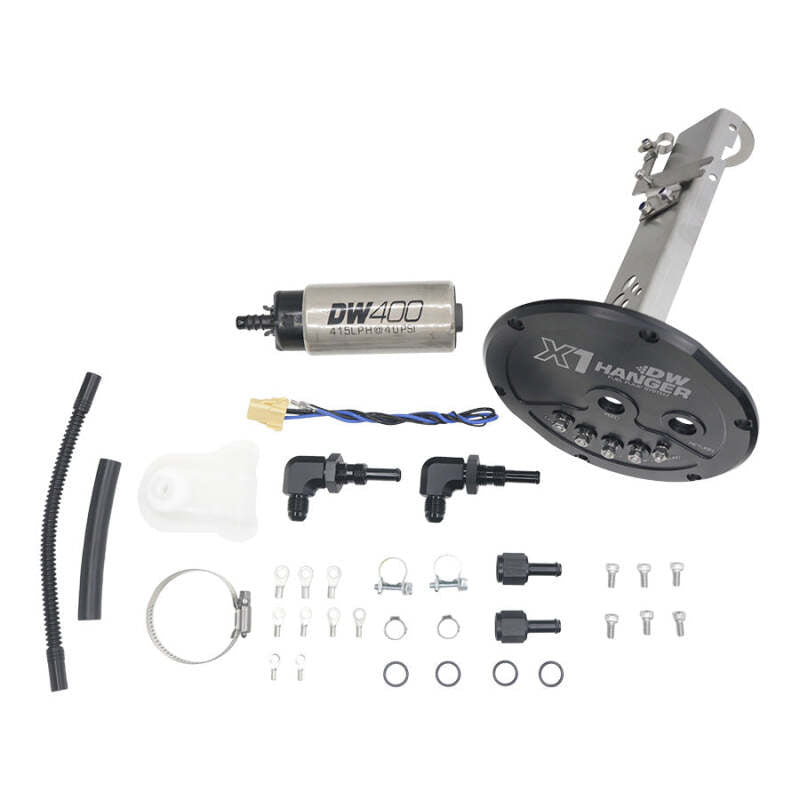

What's Included
- One 9-401-7020 X1 S13 fuel pump module
- One DW400 fuel pump
- One 10 inch pump electrical connector
- One 4 inch by 5/16 inch rubber fuel hose
- One 8 inch by 5/16 inch convoluted return tube
- One fuel pump prefilter sock
- One 5/16 inch pinch hose clamp
- Two 5/16 inch adjustable hose clamps
- Three 12-10 AWG number 10 ring terminals
- Four 14-16 AWG number 10 ring terminals
- Two 18-22 AWG number 10 ring terminals
- Two -6AN bulkhead fittings with O-rings
- Two -6AN to 5/16 inch hose barb adapters
- Four M5 stainless electrical terminals
- One 2.25 inch adjustable hose clamp
- Two 8 inch zip ties
About DeatschWerks
DeatschWerks develops performance EFI fuel system components, including pumps, injectors, regulators, and application-specific fuel modules. Current products are supported by a limited lifetime warranty subject to the manufacturer's warranty terms and RMA process.
FAQ
What is the 9-401-7020?It is a vehicle-specific X1 in-tank module supplied with a DW400 pump, fittings, wiring terminals, hose, and installation hardware for the listed Nissan applications.
Does this module fit an R32 Skyline GTR?No. Skyline compatibility is limited to 1989-1993 R32 non-GTR models.
Which S13 models are supported?It supports the listed 1989-1993 240SX, 200SX, and Silvia applications plus the 1989-1998 180SX.
How much fuel does the DW400 pump flow?The DW400 is rated at 415 LPH at 40 PSI and 13.5 volts.
Which fuels can the pump use?The pump is compatible with pump gasoline, E85, and race fuel.

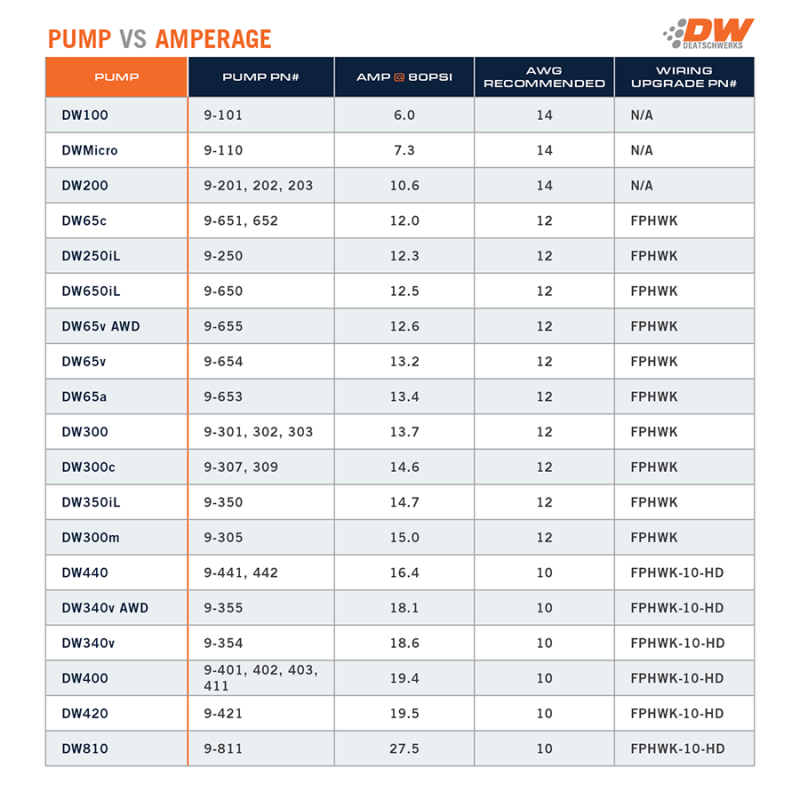

Is upgraded pump wiring required?A 10-gauge hardwire kit is strongly recommended because the DW400 draws substantial current. The specified upgrade is FPHWK-10-HD.
Which original parts must be reused?Reuse the factory fuel level sensor, low fuel warning sensor, related sensor wiring, and tank mounting gasket.
What connections are supplied for the fuel lines?The module has -6AN feed and return ports and includes 5/16 inch hose barb adapters for the original rubber lines.
What warranty applies?DeatschWerks provides a limited lifetime warranty under its current terms. A support ticket and RMA authorization are required before returning a product.
Is this module intended for street use?It is intended for sanctioned competition vehicles unless a specific regulatory exemption permits another use.
Installation Instructions
- Review the vehicle service manual and the installation guide for 9-401-7020 before removing the original module.
- Remove and retain the original fuel level sensor, low fuel warning sensor, sensor wiring, and tank mounting gasket.
- Install the retained sensors on the X1 brackets and connect their ring terminals to the labeled posts.
- Lubricate the O-rings, install the return bulkhead first, then install the feed bulkhead and tighten both retaining nuts.
- Fit the prefilter, rubber hose, clamps, and DW400 pump. Orient the filter sock with the float arm and secure the pump with the 2.25 inch clamp.
- Install the convoluted return tube with the pinch clamp and secure it with the supplied zip ties.
- Trim the pump pigtail to approximately 6 inches, crimp the specified terminals, then connect pump positive and pump negative to the labeled posts.
- Install the -6AN to 5/16 inch adapters when retaining the original rubber fuel lines and verify the feed and return routing.
- Wire the module using the original harness as a reference. Use the recommended 10-gauge hardwire kit for the DW400.
- Inspect every fuel and electrical connection, reinstall the module with the retained gasket, prime the system, and check for leaks before operation.
