DEI DEI Jeep JK W5A580 Transmission Pan Heat Shield
DEI DEI Jeep JK W5A580 Transmission Pan Heat Shield
Click to zoom in

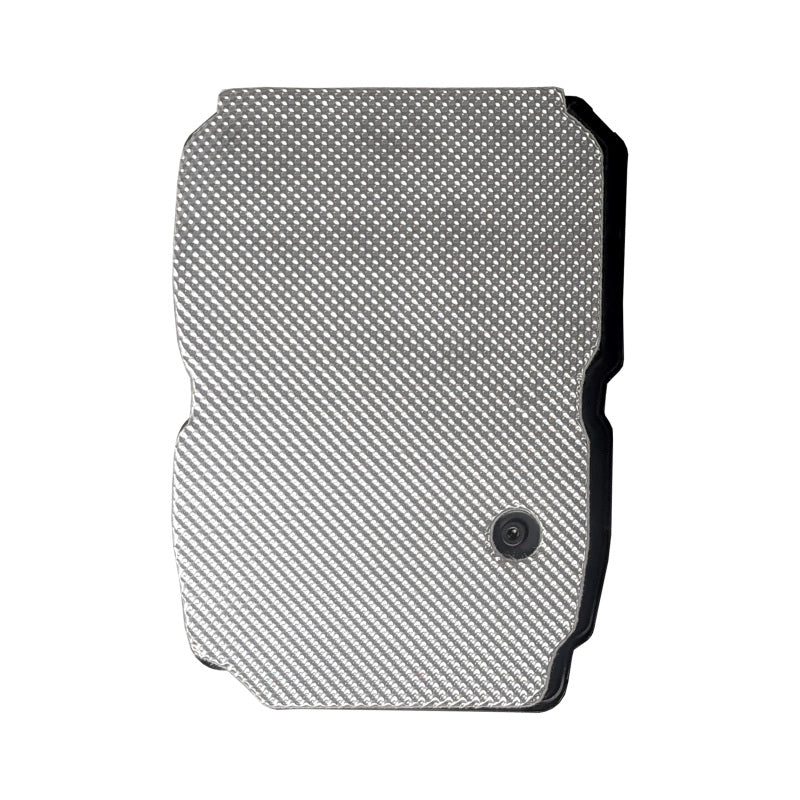

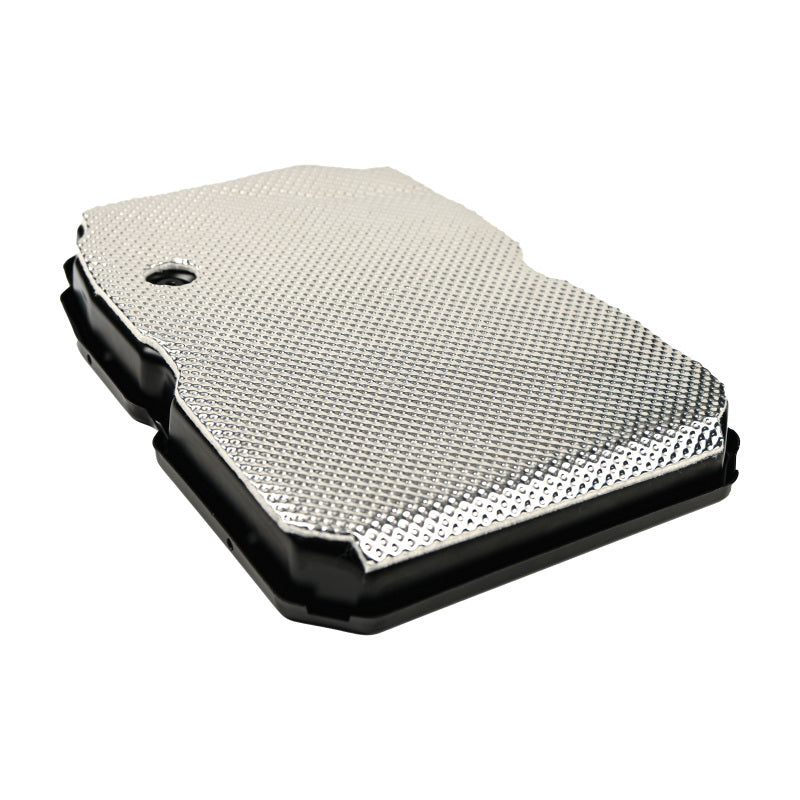

DEI Jeep JK W5A580 Transmission Pan Heat Shield

DEI
DEI10376
607078103765
Thermal Wrap
5 Units In Stock - Ships Next Business Day
$ 44.99
$ 44.99

SKU: 10376 | UPC: 607078103765

DEI Jeep JK Wrangler 2007-2018 W5A580 Transmission Pan Heat Shield

DEI 10376 installs between the transmission pan and crossover pipe on 2007-2018 Jeep Wrangler JK models equipped with W5A580 transmissions. This adhesive-backed shield blocks radiant heat from the exhaust to prevent heat soak into the pan and fluid. Expect cooler transmission temperatures that support consistent performance and extended component life.

Key Features

  • Adhesive-Backed Design: Peel-and-stick application for straightforward placement without tools or fasteners
  • Exhaust Heat Reflection: Mirrors up to 2000°F radiant heat away from the transmission pan
  • Temperature Control: Lowers pan temperatures by 50-100°F during operation
  • Fluid Protection: Maintains optimal ATF viscosity for smoother shifts and reduced wear
  • Custom JK Shape: Precision-cut to fit W5A580 pan and pipe clearance on 2-door and 4-door models

Product Notes

  • Clean transmission pan surface thoroughly before applying adhesive
  • Designed exclusively for automatic W5A580 transmissions, not manuals
  • Ships flat in protective packaging to avoid bends or creases

Installation Notes

  • Professional installation recommended.
  • Remove exhaust crossover pipe for access, then apply shield directly to pan
  • No drilling or modifications needed, uses factory hardware

This Part Fits

Year Make Model Submodel
2007-2018 Jeep Wrangler JK 2/4 Door w/W5A580 (All)

Why Choose DEI?

  • 25+ years leading heat control solutions for automotive applications
  • Materials tested in racing and daily driven vehicles
  • Engineered for direct fit and measurable heat reduction

Frequently Asked Questions

  • Q: Will this fit my 2012-2018 Jeep JK Wrangler?
    A: Yes, it fits all 2007-2018 JK Wrangler 2-door and 4-door models with the W5A580 5-speed automatic transmission
  • Q: What material is the heat shield made from?
    A: High-temperature reflective laminate with pressure-sensitive adhesive backing rated for continuous 2000°F exposure
  • Q: What is the warranty and install time?
    A: Backed by DEI one-year limited warranty, typical DIY install takes 30-45 minutes with basic tools

Shipping & Handling

  • Method: UPS Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Flat protective envelope, 12 x 12 x 1 inches
  • Weight: 0.70 lbs
