Description
Shield spark plug boots from header and manifold heat

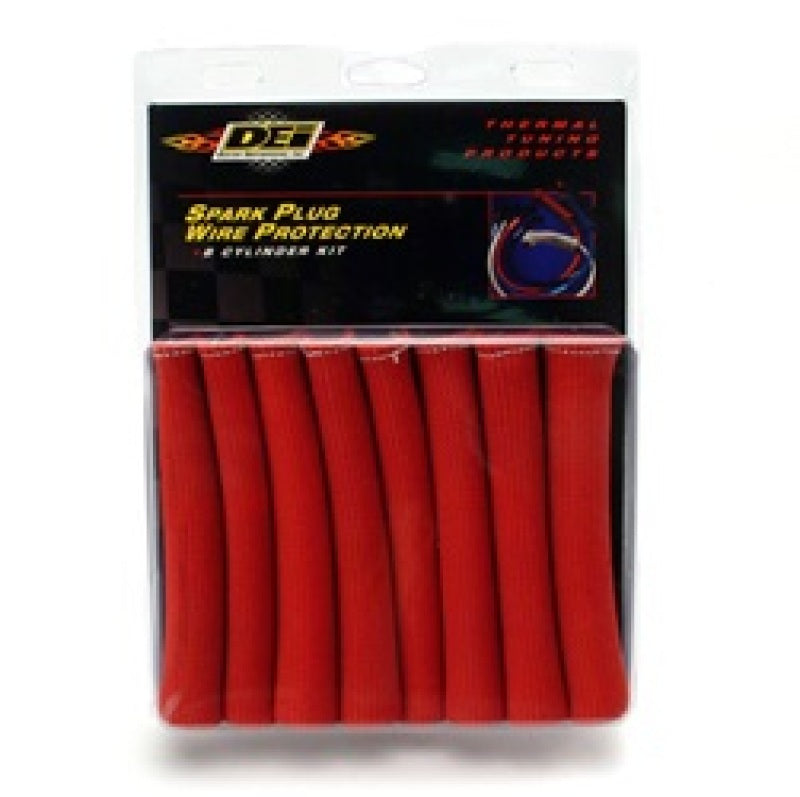

Design Engineering Inc. 10522 is a set of eight red Protect-A-Boot sleeves for spark plug boots and wires exposed to severe underhood heat. Each six-inch double-wall fiberglass sleeve has a one-inch internal diameter and an internal reinforcement ring that supports plug removal during maintenance.
Key Features
- High-temperature glass-fiber construction with a proprietary protective coating
- Double-wall construction for added durability through repeated heat cycles
- Six-inch length and one-inch internal diameter
- Universal slip-on design fits most straight and angled spark plug boots that meet the published dimensions
- Internal reinforcement ring supports easier plug removal during maintenance
- Non-flammable construction resists water and common underhood chemical exposure
- Manufacturer states protection up to 1,200 degrees F direct continuous heat
- Red finish and set-of-eight quantity
Fitment
| Application Type | Verified Requirements and Restrictions |
|---|---|
| Universal dimension-based ignition protection | Fits most straight or angled spark plug boots within the six-inch length and one-inch internal diameter. For tight bends or thicker MSD- or Taylor-style boots, DEI recommends a compatible ringless sleeve instead. Confirm boot shape, wire diameter, heat exposure, and clearance before ordering. |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 10522 |
| Product Line | Protect-A-Boot |
| Material | High-temperature coated glass fiber |
| Construction | Double wall |
| Length | 6 inches |
| Internal Diameter | 1 inch |
| Color | Red |
| Installation | Slip-on |
| Reinforcement Ring | Included in each sleeve |
| Heat Rating | Up to 1,200 degrees F direct continuous heat per DEI |
| Quantity | Eight sleeves |
| Country of Manufacture | United States |
What's Included

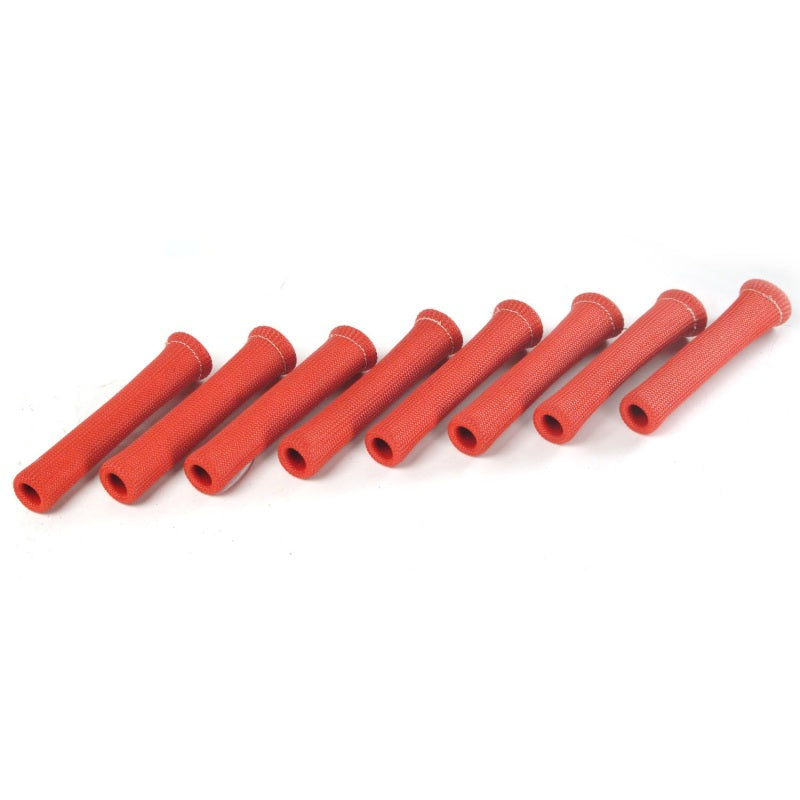

- set of eight red Protect-A-Boot spark plug boot sleeves
- Eight six-inch sleeves with internal reinforcement rings
- Spark plug wires, spark plugs, boots, tools, and unrelated ignition parts are not included
About Design Engineering Inc. (DEI)
Design Engineering Inc. develops automotive thermal, acoustic, and vibration-control products for underhood, exhaust, interior, and electrical applications. Protect-A-Boot sleeves are selected by boot geometry, dimensions, temperature exposure, and available clearance rather than by vehicle name alone.
Related Parts
- For tight bends or thicker spark plug boots, select a compatible DEI ringless sleeve by its exact dimensions and manufacturer part number; no unverified internal product link is included.
FAQ
What is the 10522?It is spark plug boot heat protector set for spark plug boots and wires that meet the published dimensions, shape, temperature, and clearance requirements.
What application must be confirmed before ordering?Measure the spark plug boot and available clearance, verify the boot bend and wire diameter, and use a ringless sleeve when the reinforcement ring will not pass a tight bend or thicker boot.
What is included?The exact supplied components are listed in the What's Included section; unrelated installation parts are not included.
Is this a universal product?Yes. It is a dimension-based universal product rather than a year-make-model application. Confirm the published sleeve dimensions, boot shape, wire diameter, heat exposure, and clearance before ordering.
Does the listing include unrelated installation parts?No. Only the exact component or kit identified in the included-items section is supplied.
Should existing components be inspected?Yes. Inspect the spark plug boots, wires, terminals, headers, manifolds, routing, and existing heat damage before installation.
Is professional installation recommended?Professional installation is recommended whenever the work affects safety, pressurized fluid, suspension geometry, electrical wiring, or protective equipment setup.
What should be checked after installation?Verify secure mounting, correct routing or clearance, proper function, and every manufacturer-specified post-installation check before normal use.
Installation Instructions
- Allow the engine and exhaust system to cool completely and disconnect power as required by the vehicle service procedure.
- Inspect each spark plug boot and wire for cracking, hardening, burns, damaged terminals, or existing misfire concerns.
- Confirm the sleeve can pass over the boot and wire without forcing the one-inch internal diameter or reinforcement ring over an incompatible bend.
- Slide one sleeve over each compatible boot until the protected area covers the heat-exposed section without contacting moving parts.
- Reconnect the spark plug boots fully and verify secure terminal engagement, wire routing, and clearance from headers and manifolds.
- Start the engine, check for misfires or contact, and reinspect the sleeves after the first complete heat cycle.
