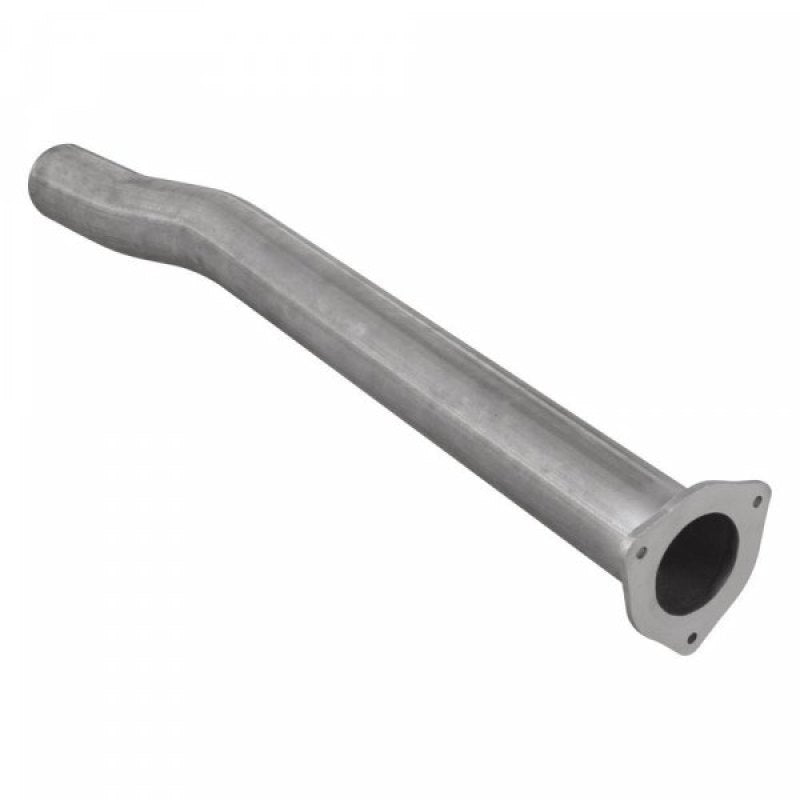

This Diamond Eye Performance connecting pipes component is configured for the verified vehicle applications below under manufacturer part number 220101. Its tubing size, material, routing, and connection points must be matched to the exact vehicle and exhaust-system configuration before ordering.
Key Features
- Exact-MPN exhaust component
- Exhaust-grade construction
- Dimensions and connection style must match the intended system
Fitment
| Years | Make | Model |
|---|---|---|
| 1989-1993 | Dodge | W250 |
| 1989-1993 | Dodge | W350 |
Specifications
| Manufacturer | Diamond Eye Performance |
|---|---|
| Manufacturer Part Number | 220101 |
| Product Type | Connecting Pipes |
| Tubing Diameter | 4 inches |
| Material | Aluminized steel |
| Configuration | Single |
What's Included
One Diamond Eye Performance connecting pipes component or system in the exact configuration identified by manufacturer part number 220101. Additional clamps, hardware, tips, or exhaust sections are included only when expressly listed for this MPN.
About Diamond Eye Performance
Diamond Eye Performance manufactures mandrel-bent exhaust systems and components for diesel, gas, and universal exhaust applications. Correct selection depends on the exact MPN, vehicle or system application, tubing size, material, and connection layout.
Related Diamond Eye Products
- Diamond Eye 405024 STRAIGHT PIPE 5in 24in LENGTH BUMPED Aluminized DIAIP24-5
- Diamond Eye 122025 Tail Pipe 4in 1ST SEC DUAL PASSENGERS SIDE Aluminized 7 3L F250/350 94-03 6 0L 03-07 5 9L
- Diamond Eye 220099 Downpipe 4in Aluminized: 89-93 5.9L DODGE MACHINED EF
Browse the Diamond Eye Performance collection for additional exhaust systems and components.
Frequently Asked Questions
How do I confirm this Diamond Eye part fits?
Match the exact manufacturer part number, vehicle application when listed, tubing diameter, material, exhaust path, connection style, and all chassis-clearance requirements.
Does this part replace the complete exhaust system?
Only when the product type and exact MPN identify a complete system. Pipes, tips, clamps, muffler replacements, and other service components include only the configuration specifically listed.
Will installation require cutting or welding?
Installation requirements depend on the vehicle and existing exhaust system. Test-fit every section first and confirm clamp locations, hanger alignment, clearances, and any fabrication requirements before final tightening.
Installation Instructions
- Confirm the exact MPN, vehicle application, tubing size, material, and exhaust path before removing parts.
- Allow the exhaust to cool and support the vehicle using approved lifting points and stands.
- Loosely assemble and align every section, clamp, hanger, and connection before final tightening.
- Verify clearance from wiring, fuel and brake lines, heat shields, suspension, bodywork, and the driveshaft.
- Tighten fasteners to the vehicle and component specifications, then inspect for leaks and contact after a complete heat cycle.
