Description
The Diode Dynamics SS3 Dual Color Type SV1 Kit SAE Fog is engineered to deliver application-matched automotive illumination through its specified output, color, beam pattern, and electrical design. This is a universal component, so manufacturer part number DD8948 must be matched to the required dimensions, mounting, wiring, voltage, output, and included quantity before ordering.
Key Features
- SmartSelect control using the factory fog light switch.
- This SS3 Dual-Color fog light option combines 6000K cool white and 3000K selective yellow output in one lamp.
- Switch colors using the factory fog light switch, with no additional selector required.
Fitment
This is a universal lighting component. Confirm dimensions, mounting, wiring, voltage, output, beam pattern, included quantity, and available clearance for the intended installation.
Specifications
| Brand | Diode Dynamics |
|---|---|
| Manufacturer Part Number | DD8948 |
| Product Type | Fog Lights |
| Condition | New |
| Beam Angle | Fog, 80°x8° |
| Main Beam Power (watts) | 20 Dual-Color Main Beam |
| Backlight Power (watts) | 0.4 |
| Operating Voltage | 9-30V |
| Main Beam Current (amps @ 12.8V) | Sport: 1.1, Pro: 2.7, Max: 3 |
| Backlight Current (amps @ 12.8V) | 0.03 |
| Polarity | Polarity Specific |
| Operating Temperature | -40C to 85C (-40F to 185F) |
| LED Emitter | Luxeon Z ES, Cree XP-L HI, Osram Boost HX, Dual-Color |
| Connector(s) | Deutsch DT Input |
| Driver Features | Constant Current |
| Materials | Polycarbonate Lens, Aluminum Casting, Rubber Gasket |
What's Included
- Two (2) SS3 3” Standard LED Pods

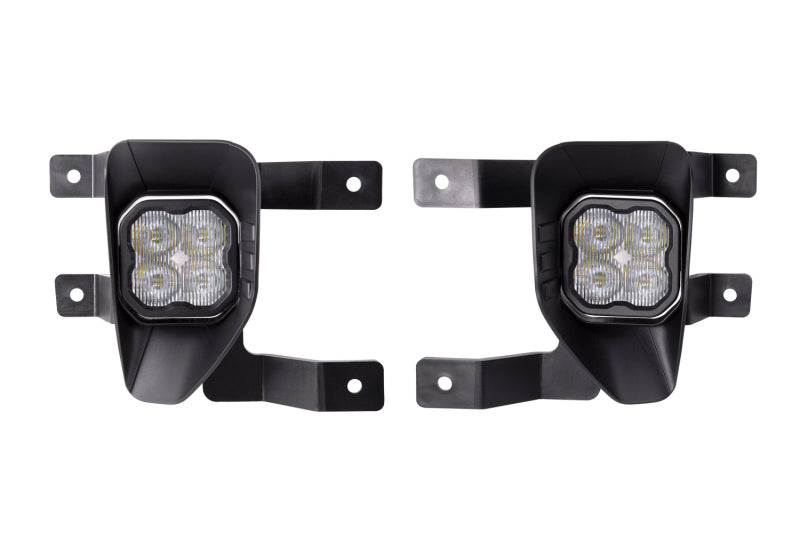

- Two (2) Type SV1 brackets
- Two (2) Molex DT Wire Adapters
- Two (2) Backlight tap wire kit Mounting hardware Mounting guide
About Diode Dynamics
Diode Dynamics develops and manufactures automotive LED lighting, optics, wiring, and mounting solutions. Every bulb, lamp, pod, bar, bracket, and electrical component remains exact-part specific, so confirm the complete configuration before ordering.
Related Diode Dynamics Products
- Diode Dynamics DD8744 Diode Dyamics Rock Light - Red/White - M8 4-Pack
- Diode Dynamics DD8746 Diode Dyamics Rock Light - Red/White - M8 8-Pack
- Diode Dynamics DD8963 00-07 Toyota Tundra/Sequoia SS3 LED Foxbeam Fog Light Kit
Browse the Diode Dynamics collection for additional automotive lighting and installation components.
Frequently Asked Questions
How do I confirm this Diode Dynamics light fits my vehicle?
This is a universal product, so match the dimensions, mounting method, wiring, voltage, beam pattern, and available clearance.
Which beam pattern and color should I choose?
Fog, driving, combo, spot, flood, and work-light patterns serve different distances and mounting positions. Match the stated pattern, color, output, aiming requirements, and road-use classification to the intended use.
Are the brackets, wiring harness, and switch included?
Only the components listed in the What's Included section are supplied. Standalone lights, replacement lamps, and service parts may require separate brackets, adapters, wiring, relays, or switches.
Installation Instructions
- Confirm the exact vehicle, light configuration, beam pattern, lens color, brackets, harness, switch, and included hardware before beginning.
- Mount and aim the light with the specified hardware, then route the correct fused wiring and grounds away from heat, abrasion, sharp edges, and moving parts.
- Test every function, verify wire and body clearance, confirm legal aiming and color, then recheck mounting hardware after the initial drive.
