Diode Dynamics DIODD8949 Fog Lights - View-1

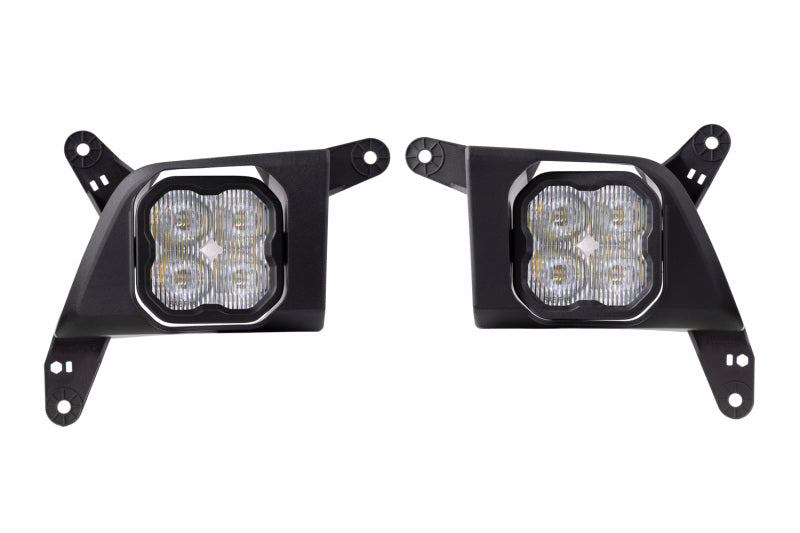

Diode Dynamics DD8949 SS3 Dual Color Type SV2 Kit SAE Fog - Diode Dynamics DD8949
Diode Dynamics DD8949 SS3 Dual Color Type SV2 Kit SAE Fog - Diode Dynamics DD8949
Diode Dynamics DD8949 SS3 Dual Color Type SV2 Kit SAE Fog - Diode Dynamics DD8949
Click to zoom in
View vehicle applications

Description

The Diode Dynamics SS3 Dual Color Type SV2 Kit SAE Fog is engineered to deliver application-matched automotive illumination through its specified output, color, beam pattern, and electrical design. This is a universal component, so manufacturer part number DD8949 must be matched to the required dimensions, mounting, wiring, voltage, output, and included quantity before ordering.

Key Features

  • SmartSelect control using the factory fog light switch.

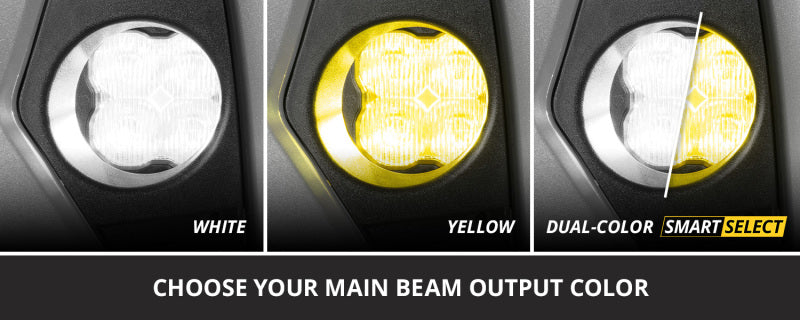

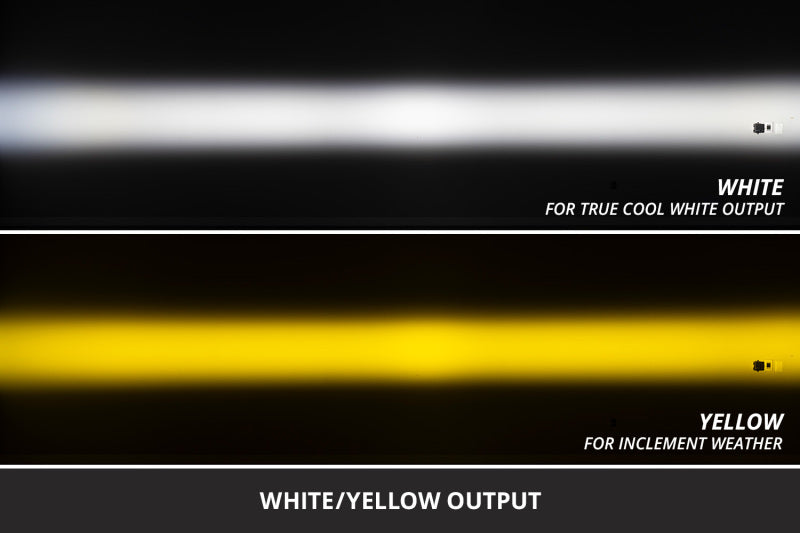

  • This SS3 Dual-Color fog light option combines 6000K cool white and 3000K selective yellow output in one lamp.
  • Switch colors using the factory fog light switch, with no additional selector required.

Fitment

This is a universal lighting component. Confirm dimensions, mounting, wiring, voltage, output, beam pattern, included quantity, and available clearance for the intended installation.

Specifications

Brand Diode Dynamics
Manufacturer Part Number DD8949
Product Type Fog Lights
Condition New
Beam Angle Fog, 80°x8°
Main Beam Power (watts) 20 Dual-Color Main Beam
Backlight Power (watts) 0.4
Operating Voltage 9-30V
Main Beam Current (amps @ 12.8V) Sport: 1.1, Pro: 2.7, Max: 3
Backlight Current (amps @ 12.8V) 0.03
Polarity Polarity Specific
Operating Temperature -40C to 85C (-40F to 185F)

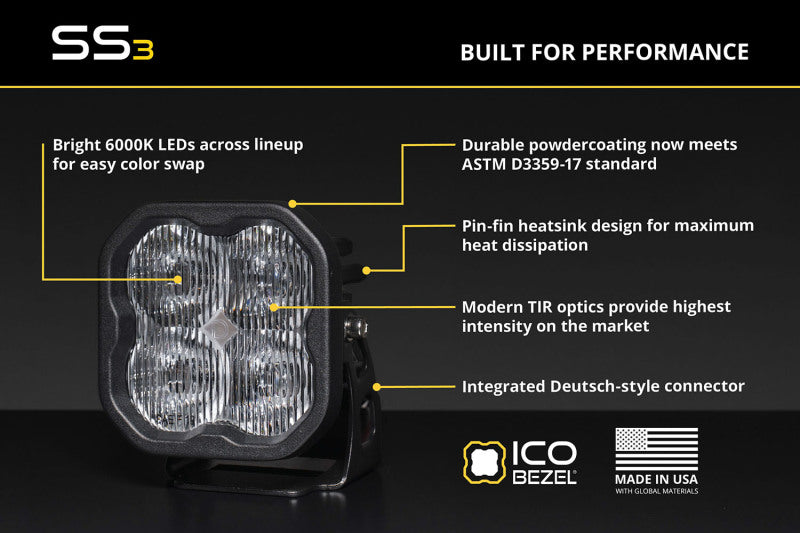

LED Emitter Luxeon Z ES, Cree XP-L HI, Osram Boost HX, Dual-Color
Connector(s) Deutsch DT Input
Driver Features Constant Current
Materials Polycarbonate Lens, Aluminum Casting, Rubber Gasket

What's Included

  • Two (2) SS3 3” Standard LED Pods
  • Two (2) Type SV2 brackets
  • Two (2) H11 4-Pin DT backlight tap wire kit Mounting hardware Mounting guide

About Diode Dynamics

Diode Dynamics develops and manufactures automotive LED lighting, optics, wiring, and mounting solutions. Every bulb, lamp, pod, bar, bracket, and electrical component remains exact-part specific, so confirm the complete configuration before ordering.

Related Diode Dynamics Products

Browse the Diode Dynamics collection for additional automotive lighting and installation components.

Frequently Asked Questions

How do I confirm this Diode Dynamics light fits my vehicle?
This is a universal product, so match the dimensions, mounting method, wiring, voltage, beam pattern, and available clearance.

Which beam pattern and color should I choose?
Fog, driving, combo, spot, flood, and work-light patterns serve different distances and mounting positions. Match the stated pattern, color, output, aiming requirements, and road-use classification to the intended use.

Are the brackets, wiring harness, and switch included?
Only the components listed in the What's Included section are supplied. Standalone lights, replacement lamps, and service parts may require separate brackets, adapters, wiring, relays, or switches.

Installation Instructions

  1. Confirm the exact vehicle, light configuration, beam pattern, lens color, brackets, harness, switch, and included hardware before beginning.
  2. Mount and aim the light with the specified hardware, then route the correct fused wiring and grounds away from heat, abrasion, sharp edges, and moving parts.
  3. Test every function, verify wire and body clearance, confirm legal aiming and color, then recheck mounting hardware after the initial drive.

Diode Dynamics DD8949 SS3 Dual Color Type SV2 Kit SAE Fog

DIODD8949
195995149718
Fog Lights
7 Units In Stock
$ 479.95
$ 479.95
