Description

The Diode Dynamics Mustang 2024 GT Elite Fog Lamp Kit DC is engineered to deliver application-matched automotive illumination through its specified output, color, beam pattern, and electrical design. This is a universal component, so manufacturer part number DD9004 must be matched to the required dimensions, mounting, wiring, voltage, output, and included quantity before ordering.

Key Features

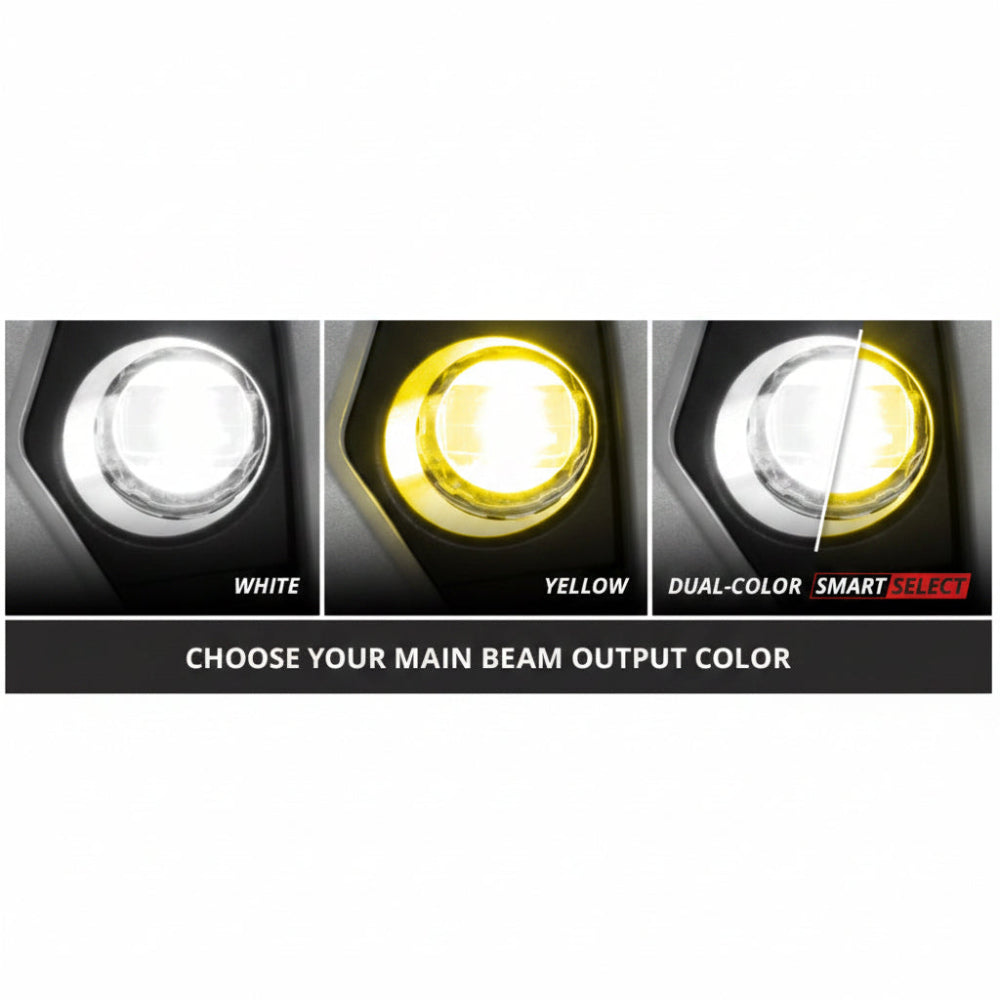

  • Switch colors using the factory fog light switch, with no additional selector required.

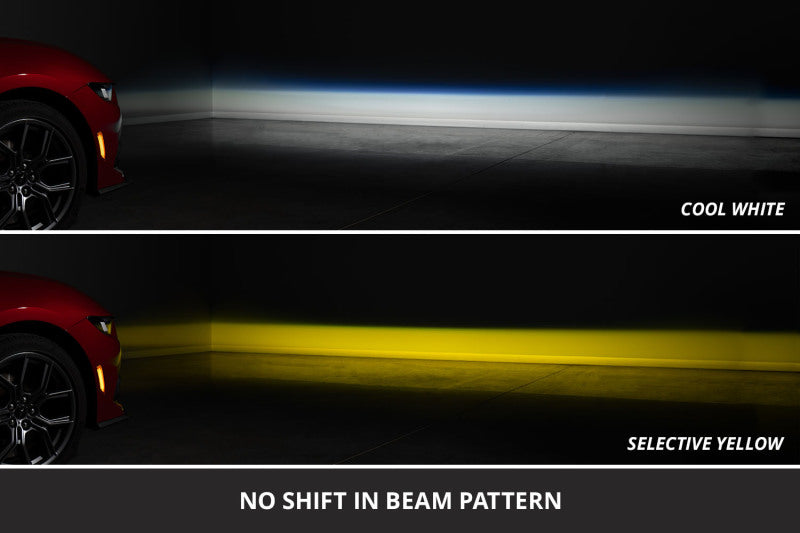

  • A custom-engineered optic produces a wide, smooth fog pattern with a sharp cutoff to reduce glare.

Fitment

This is a universal lighting component. Confirm dimensions, mounting, wiring, voltage, output, beam pattern, included quantity, and available clearance for the intended installation.

Specifications

Brand Diode Dynamics
Manufacturer Part Number DD9004
Product Type Fog Lights
Condition New
Raw Lumens White: 1,850 lm, Yellow: 1,650 lm, Dual Color White: 1,500 lm, Dual Color Yellow: 1,250 lm, Backlight: 14 lm Intensity (cd): White: 13,000 cd, Yellow: 11,400 cd, Dual Color White: 12,900 cd, Dual Color Yellow: 9,200 cd
Color Temp (CCT) 1800K, 3000K, 6000K
Beam Angle Fog, 80°x6°
Power (watts) White & Yellow Main Beam: 18, Dual Color White: 13.2, Dual Color Yellow: 13.5, Backlight: 0.3
Operating Voltage 9-16V
Current (amps @ 13.2V) White & Yellow Main Beam: 1.4A, Dual Color White: 1.0A, Dual Color Yellow: 1.0A, Backlight: 25mA
Polarity Polarity Specific
Operating Temperature -40C to 85C (-40F to 185F)
LED Emitter Multi-Die Automotive Emitters
Connector(s) Deutsch DT Input
Driver Features Constant Current
Materials Copper PCB, UV Coated Polycarbonate Lens, Precision Aluminum Casting

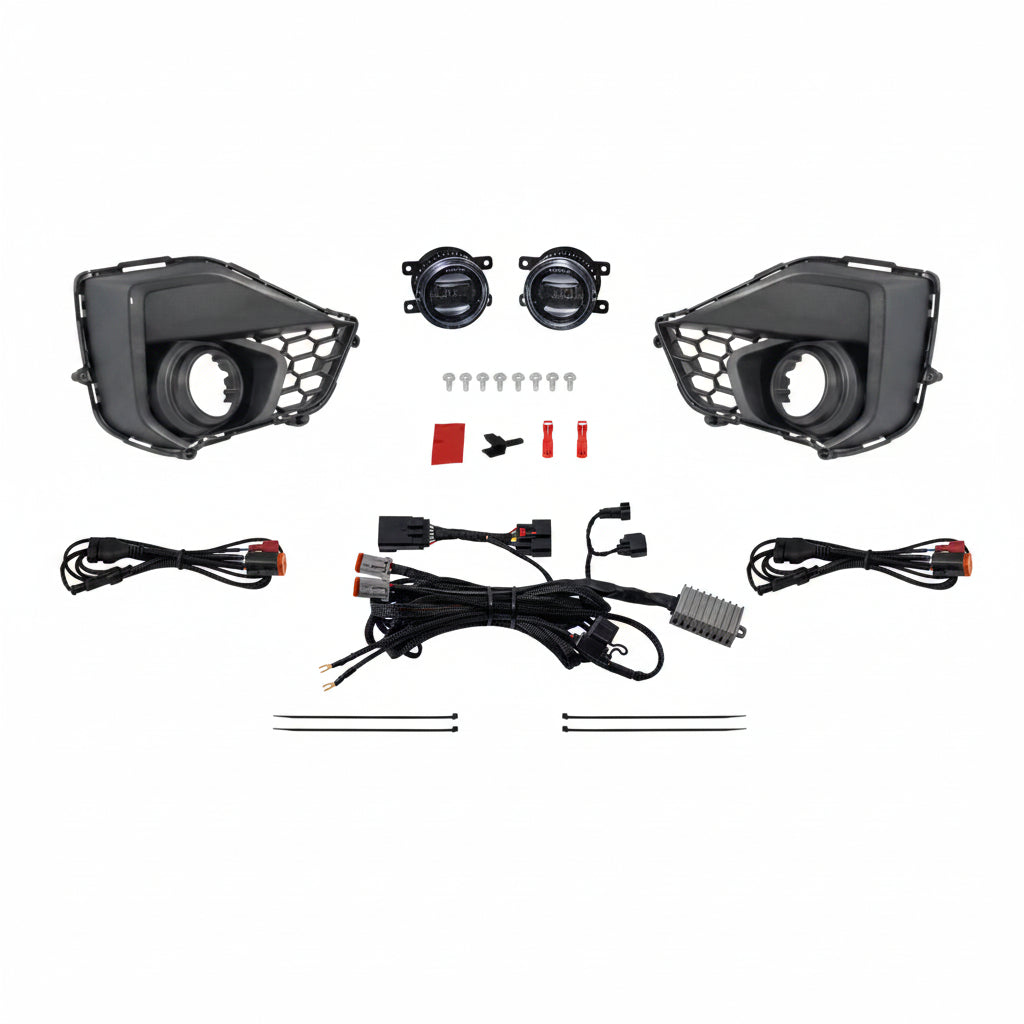

What's Included

  • Two (2) Elite Series Type A Fog Lamps
  • Two (2) Vehicle specific Fog Lamp Bezels
  • One (1) Add-On Fog Harness
  • One (1) Fog Lamp Aiming Tool (GT only)
  • Four (4) Zip ties Hardware Kit

About Diode Dynamics

Diode Dynamics develops and manufactures automotive LED lighting, optics, wiring, and mounting solutions. Every bulb, lamp, pod, bar, bracket, and electrical component remains exact-part specific, so confirm the complete configuration before ordering.

Related Diode Dynamics Products

Browse the Diode Dynamics collection for additional automotive lighting and installation components.

Frequently Asked Questions

How do I confirm this Diode Dynamics light fits my vehicle?
This is a universal product, so match the dimensions, mounting method, wiring, voltage, beam pattern, and available clearance.

Which beam pattern and color should I choose?
Fog, driving, combo, spot, flood, and work-light patterns serve different distances and mounting positions. Match the stated pattern, color, output, aiming requirements, and road-use classification to the intended use.

Are the brackets, wiring harness, and switch included?
Only the components listed in the What's Included section are supplied. Standalone lights, replacement lamps, and service parts may require separate brackets, adapters, wiring, relays, or switches.

Installation Instructions

  1. Confirm the exact vehicle, light configuration, beam pattern, lens color, brackets, harness, switch, and included hardware before beginning.
  2. Mount and aim the light with the specified hardware, then route the correct fused wiring and grounds away from heat, abrasion, sharp edges, and moving parts.
  3. Test every function, verify wire and body clearance, confirm legal aiming and color, then recheck mounting hardware after the initial drive.

Diode Dynamics DD9004 Mustang 2024 GT Elite Fog Lamp Kit DC

DIODD9004
195995150141
Fog Lights
15 Units In Stock
$ 519.95
$ 519.95
