Diode Dynamics Roof Rack Scene Light Dual Color - Red/White - Kit

Command the Night With Diode Dynamics DD8910 Dual Color Red and White Roof Rack Scene Lights

The Diode Dynamics DD8910 Roof Rack Scene Light Kit equips your overland or off-road rig with two distinct lighting modes in one complete, rack-ready package. Four dual-color Stage Series Rock Lights mount to your roof rack or bed rack on angled brackets that direct light outward and downward for maximum coverage of the area surrounding your vehicle. Cool white output delivers 800 lumens per light for full-visibility work, loading, and trail repair, while the switchable red output provides a low-glare, night-vision-preserving option for rock crawling, campsite use, and emergency situations. Compatible with popular platforms including Prinsu, RCI Offroad, Sherpa, and Westcott Designs, the DD8910 installs with a complete wiring harness and all hardware in the box. Engineered and assembled in the USA, the DD8910 is the dual color roof rack scene light kit built for serious overland and off-road builds.

Key Features

• Diode Dynamics DD8910 dual color roof rack scene light kit, red and white output
• Four Stage Series dual-color Rock Lights with angled rack mounts for outward and downward scene coverage
• White output for maximum work area and trail lighting visibility; red output for low-glare, night-vision-safe camp use
• Simple 3-wire system switches instantly between cool white and red output
• Interchangeable UV-coated polycarbonate lenses for flexible color customization
• Optional amber lens swap: install included amber lenses over white emitters to create an amber/red dual color setup
• IP68 waterproof rated for full submersion protection in all weather and trail conditions
• Lumileds Z ES LED emitters for high output and long service life
• Compatible with Prinsu, RCI Offroad, Sherpa, Westcott Designs, and other popular rack systems
• Not compatible with Kuat DEK rack
• Complete wiring harness, 5m extension wires, 4-way splitter, and all mounting hardware included
• Engineered and assembled in the USA
• Limited lifetime warranty

Specifications

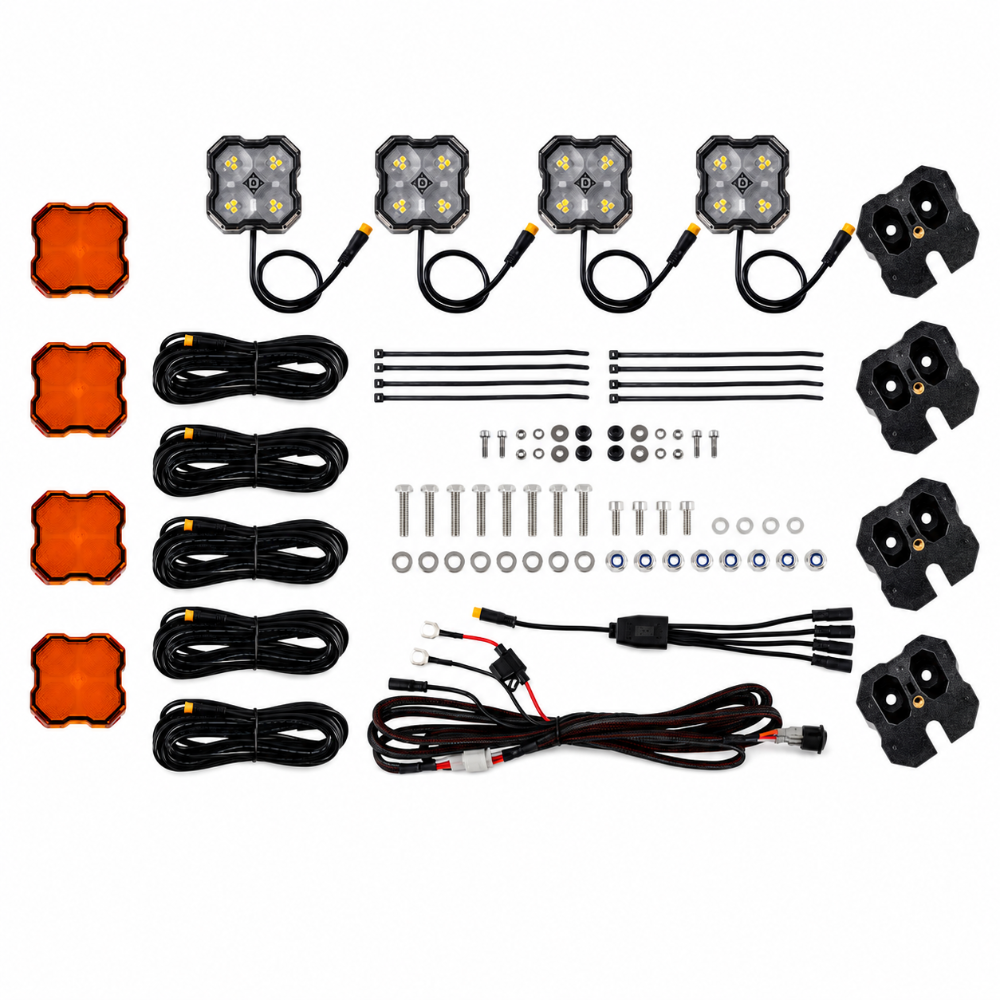

What's Included

• 4 x Diode Dynamics Stage Series Dual-Color Rock Lights (White/Red)
• 4 x Amber Rock Light Lenses (for optional amber/red or white/amber lens swap)
• 4 x Angled Rack Mount Brackets
• 1 x Rock Light Single Output Wiring Harness
• 5 x 5m M8 Extension Wires
• 1 x M8 4-Way Splitter Harness
• Wire Retention Strip
• Zip Ties
• All Mounting Hardware


Frequently Asked Questions

What is the advantage of red output over amber for off-road use on the DD8910?

Red light is preferred for situations where you want maximum darkness adaptation while maintaining some visibility. It does not bleach out night vision the way white or even amber can, making it ideal for rock crawling where you need to stay visually adapted to the trail, for emergency stops on public roads, or for campsite ambiance where you do not want to disturb others. Amber is softer and warmer for general camp use, while red offers the greatest contrast and lowest visual fatigue impact.

Does the DD8910 include amber lenses and how do I use them?

Yes. The DD8910 includes four amber lenses in addition to the standard white diffused lenses pre-installed on the lights. By swapping the white lens for an amber lens, the white emitter output becomes amber, giving you an amber/red dual-color setup instead of white/red. This gives you three possible configurations: white/red with stock lenses, amber/red with lens swap, or you can mix and match across the four lights for a custom setup.

What rack systems is the Diode Dynamics DD8910 scene light kit compatible with?

The DD8910 integrates with popular roof rack and bed rack platforms including Prinsu, RCI Offroad, Sherpa, and Westcott Designs, as well as other racks with compatible rail profiles. It is not compatible with the Kuat DEK rack. Contact Diode Dynamics with your specific rack model if you are unsure about compatibility before ordering.

How does the 3-wire dual color switching system work?

The Stage Series Rock Lights use a 3-wire design where one wire powers the white output, a second wire powers the red output, and the third is a shared ground. Both power wires connect to your switch panel or fuse block, allowing you to independently control white and red from inside the vehicle. No separate controller or app is required. The included harness is wired for this configuration from the factory.

Are the DD8910 lights waterproof enough for water crossings and pressure washing?

Yes. The Stage Series Rock Lights carry an IP68 waterproof rating, which means they are sealed against continuous water immersion beyond 1 meter. This makes them fully suited for water crossings, heavy rain, pressure washing, and muddy trail conditions without risk of moisture intrusion or failure.

How is the DD8910 different from the DD8911?

The DD8910 provides white and red dual-color output. The DD8911 provides white and amber dual-color output. The DD8910 also includes four bonus amber lenses in the box, enabling an optional amber/red configuration by swapping the white lens. Both kits use identical Stage Series Rock Lights, mounts, wiring, and hardware.

What is the total power draw with all four DD8910 lights on high?

Each light draws 1.1 amps at 13.2V on high. With all four lights running simultaneously on high, total draw is approximately 4.4 amps. The included harness and wiring are rated for this load. A 10-amp fuse is appropriate for protecting this circuit.

What warranty comes with the DD8910?

Diode Dynamics backs the DD8910 with a limited lifetime warranty covering defects in materials and workmanship for the life of the product. A 30-day no-restocking-fee return policy is also included for hassle-free returns if the kit does not suit your build.

Installation Instructions

1. Before starting, dry-fit all four brackets to your rack to confirm mounting position and clearance with any installed accessories.
2. Mount each angled bracket to the rack rail using the included hardware, angling the bracket so the light faces outward and downward for maximum scene coverage.
3. Attach one Stage Series Rock Light to each bracket using the included bolt and washer and route the wiring through the bracket channel.
4. Connect each rock light to a 5m M8 extension wire and run extensions along the rack rail, securing with the wire retention strip at regular intervals.
5. Connect all four extension wires to the M8 4-way splitter harness.
6. Route the main harness from the splitter to your switch panel or fuse block, keeping all wiring away from heat sources and moving parts.
7. Connect power leads to your switch outputs and ground to a clean chassis ground point.
8. Secure all wiring with included zip ties and test both white and red outputs before buttoning up the installation.
