Diode Dynamics Roof Rack Scene Light Dual Color - Amber/White - Kit

Turn Your Roof Rack Into a Full Scene Lighting System With Diode Dynamics DD8911

The Diode Dynamics DD8911 Roof Rack Scene Light Kit transforms your overland or off-road build into a fully capable campsite and trail lighting platform. Built around four dual-color Stage Series Rock Lights with angled rack mounts, the DD8911 delivers two independent light modes in one complete kit: crisp cool white for maximum visibility when loading gear, setting up camp, or performing trail repairs, and a switchable amber output that reduces glare and preserves night vision around the campsite. Compatible with popular rack systems including Prinsu, RCI Offroad, Sherpa, Westcott Designs, and more, the DD8911 installs cleanly without bulky universal brackets. Engineered and assembled in the USA by Diode Dynamics, the brand trusted for precision automotive LED lighting, this is the complete roof rack scene light kit for serious overland builds.

Key Features

• Diode Dynamics DD8911 dual color roof rack scene light kit, amber and white output
• Four Stage Series dual-color Rock Lights with angled rack mounts for outward and downward scene coverage
• White output for maximum campsite and work area visibility; amber output for low-glare nighttime use
• Simple 3-wire system switches instantly between cool white and amber output
• Interchangeable UV-coated polycarbonate lenses for flexible color customization
• IP68 waterproof rated for full submersion protection in all weather conditions
• Lumileds Z ES LED emitters for high output and long service life
• Compatible with Prinsu, RCI Offroad, Sherpa, Westcott Designs, and other popular rack systems
• Not compatible with Kuat DEK rack
• Complete wiring harness, 5m extension wires, 4-way splitter, and all mounting hardware included
• Engineered and assembled in the USA
• Limited lifetime warranty

Specifications

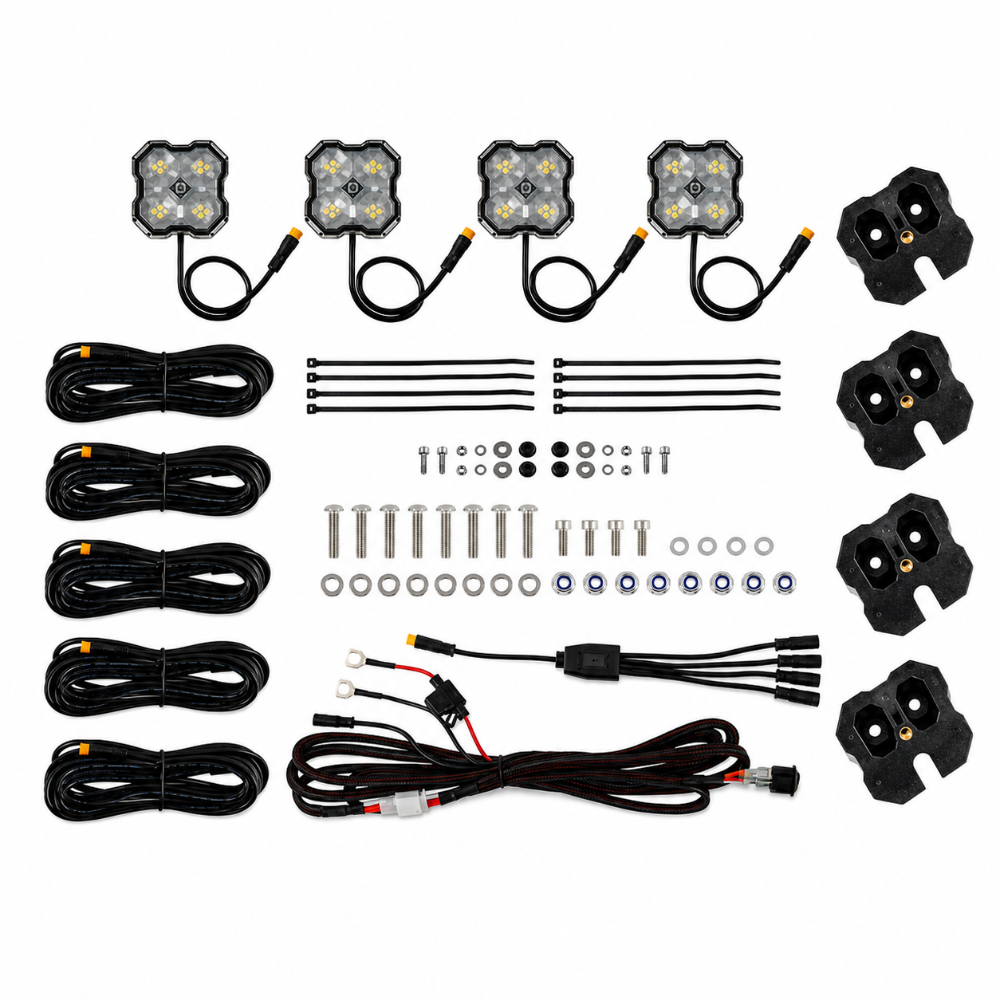

What's Included

• 4 x Diode Dynamics Stage Series Dual-Color Rock Lights (White/Amber)
• 4 x Angled Rack Mount Brackets
• 1 x Rock Light Single Output Wiring Harness
• 5 x 5m M8 Extension Wires
• 1 x M8 4-Way Splitter Harness
• Wire Retention Strip
• Zip Ties
• All Mounting Hardware
• Installation Guide

Frequently Asked Questions

The DD8911 is designed to integrate with popular roof rack and bed rack platforms including Prinsu, RCI Offroad, Sherpa, and Westcott Designs, as well as other racks with compatible rail profiles. It is not compatible with the Kuat DEK rack. If you are unsure about compatibility with your specific setup, contact Diode Dynamics support with your rack model before ordering.

The included Stage Series Rock Lights use a simple 3-wire system. One wire handles the cool white output, a second wire activates the amber output, and the third is the common ground. By wiring both outputs to your switch, you can switch between white and amber from inside the vehicle without any additional controller or programming. The kit includes a wiring harness that handles this switching out of the box.

Yes. The angled rack mount brackets are specifically designed to direct light outward and downward from the rack rails, flooding the area around your vehicle with usable scene light. White output at 800 lumens per light is strong enough for loading, setup, and repair tasks, while the amber output at 410 lumens is ideal for low-glare campsite ambient lighting that does not disturb neighbors or compromise night vision.

IP68 is the highest standard waterproof rating for consumer LED lighting. It means the lights are rated for continuous immersion in water beyond 1 meter depth. For overland and off-road applications, this means the DD8911 lights will handle rain, water crossings, pressure washing, and mud without moisture intrusion or failure.

Yes. The kit includes a Rock Light Single Output Harness, five 5-meter M8 extension wires, a 4-way M8 splitter harness, a wire retention strip, zip ties, and all mounting hardware. For most rack installs, no additional wiring components are required beyond connecting to your vehicle's power source or a switch panel.

The DD8911 includes amber as the secondary output alongside cool white. The DD8910 includes red as the secondary output alongside cool white. Amber is preferred for campsite and overland use because it preserves night vision and produces a warmer, less intrusive light. Red is popular for emergency signaling, rock crawling, and situations where you want strong color contrast. Both kits are otherwise mechanically and electrically identical.

Yes. Diode Dynamics designs the Stage Series Rock Lights with interchangeable lenses, which snap in and out without tools. You can swap between amber and white diffused lenses to change the color output, or experiment with other available Stage Series lens options sold separately.

Each Stage Series Rock Light draws 1.1 amps at 13.2V on high power. With four lights running simultaneously, total current draw is approximately 4.4 amps. This is well within the capacity of a standard automotive circuit with a 10-amp fuse, and the included harness is designed for this load.

Diode Dynamics covers the DD8911 with a limited lifetime warranty. This covers defects in materials and workmanship for the life of the product. Diode Dynamics also offers a 30-day return policy with no restocking fee if the kit does not meet your needs.

Installation Instructions

1. Dry-fit all four brackets to your rack rails before beginning wiring to confirm mounting positions and confirm clearance with any installed accessories.
2. Mount each angled rack bracket to the rack rail using the included hardware, positioning lights to direct output outward and downward for maximum scene coverage.
3. Attach one Stage Series Rock Light to each bracket using the included bolt and washer. Insert the wiring through the bracket channel to keep the harness clean and protected.
4. Connect each rock light to a 5m M8 extension wire and route extensions along the rack rail, using the wire retention strip to secure wiring at regular intervals.
5. Connect all four extension wires to the M8 4-way splitter harness.
6. Route the main harness from the splitter down the vehicle to the switch panel or power source, keeping wiring clear of heat sources and moving parts.
7. Connect the positive leads to your switch or fuse block and route the ground wire to a clean chassis ground point.
8. Secure all wiring with included zip ties and test both white and amber outputs before completing the installation.
