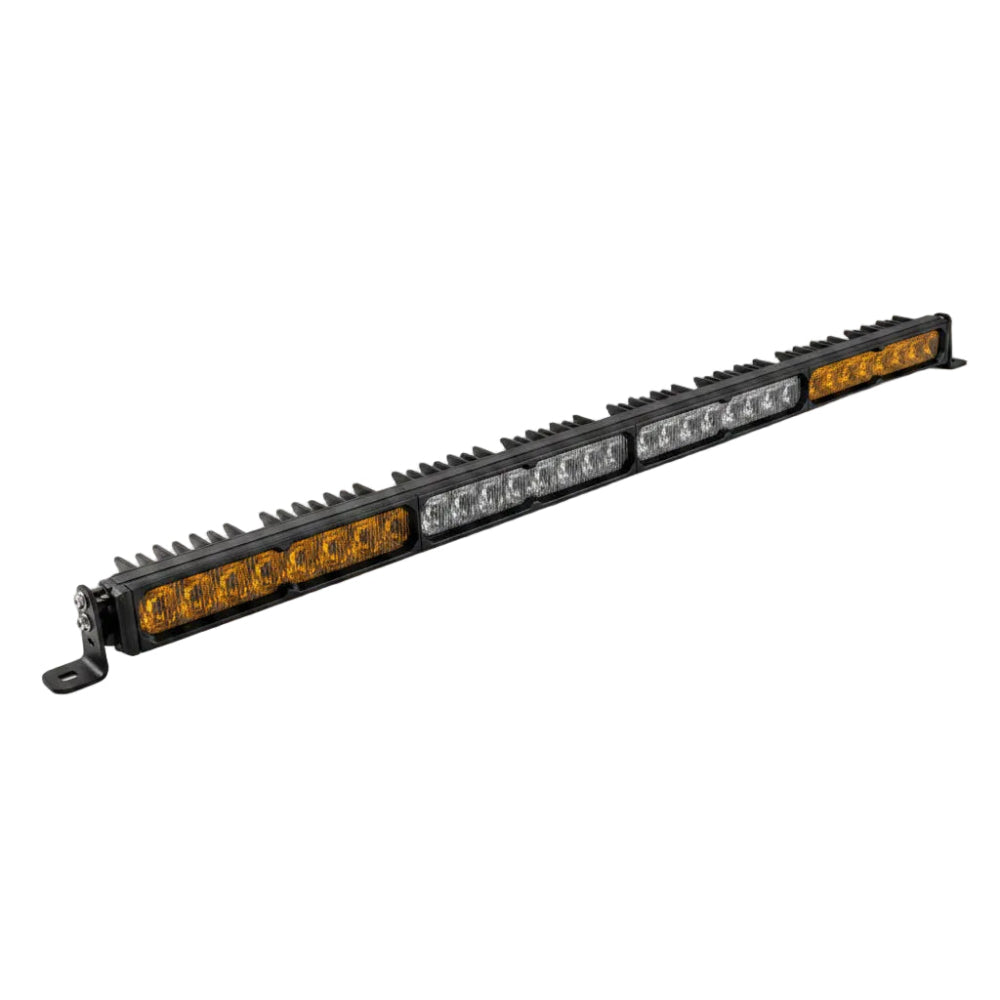

The Diode Dynamics SS40 Pro 40 inch LED light bar, part number DD8399, combines a white SAE Driving center section with yellow Combo Driving outer sections for a balanced beam pattern and selectable multicolor backlighting.
| Application | Electrical Requirement | Mounting Requirement |
|---|---|---|
| Universal application | 9 to 30 volt DC system | Vehicle specific mounting solution required |
| Detail | Value |
|---|---|
| Part Number | DD8399 |
| Product Type | SS40 Pro dual color LED light bar |
| Length Class | 40 inch |
| Output | 225 watts |
| Operating Voltage | 9 to 30 volts DC |
| Current Draw | 17.58 amps at 12.8 volts |
| Beam Pattern | White SAE Driving center, yellow Combo Driving outer sections |
| Combo Driving Beam Angle | 60° x 30° |
| Housing Dimensions | 2.01 x 41.63 x 2.46 inches |
| Water Resistance | IP69K |
| Operating Temperature | Minus 40°C to 85°C |
| Input Connector | Deutsch DT P |
Diode Dynamics designs automotive LED lighting products for vehicle specific and universal off road applications.
This is a universal light bar. Confirm available mounting space, mounting hardware, wiring route, and local lighting requirements before installation.

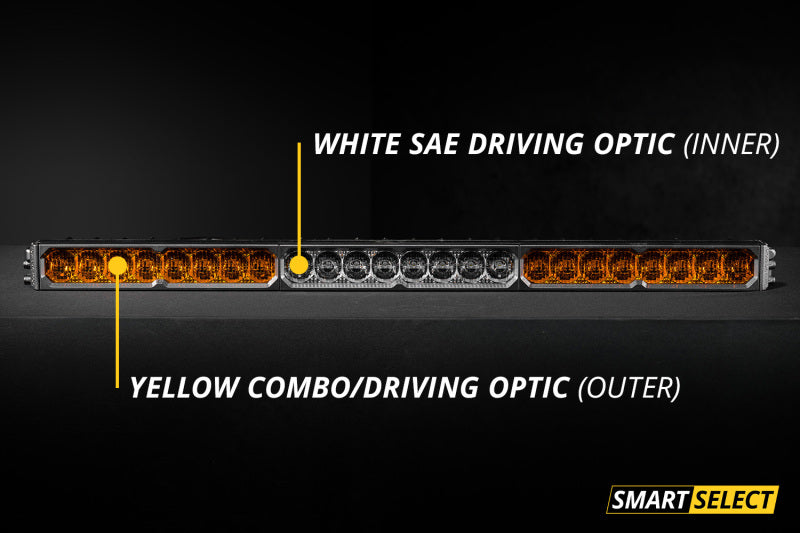

What beam colors does this light bar use?The center section uses white SAE Driving optics and the outer sections use yellow Combo Driving optics.

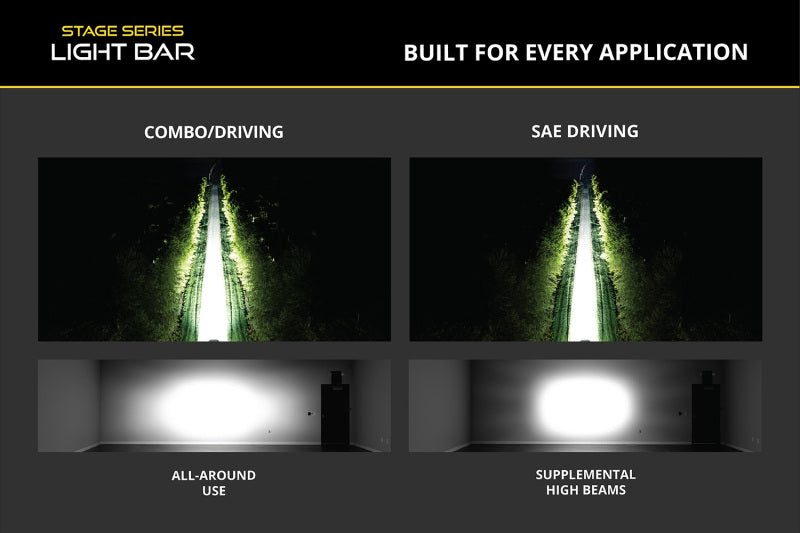

What is the benefit of the Combo Driving beam pattern?The pattern blends forward distance with useful foreground and side illumination.

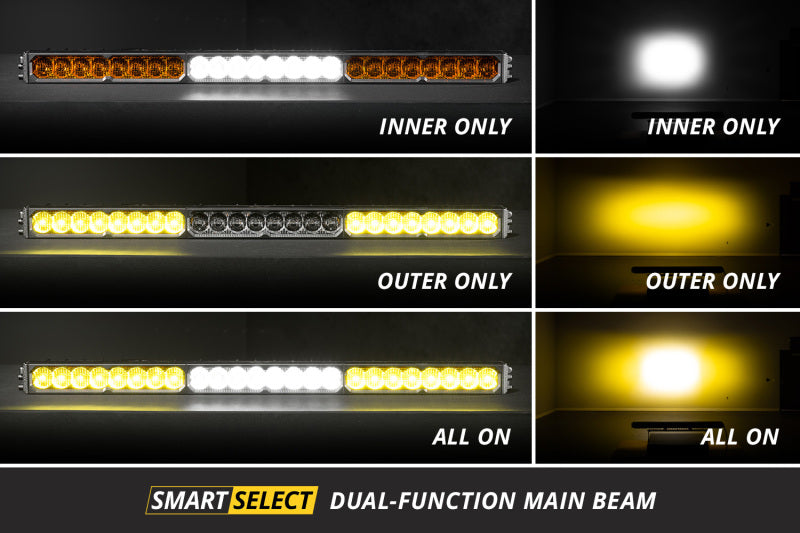

Does the light bar have selectable backlighting?Yes. SmartSelect technology provides a selectable multicolor backlight and startup sequence.
What voltage system is required?Use the light bar on a 9 to 30 volt DC electrical system.

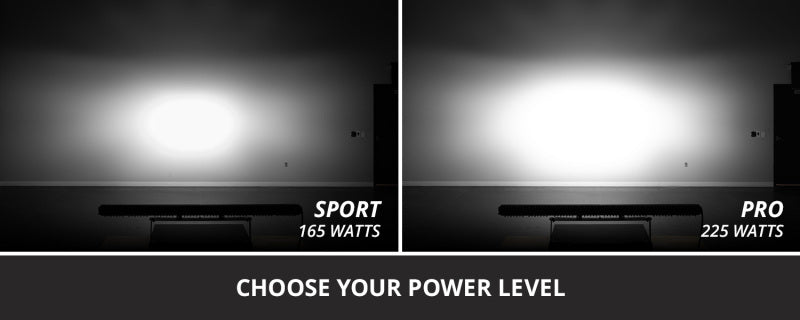

How much power does the Pro model use?The Pro model is rated at 225 watts and draws 17.58 amps at 12.8 volts.

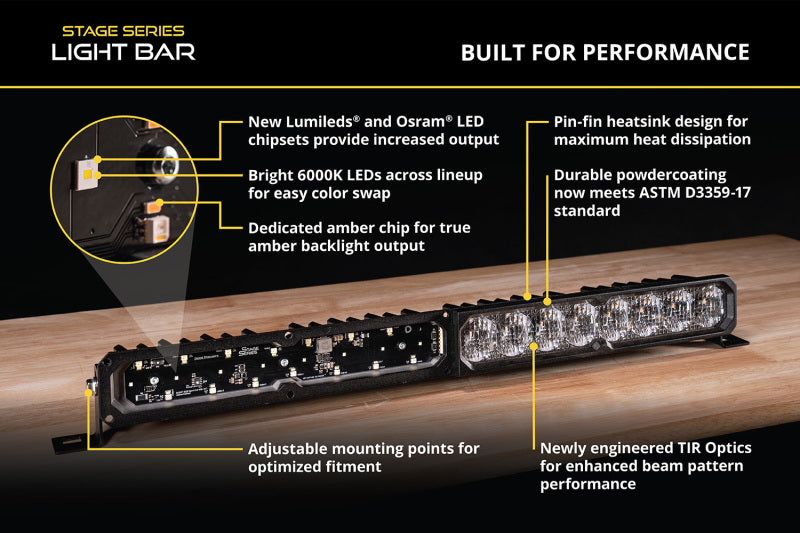

Is the housing weather resistant?The light bar has an IP69K ingress rating and passive heatsink cooling.
How should the light bar be aimed?Mount the light bar securely, route wiring away from heat and moving parts, test operation, and aim it according to applicable local requirements.
