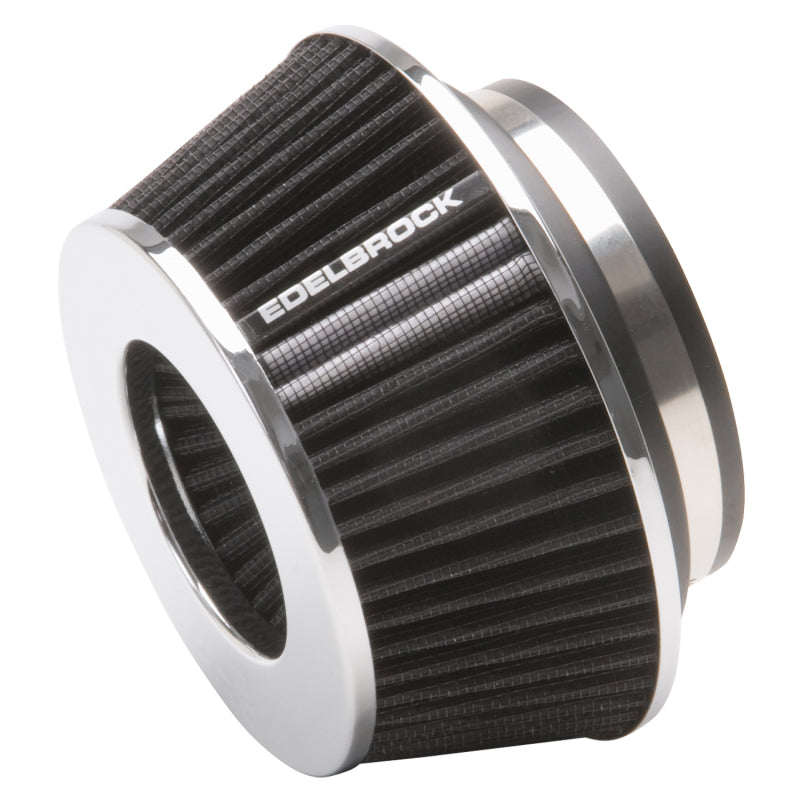

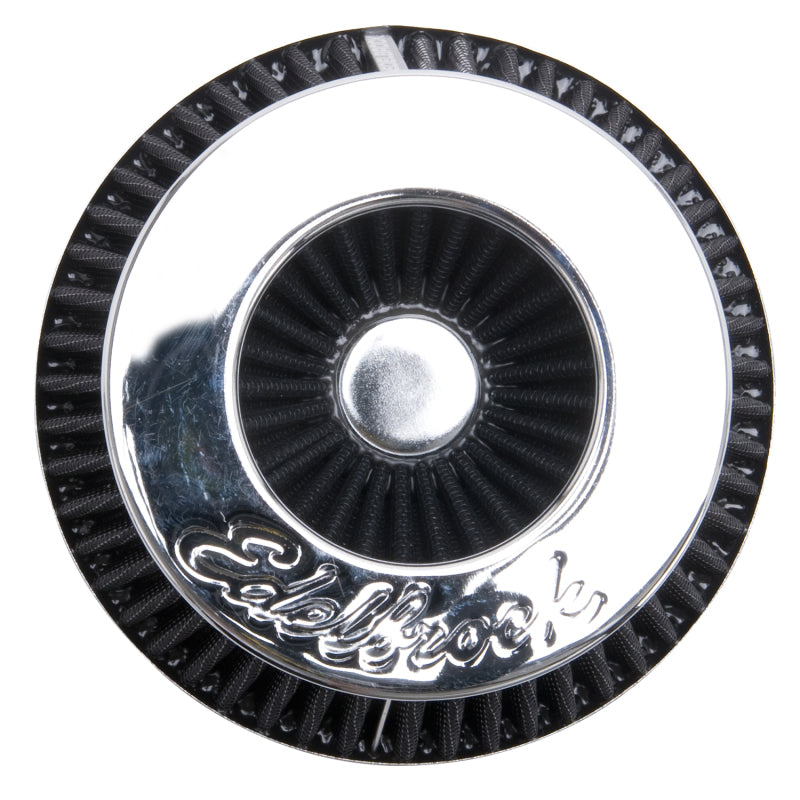

Edelbrock Air Filter Pro-Flo Series Conical 3 7In Tall Black/Chrome

Washable Conical Performance Air Filter with Universal Inlet Compatibility

The Edelbrock Pro-Flo Series EDE43610 is a universal, washable, reusable conical air filter built for 3-inch, 3.5-inch, and 4-inch intake tubes. Three adapter rings ship with every filter, making it compatible with a wide range of cold air intakes, short ram kits, and custom intake fabrications. Edelbrock's exclusive Pro-Charge clean strip changes color when cleaning is due, and the filter arrives pre-oiled and ready to bolt on. At 7 inches tall with a conical profile, the EDE43610 provides a substantially larger filtering surface than a flat-panel OEM element, improving airflow while maintaining filtration efficiency in engines producing up to 340 horsepower.

Key Features

• Universal fitment with three included adapter rings for 3in, 3.5in, and 4in inlet tubes
• Washable and reusable construction eliminates disposable filter replacements
• Conical design maximizes filtering surface area for improved airflow over OEM paper filters
• Triple chrome-plated trim for a show-quality appearance under the hood
• Exclusive Pro-Charge clean strip indicates when cleaning is required
• Arrives pre-oiled and ready to install
• Rated for engine applications producing up to 340 horsepower

Specifications

What's Included

• 1x Edelbrock Pro-Flo conical air filter, pre-oiled (3in inlet, 7in tall)
• 3x Inlet adapter rings (3in, 3.5in, and 4in)

Frequently Asked Questions

What inlet tube sizes does this filter accept?
The filter base accepts 3in tubing directly. The included adapter rings expand compatibility to 3.5in and 4in inlet tubes without additional hardware.

How do I know when to clean the filter?
Edelbrock's Pro-Charge clean strip changes color as it accumulates contamination. When the strip signals, clean the filter with the Edelbrock Pro-Charge Cleaning Kit (part number 43600).

Does this filter come pre-oiled?
Yes. The filter is pre-oiled at the factory and is ready to install straight from the box.

What is the maximum horsepower rating for this filter?
Edelbrock rates this filter for engines producing up to 340 horsepower. Applications exceeding that level should consider a larger filter with higher flow capacity.

Can I use any filter oil or do I need Edelbrock oil?
Edelbrock recommends their Pro-Charge cleaning and re-oiling kit (part 43600) to maintain the filter's filtration specification. Using incompatible oils may void the warranty and compromise filtration efficiency.

How does this filter improve performance over a stock paper element?
The conical shape dramatically increases surface area compared to flat panel elements. More surface area means less restriction at the same filtration efficiency, allowing the engine to breathe more freely at wide-open throttle.

Is this filter legal for street use?
Legality for street use depends on local emissions regulations. In California and other states that require CARB exemption, verify the filter's CARB EO status before installing on a street-registered vehicle.

What clamp is needed to secure the filter to the intake tube?
A standard hose clamp sized for your intake tube diameter is used. The clamp is not included; select the appropriate diameter for your intake tube.

Installation Notes

• Select the correct adapter ring for your intake tube diameter (3in, 3.5in, or 4in) and seat it firmly in the filter base
• Slide the filter onto the intake tube and secure with a hose clamp to the manufacturer's specified torque
• Verify clearance between the filter and hood, engine components, and heat sources before finalizing the install
• Do not over-oil when re-oiling after washing, as excess oil can contaminate mass airflow sensors
• Allow the filter to dry completely after washing before re-oiling and reinstalling
