Control and Travel for Your Diesel Super Duty
Fabtech K2227DL combines a 4-inch radius arm suspension system with front Dirt Logic 4.0 remote reservoir coilovers and rear Dirt Logic 2.25 shocks. The system is built for 2017-2022 Ford F-250 and F-350 4WD diesel trucks with single rear wheels.
Key Features
- Tubular replacement radius arms use reinforced side plates and heavy gusseting for added strength.
- Adjustable alignment cams provide 1.5 to 2 degrees of additional caster.
- K2227DL uses 4.0-inch stainless steel front coilovers with 1.25-inch NitroSteel piston rods and aluminum remote reservoirs.
- A 1/4-inch steel track bar relocation bracket helps center the front axle.
- Rear 5-inch cast iron lift blocks include integrated bump stop provisions.
- Track bar, sway bar, steering stabilizer, brake line, and bump stop relocation hardware is included.
Fitment
| Year | Make | Model | Drivetrain | Engine | Rear Wheel Configuration | Notes |
|---|---|---|---|---|---|---|
| 2017-2022 | Ford | F-250 Super Duty | 4WD | Diesel | Non-dually | Trucks with a two-piece driveshaft require FTS419 |
| 2017-2022 | Ford | F-350 Super Duty | 4WD | Diesel | Non-dually | Trucks with a two-piece driveshaft require FTS419 |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | K2227DL |
| Lift Height | 4 inches |
| Front Shock Configuration | Dirt Logic 4.0 remote reservoir coilovers |
| Rear Shock Configuration | Dirt Logic 2.25 non-reservoir shocks |
| Radius Arm Caster Adjustment | 1.5 to 2 degrees |
| Rear Lift Components | 5-inch cast iron blocks and U-bolts |
| Suggested Tire Size | 35x12.50R18 on 18x9.5 wheels with 4.75-inch backspacing, or 35x12.50R20 on 20x9 wheels with 5-inch backspacing |
| Trimming | Required for the suggested tire and wheel combinations |
| Warranty | Qualifies for the Fabtech Five Sixty 5-year or 60,000-mile powertrain warranty. Registration and program terms apply. |

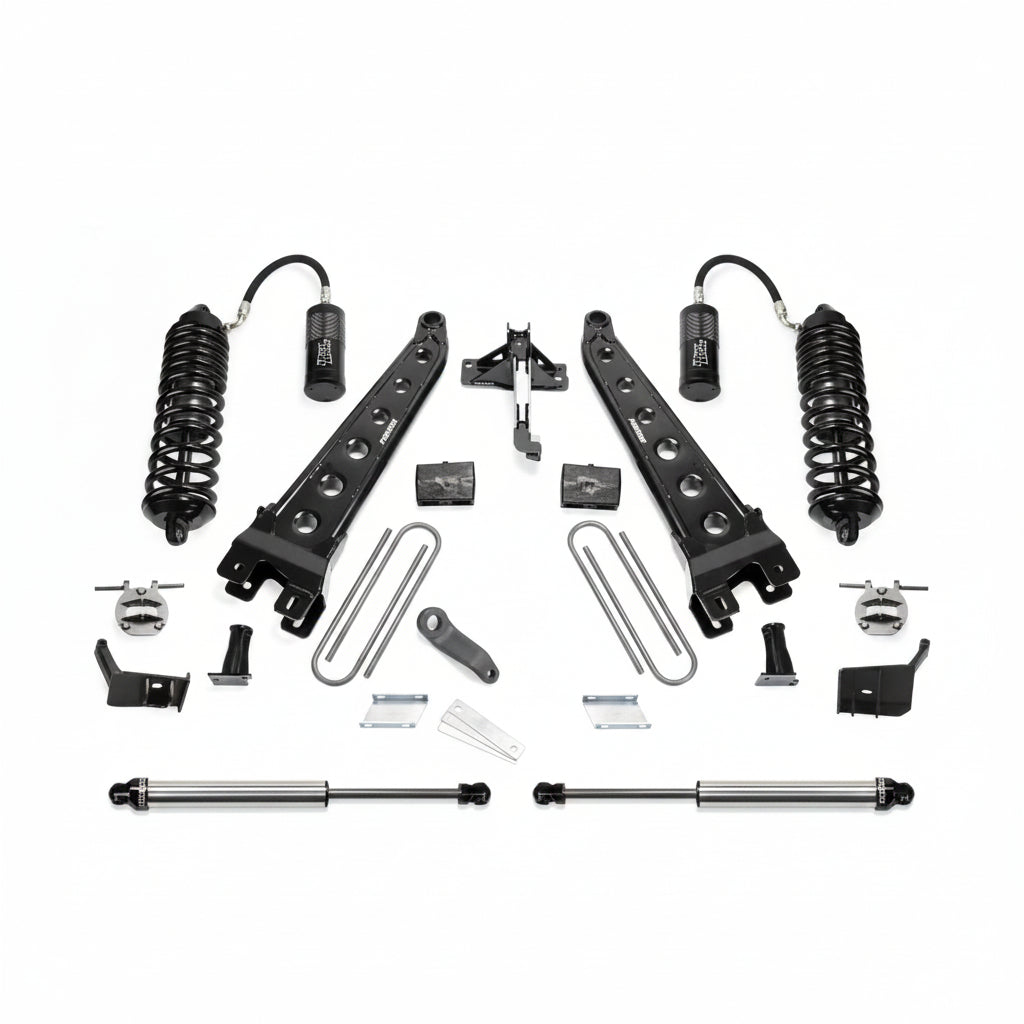

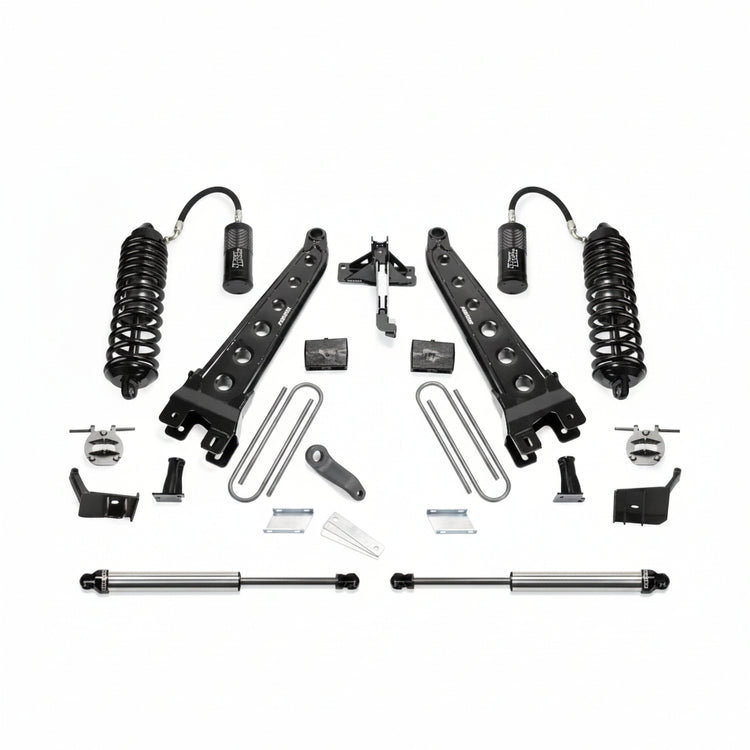

What's Included
- One FTS22215 component box with one pitman arm, two radius arms, two front bump stop extensions, one track bar drop bracket, driver and passenger sway bar drop brackets, steering stabilizer brackets, one alignment cam kit, brake line tabs, bushings, sleeves, installation hardware, lubricant, threadlocking compound, instructions, decals, and a registration card
- One FTS22309 rear block kit with two 5-inch rear blocks, four U-bolts, two rear bump stop extensions, and one hardware kit
- One FTS835242D driver side Dirt Logic 4.0 remote reservoir coilover
- One FTS835242P passenger side Dirt Logic 4.0 remote reservoir coilover
- Two FTS810052 rear Dirt Logic 2.25 non-reservoir shocks
About Fabtech
Fabtech designed K2227DL as a matched front and rear suspension package for the specified diesel Super Duty application. Its radius arms, relocation brackets, coilovers, rear blocks, and shocks work together to provide the intended 4-inch lift and corrected suspension geometry.
FAQ
What is the K2227DL?It is a complete 4-inch radius arm lift system with front Dirt Logic 4.0 remote reservoir coilovers and rear Dirt Logic 2.25 shocks.
Does this kit fit gas engine trucks?No. This system is verified only for the listed Ford F-250 and F-350 4WD diesel applications.
Does this kit fit dually models?No. It is designed for non-dually trucks.
Which shocks are included?The package includes one driver side and one passenger side Dirt Logic 4.0 remote reservoir coilover, plus two rear Dirt Logic 2.25 non-reservoir shocks.
Does the factory coil spring bucket need to be removed?No. The front coilover conversion bolts into the factory coil spring bucket.
Is drilling required?Yes. Installation includes drilling 1/2-inch and 1-1/4-inch holes as directed in the installation guide. Welding is not specified.
What tire sizes are recommended?The installation guide supports 35x12.50R18 tires on 18x9.5 wheels with 4.75-inch backspacing or 35x12.50R20 tires on 20x9 wheels with 5-inch backspacing. Trimming is required.
Is professional installation recommended?Yes. Two professional mechanics are recommended, followed by a complete alignment and headlight adjustment.
What warranty is included?This qualifying system includes the Fabtech Five Sixty 5-year or 60,000-mile powertrain warranty. Registration and all program terms apply.
Do trucks with a two-piece driveshaft need another part?Yes. These trucks require the Fabtech FTS419 driveshaft shim.
Installation Instructions
- Inventory the K2227DL package and read the complete installation guide before disassembly.
- Disconnect the battery, raise the truck on a level surface, support it with rated jack stands, and remove the wheels.
- Remove the required factory sway bar, steering stabilizer, shocks, coil springs, track bar bracket, pitman arm, and radius arms following the guide.
- Install the supplied pitman arm, track bar drop bracket, bump stop extensions, and required steering brackets. Drill only at the specified locations and sizes.
- Install the replacement radius arms, alignment cams, front coilovers, brake line brackets, sway bar drop brackets, and steering stabilizer hardware.
- Install the rear blocks, U-bolts, bump stop extensions, and rear shocks. Tighten all hardware to the values in the installation guide.
- Reinstall the wheels and tires, check clearance through the full steering and suspension range, align the truck, and adjust the headlights.
- Recheck all fasteners after 50 miles and continue regular torque inspections.
California Proposition 65 Warning
This product is subject to California Proposition 65. Visit https://www.P65Warnings.ca.gov for more information.
