Billet Aluminum Engine-Mounted Filtration That Outlasts Every Donaldson Element on Your Powerstroke
The Fleece Performance FPE-FMC-UHFA-1123 is a direct-fit engine-mounted fuel filter system for 2011-2024 Ford 6.7L Powerstroke trucks. It replaces the factory housing and filter (OEM FD-4615 / FD-4625AA) at the same location using billet 6061 aluminum construction and push-to-connect quick-disconnect fittings for clean, leak-free service. Each kit ships with two Donaldson P555095 9-micron elements rated at 99 percent filtration efficiency, providing better protection for CP4 and CP4.2 high-pressure fuel injection pumps than the OEM filter alone. The FPE-FMC-UHFA-1123 is CARB-compliant under Executive Order D-834-17.
Key Features
- Direct OEM replacement at the engine-mounted fuel filter location on 2011-2024 Ford 6.7L Powerstroke Super Duty trucks
- Billet 6061 aluminum housing replaces the factory plastic assembly for long-term durability
- Two included Donaldson P555095 elements: 9-micron, 99% filtration efficiency
- Push-to-connect quick-disconnect fittings simplify filter service without tools
- Replaces OEM FD-4615 (2011-2016) and FD-4625AA (2017-2024) filter assemblies
- Compatible with S&S Diesel CP4 Catastrophic Failure Prevention kit and DCR pump
- CARB compliant under Executive Order D-834-17
- 2017-2024 version includes additional quick-disconnect for the fuel return line
Fitment
| Year Range | Make | Model | Trim |
|---|---|---|---|
| 2011-2024 | Ford | F-250 Super Duty | King Ranch |
| 2011-2024 | Ford | F-250 Super Duty | Lariat |
| 2018-2024 | Ford | F-250 Super Duty | Limited |
| 2013-2024 | Ford | F-250 Super Duty | Platinum |
| 2011-2024 | Ford | F-250 Super Duty | XL |
| 2011-2024 | Ford | F-250 Super Duty | XLT |
| 2011-2024 | Ford | F-350 Super Duty | King Ranch |
| 2011-2024 | Ford | F-350 Super Duty | Lariat |
| 2018-2024 | Ford | F-350 Super Duty | Limited |
| 2013-2024 | Ford | F-350 Super Duty | Platinum |
| 2011-2024 | Ford | F-350 Super Duty | XL |
| 2011-2024 | Ford | F-350 Super Duty | XLT |
Specifications
| Detail | Value |
|---|---|
| Part Number | FPE-FMC-UHFA-1123 |
| UPC | 670875719262 |
| Housing Material | Billet 6061 aluminum |
| Filter Element | Donaldson P555095 |
| Filter Micron Rating | 9 micron |
| Filtration Efficiency | 99% |
| OEM Replaces | FD-4615 (2011-2016), FD-4625AA (2017-2024) |
| CARB Status | Compliant, EO D-834-17 |
| Fitment | 2011-2024 Ford F-250 / F-350 6.7L Powerstroke |

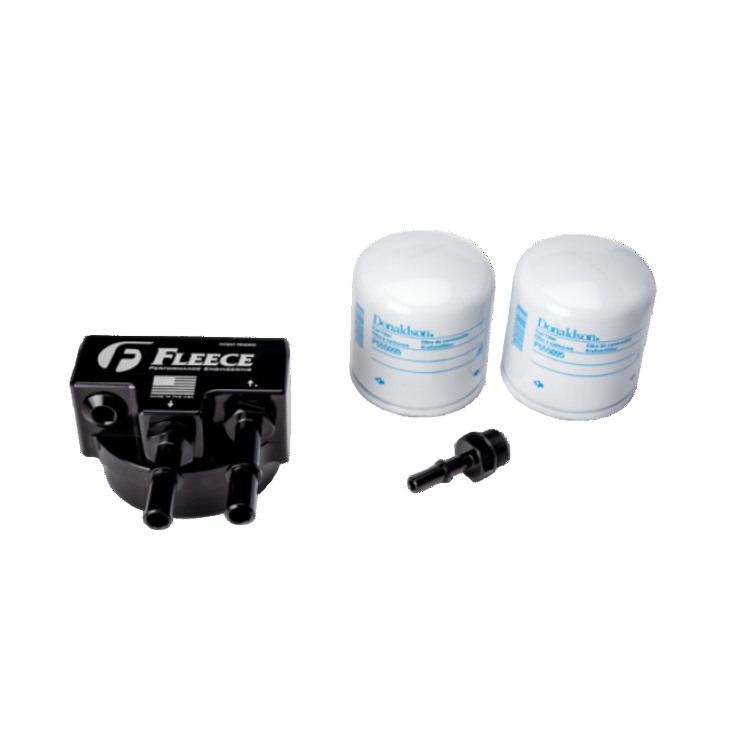

What's Included
- 1 billet aluminum filter housing cap
- 2 Donaldson P555095 9-micron filter elements
- Quick-disconnect inlet and outlet fittings
- Fuel return quick-disconnect (2017-2024 kits)
- Installation hardware and O-rings
About Fleece Performance Engineering
Fleece Performance Engineering specializes in diesel performance fuel system components for Cummins, Duramax, and Powerstroke platforms. Known for the Cheetah and Cheetah Jr. lift pump systems, Fleece designs every product to address real-world diesel failures, from CP4 pump contamination protection to fuel supply solutions for high-horsepower builds. All Fleece products are engineered and assembled in the USA.
Frequently Asked Questions
Does FPE-FMC-UHFA-1123 fit both 2011-2016 and 2017-2024 6.7L Powerstroke trucks?Yes. The FPE-FMC-UHFA-1123 covers both generations of the 6.7L Powerstroke. The 2017-2024 version of the kit includes an additional quick-disconnect fitting for the revised fuel return line routing on the updated engine.
What OEM filter does FPE-FMC-UHFA-1123 replace?The FPE-FMC-UHFA-1123 replaces the factory Ford OEM filter housing and element. The OEM cross-reference is FD-4615 for 2011-2016 trucks and FD-4625AA for 2017-2024 trucks.
Is this filter compatible with the S&S Diesel CP4 kit?Yes. The FPE-FMC-UHFA-1123 is confirmed compatible with the S&S Diesel CP4 Catastrophic Failure Prevention kit and S&S DCR pump systems. It works within the S&S fuel system plumbing without conflict.
What micron rating is the Donaldson P555095 element included with FPE-FMC-UHFA-1123?The Donaldson P555095 elements included in the FPE-FMC-UHFA-1123 kit are rated at 9 microns with 99 percent filtration efficiency, providing finer particle protection than many OEM Powerstroke filter elements.
Is FPE-FMC-UHFA-1123 CARB compliant?Yes. The FPE-FMC-UHFA-1123 carries CARB Executive Order D-834-17, confirming it complies with California Air Resources Board emissions regulations for use on the covered vehicle applications.
How often should I replace the Donaldson elements in the FPE-FMC-UHFA-1123?Fleece recommends replacing the Donaldson P555095 elements on the same interval as the factory Powerstroke fuel filter, typically every 10,000-15,000 miles or as indicated by the fuel filter monitor in the instrument cluster.
Does FPE-FMC-UHFA-1123 require any modifications to the fuel lines?No permanent modifications are required. The FPE-FMC-UHFA-1123 uses push-to-connect quick-disconnect fittings that connect directly to the factory fuel line quick-connect ends at the engine-mounted filter location.
Will this filter help protect my CP4 pump from water-in-fuel damage?The 9-micron Donaldson elements in the FPE-FMC-UHFA-1123 provide improved fine-particle filtration compared to the OEM filter, which helps reduce abrasive particle contamination to the CP4.2 injection pump. For maximum CP4 protection, Fleece recommends pairing this filter with a lift pump and water-separator system.
Installation Instructions
- Relieve fuel system pressure by removing the fuel cap and cranking the engine briefly with the fuel pump fuse removed.
- Clean the area around the factory engine-mounted fuel filter housing.
- Disconnect the factory fuel line quick-connects at the inlet and outlet of the OEM filter housing.
- Remove the OEM filter housing and discard.
- Install the FPE-FMC-UHFA-1123 billet housing using the provided O-rings and hardware.
- On 2017-2024 trucks: connect the additional fuel return quick-disconnect fitting as shown in the included instructions.
- Insert the two Donaldson P555095 elements into the housing and secure the cap hand-tight.
- Reconnect the fuel line quick-connects at the inlet and outlet fittings.
- Reinstall the fuel pump fuse and cycle the ignition key three times to prime the fuel system before starting.
- Start the engine and inspect all connections for leaks before operating.
WARNING: This product can expose you to chemicals including lead and phthalates, which are known to the State of California to cause cancer and reproductive harm. For more information go to www.P65Warnings.ca.gov.
