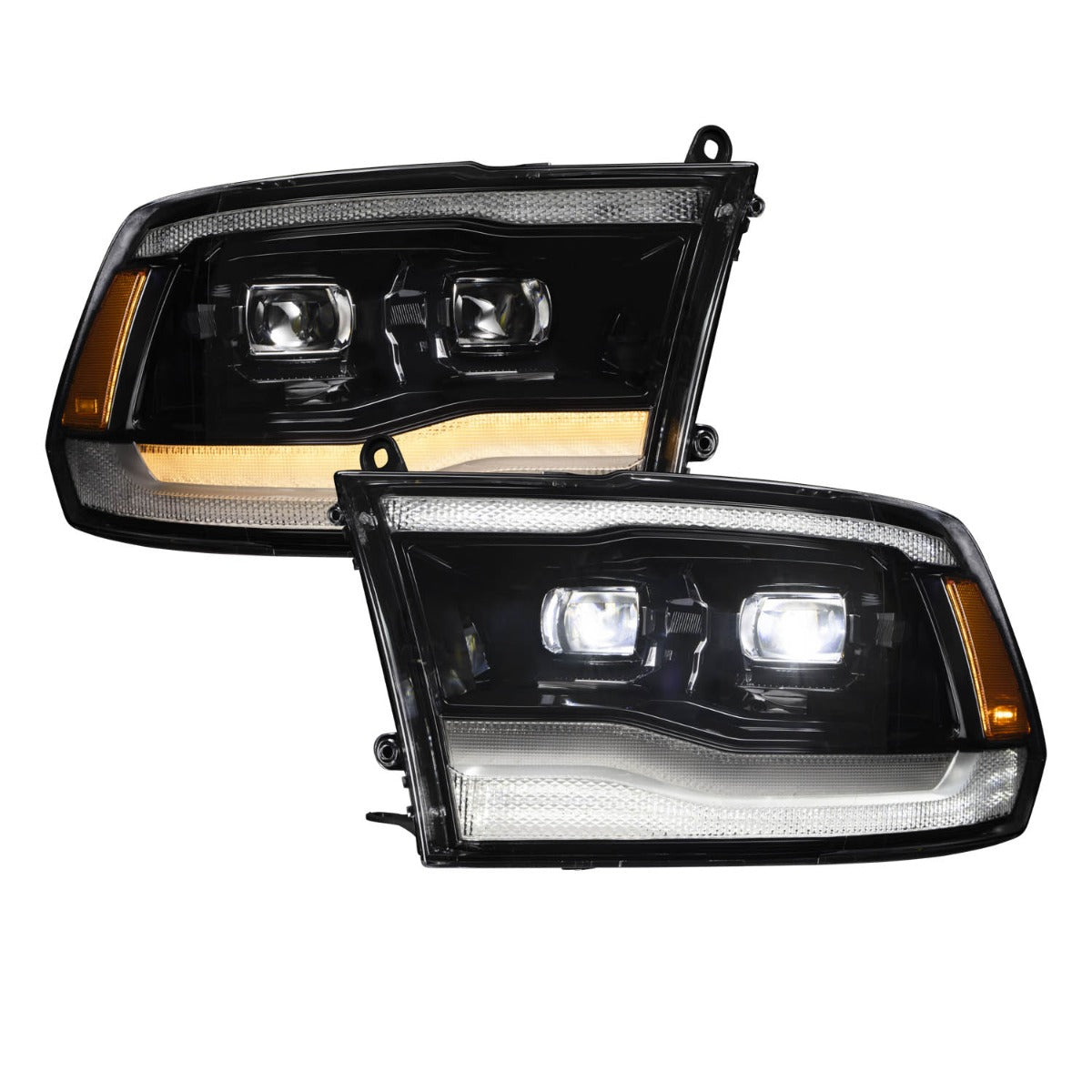

Form Lighting FL0016 is a direct-fit headlight upgrade for 2009-2018 Ram 1500, 2009-2018 Ram 2500, 2009-2018 Ram 3500, and 1 more verified applications. It uses an application-matched housing and connector for a clean replacement installation. Confirm the complete year, make, model, trim, and factory lighting configuration before ordering.
Key Features
- Exact Form Lighting MPN FL0016
- Sequential lighting function
- LED projector optical design
- OEM-size plug-and-play connector
- As shown appearance
- Two-year Form Lighting limited warranty
- Left and right assemblies supplied as a pair
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| 2009-2018 | Ram | 1500 | Headlamp | These lamps are not compatible with the Big Horn trim levels. | Official application group: 1500/2500/3500 |
| 2009-2018 | Ram | 2500 | Headlamp | These lamps are not compatible with the Big Horn trim levels. | Official application group: 1500/2500/3500 |
| 2009-2018 | Ram | 3500 | Headlamp | These lamps are not compatible with the Big Horn trim levels. | Official application group: 1500/2500/3500 |
| 2019-2024 | Ram | 1500 Classic | Headlamp | These lamps are not compatible with the Big Horn trim levels. |
Fitment tags are limited to year, make, and model. Trim, chassis, engine, and factory-lighting requirements remain application notes.
Specifications
| Brand | Form Lighting |
|---|---|
| Manufacturer Part Number | FL0016 |
| Product Type | Headlight |
| Placement | Front |
| Finish | As shown |
| Condition | New |
| Power (watts) | 42 |
| Operating Voltage | 9-16V |
| Operating Temperature | -40C to 85C (-40F to 185F) |
| Connector(s) | OEM-Size Plug and Play |
| Materials | UV Coated Polycarbonate Lens |
| Intrusion Ratings | IP67 Weatherproof |
| Unit Weight (lb) | 10 |
| Product Weight (lb) | 20 |
| Shipped Weight (lb) | 22 |

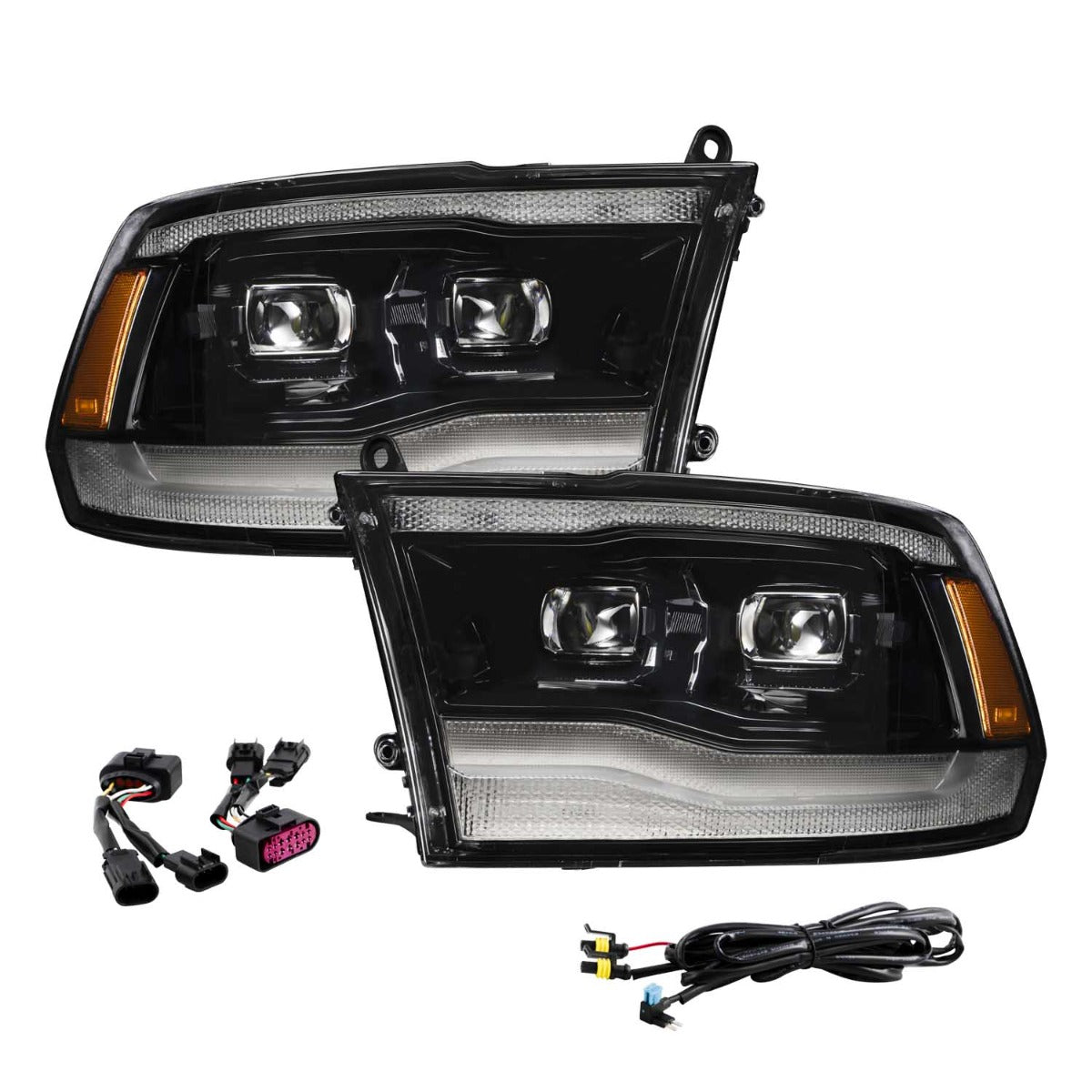

| In the Box | One (1) Left Headlamp One (1) Right Headlamp One (1) DRL Harness Two (2) Halogen Headlamp Adapters |
What's Included
Pair (Left and Right Side). Wiring adapters, harnesses, and hardware are included only when supplied by Form Lighting for MPN FL0016.
About Form Lighting
Form Lighting develops vehicle-specific LED replacement lamps with modern optics, OEM-grade materials, plug-and-play connectors, and US-based product support.
Related Form Lighting Products
- Shop all Form Lighting products
- Form Lighting - 2003 Ram LED License Plate Lights (pair)
- Form Lighting - 2009 Ram LED Mirror Lights (pair)
- Form Lighting 2019-2024 Ram 1500 Sequential LED Projector Headlights (pair)
Frequently Asked Questions
Will Form Lighting FL0016 fit my vehicle?
It fits the applications in the Fitment table. Confirm the trim, body style, factory lamp type, and connector because those details can change within the same model year.
Is Form Lighting FL0016 plug-and-play?
It uses OEM-size connectors for the supported applications. Some headlight kits also use supplied adapters or a daytime-running-light harness, so review every included component before installation.
What should I test after installing Form Lighting FL0016?
Test every applicable running-light, brake, reverse, turn-signal, high-beam, low-beam, and startup function before final assembly. Replacement headlights must also be aimed correctly.
Installation Instructions
Estimated time: 1-2 hours. Tools: Basic Toolset. Modification: None. Disconnect power as appropriate, protect painted surfaces, transfer any specified factory components, connect all supplied adapters, test every function, then secure the assemblies. Aim headlights after installation.
