SKU: 981-30-602-3 | UPC: 788000427972

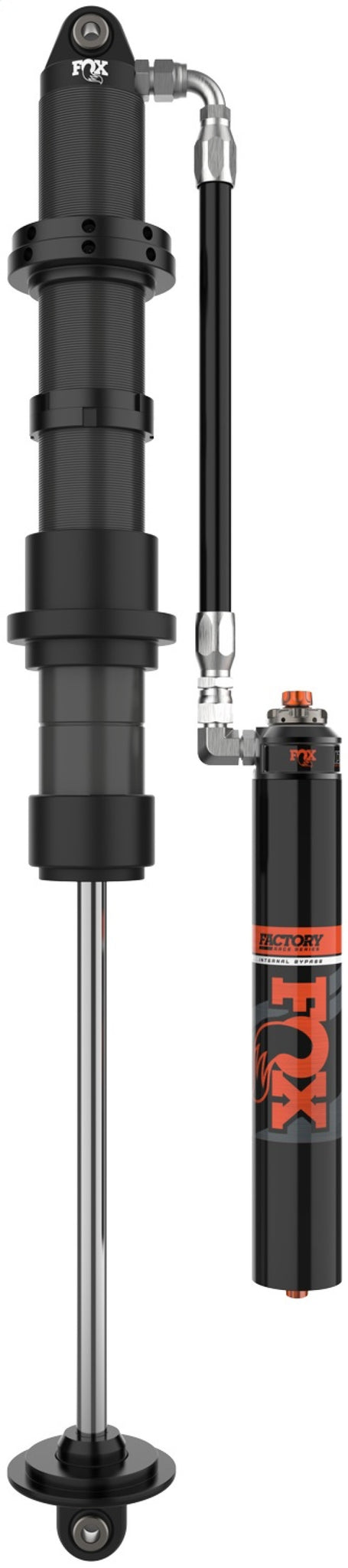

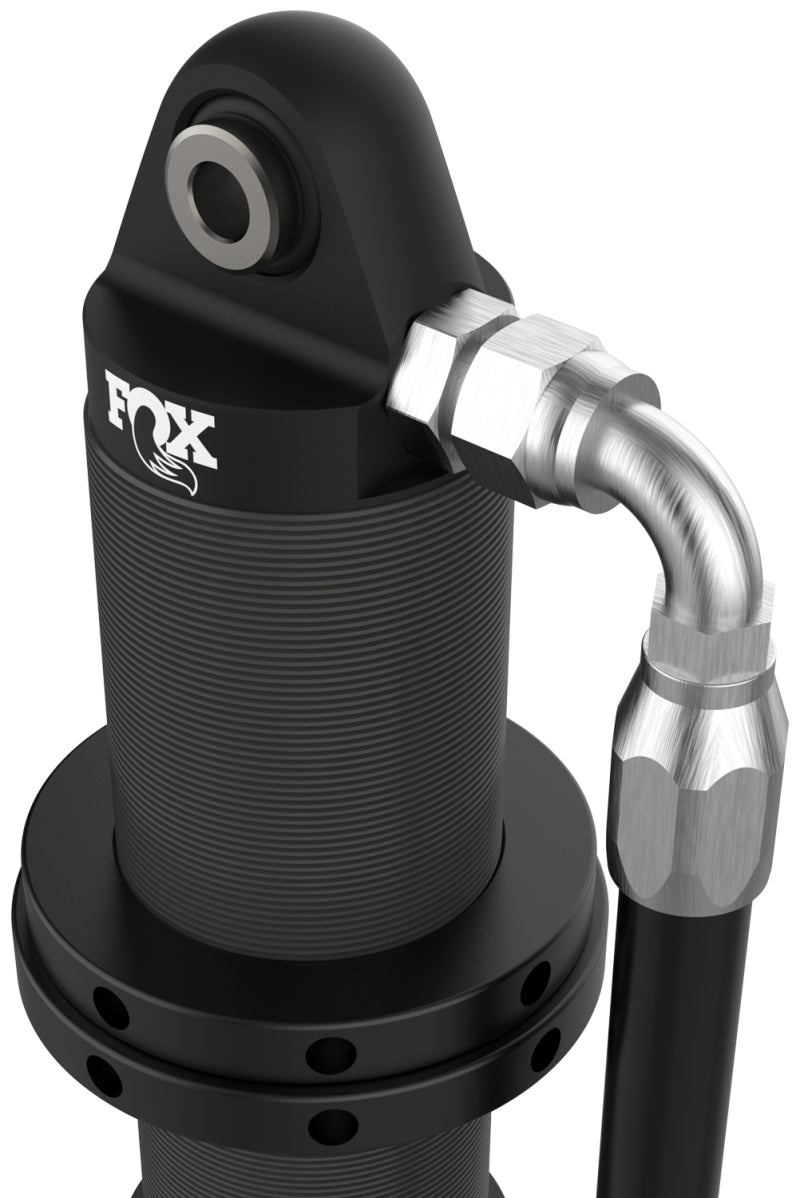

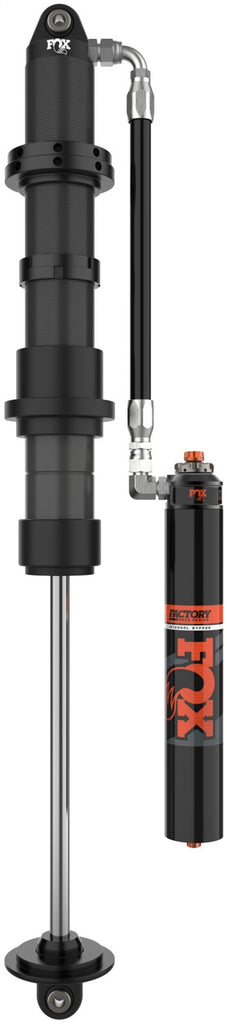

Fox 3.0 Factory Race 12in Coil-Over Internal Bypass Remote Shock - DSC Adjuster for 2019-2024 Ram 2500/3500 4x4 Rear Passenger Side
This Fox Factory Race Series coil-over shock upgrades the rear passenger side suspension on 2019-2024 Ram 2500 and 3500 4x4 models equipped with factory coil springs. Patented internal bypass technology provides a plush ride zone while building pressure for vehicle support across rough terrain. Dual Speed Compression adjustment tunes performance for varying loads, speeds, and conditions.
Key Features
- Patented Internal Bypass Technology: Oil flows around the piston in designated zones for near-endless travel feel, then restricts to create pressure for precise control and support
- Dual Speed Compression (DSC) Adjuster: Remote knob adjusts high-speed and low-speed compression independently to match weight, terrain, and driving style
- 3.0-Inch Aluminum Body: Lightweight yet strong construction with remote cactus cooler reservoir dissipates heat in extreme conditions
- 7/8-Inch Shaft with Redundant Seals: Hard-chrome shaft and dual seals ensure leak-free operation under high-pressure off-road abuse
- 12-Inch Travel: Extended length 28.25 inches, compressed 16.25 inches, eyelet upper/lower mounts for direct OEM replacement
Product Notes
- Rear passenger side specific for Ram HD models with factory coil spring rear suspension
- Excludes models with factory air ride or Ram Power Wagon suspension
- Special order item, verify stock before ordering
Installation Notes
- Professional installation recommended.
- Uses factory mounting locations, eyelet style upper and lower mounts
- Coil spring preload adjustment required during install for ride height
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2019-2024 | RAM | 2500 | 4x4 (w/ Factory Coil Springs, excl. Power Wagon & Air Ride) |
| 2019-2024 | RAM | 3500 | 4x4 (w/ Factory Coil Springs, excl. Power Wagon & Air Ride) |
Why Choose Fox?
- Race-developed components proven in desert racing and extreme off-road events
- High-flow pistons and bypass designs handle brutal conditions without fade
- Exact engineering matches OEM geometry for plug-and-play fit
Frequently Asked Questions
-
Q: Will this shock fit 2019-2024 Ram 2500 Power Wagon?
A: No, this is designed for standard 4x4 models with factory coil springs. Power Wagon uses different suspension geometry. -
Q: What materials are used in construction?
A: 3-inch diameter aluminum body, 7/8-inch hard-anodized shaft, and high-temp seals with remote aluminum reservoir. -
Q: What warranty coverage applies?
A: Fox provides a limited lifetime warranty against manufacturing defects for original owner with proof of purchase.
Shipping & Handling
- Method: UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Protective cardboard box 32 x 10 x 10 inches
- Weight: 20.3 lbs
