Every Soft Part Needed to Reseal One 2.0 Performance Series Damper
This is the Fox 803-23-705 seal rebuild kit, the set of wipers, O-rings and wear bands that reseals a single Fox 2.0 Performance Series shock with a 0.625 in (5/8 in) shaft. It covers both the shock body and the reservoir, so an IFP damper or a remote-reservoir damper can be serviced from the one kit.
Key Features
- Services one shock per kit, covering both the shock body and the reservoir end.
- Sized for the 5/8 in shaft used across Fox 2.0 Performance Series truck and buggy shocks.
- Applies to steel and aluminium bodies, and to internal bypass, external bypass, piggyback and remote-reservoir variants.
- Includes the rubber nitrile needle air-valve pellet measuring 0.275 in diameter by 0.250 in long.
- Includes the reservoir piston wear band and the reservoir end-cap O-ring, which are the parts most often overlooked in a partial reseal.
- Matches dampers charged through the needle tool or the Fox 803-01-213 nitrogen filling tool.
- UTV shocks are excluded and need a different kit identified by the shock serial number.
Fitment
| Application | Detail |
|---|---|
| Shock family | Fox 2.0 Performance Series |
| Shaft diameter | 0.625 in / 5/8 in |
| Damper types | IFP and reservoir, including internal bypass, external bypass, piggyback and remote reservoir |
| Body material | Steel or aluminium |
| Coverage | One shock per kit |
| Not covered | UTV shocks, which use a different kit selected by shock serial number |
This is a component service kit rather than a vehicle part, so it carries no vehicle fitment. Selection is by shock family and shaft diameter, not by make and model.
Specifications
| Detail | Value |
|---|---|
| Brand | Fox |
| MPN | 803-23-705 |
| Kit revision suffix | A |
| Shaft diameter | 0.625 in / 5/8 in |
| Shock family | 2.0 Performance Series |
| Damper types covered | IFP and reservoir |
| Shocks serviced per kit | One |
| Needle pellet size | 0.275 in diameter x 0.250 in long, nitrile |
| Scope | Shock body seals plus reservoir seals |
What's Included

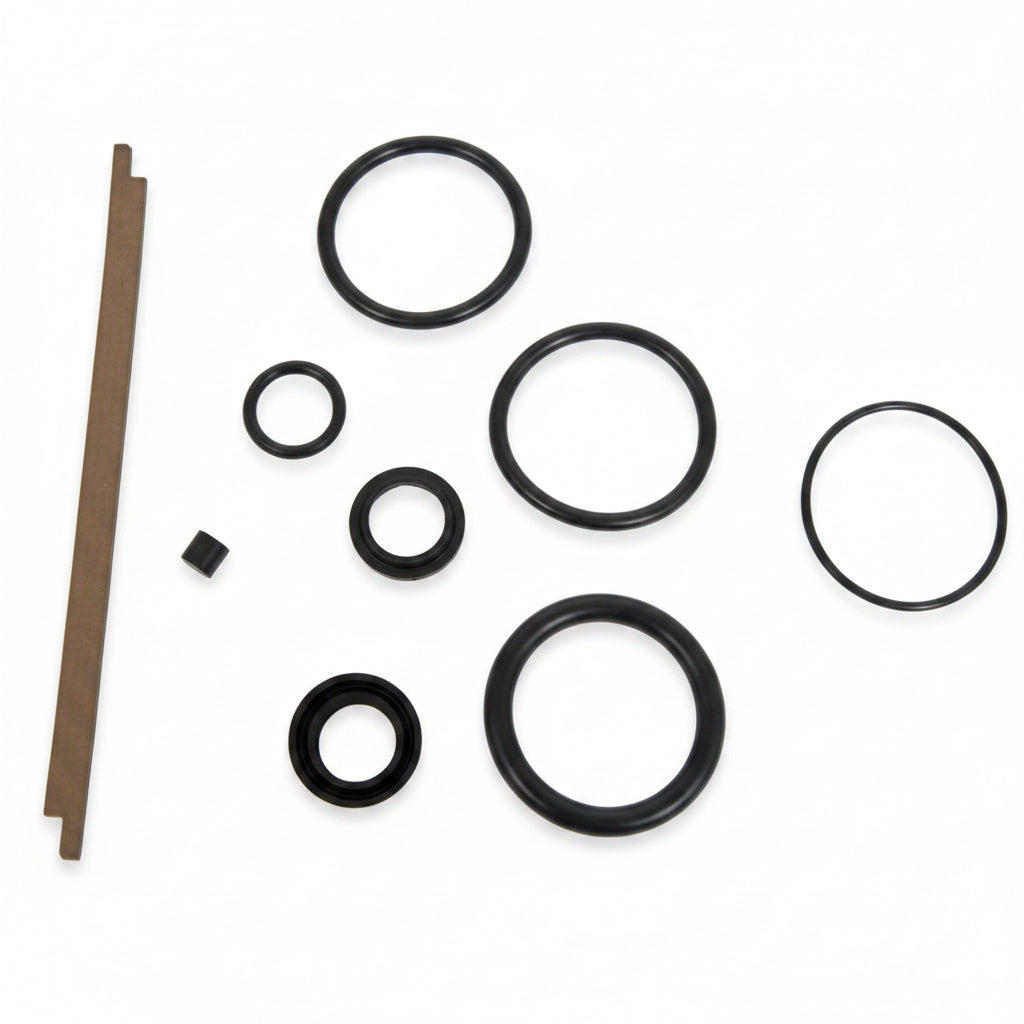

- Shock body: one bearing cap wiper seal, one shaft bearing and guide wiper seal, one internal O-ring for the shaft bearing and guide, one external O-ring for the shaft bearing and guide, one thin O-ring under the piston wear band, and one nitrile needle air-valve pellet
- Reservoir: one soft wear band for the reservoir piston, one thick O-ring for the reservoir piston, and one O-ring for the reservoir end cap
About FOX
Fox's Performance Series is the rebuildable end of its aftermarket damper range, and seal kits are grouped by body size and shaft diameter rather than by vehicle. This kit belongs to the 2.0-inch body family with the 5/8 in shaft. Because it carries the reservoir seals alongside the body seals, one kit resets both halves of a remote-reservoir or piggyback damper.
FAQ
Which parts of the shock does this kit reseal?It covers the seals for both the shock body and the remote or piggyback reservoir on a single 2.0 Performance Series unit with a 0.625 in shaft, rather than just the shaft seal head.
How many shocks does one kit service?One. A set of four dampers needs four kits.
Does it fit a 2.5 or 3.0 body shock?No. It is specific to the 2.0-inch body family with the 5/8 in shaft.
Will it work on a UTV shock?No. Fox directs UTV shocks to a different kit, selected by the shock's serial number.
Does it cover an internal bypass shock?Yes, provided it is a 2.0 Performance Series damper on the 5/8 in shaft. Internal bypass, external bypass, piggyback and remote reservoir variants are all covered.
What tools does the rebuild need?A bottom end-cap removal tool and a shaft bullet, plus a nitrogen source. The needle tool or the Fox 803-01-213 filling tool handles the recharge.
What if the shock has a 10-24 nitrogen screw port?Those dampers cannot be recharged without an adapter valve or the Fox charge tool, so plan the tooling before disassembly.
Is the air-valve pellet included?Yes, the nitrile needle pellet is in the kit at 0.275 in diameter by 0.250 in long.
Are shock oil and nitrogen supplied?No. The kit is seals and soft parts only; oil and gas are purchased separately.
Installation Instructions
- Work on a clean bench with the damper fully discharged of nitrogen before any disassembly, and wear eye protection.
- Note the shaft's extended position and the reservoir orientation before taking anything apart, so it can be reassembled the same way.
- Remove the bottom end cap using the correct end-cap removal tool rather than improvising, then drain and measure the old oil volume.
- Withdraw the shaft assembly, strip the old wipers, O-rings and wear bands, and inspect the shaft and bore for scoring before reusing them.
- Fit the new bearing-cap wiper, shaft bearing wiper, internal and external O-rings and the thin O-ring under the piston wear band, lubricating each seal with shock oil.
- Use a shaft bullet over the shaft end when passing the seal head back on, so the new seals are not cut on the threads or shoulder.
- Fit the reservoir piston wear band, its thick O-ring and the end-cap O-ring, then reassemble the reservoir.
- Refill with the specified oil volume, bleed the damper, fit the new nitrile needle pellet, and recharge with nitrogen using the needle tool or the Fox 803-01-213 filling tool.
- Cycle the damper by hand and check for leaks at the shaft, end cap and reservoir before refitting it to the vehicle.
