Built to Outlast the Stock Bellhousing

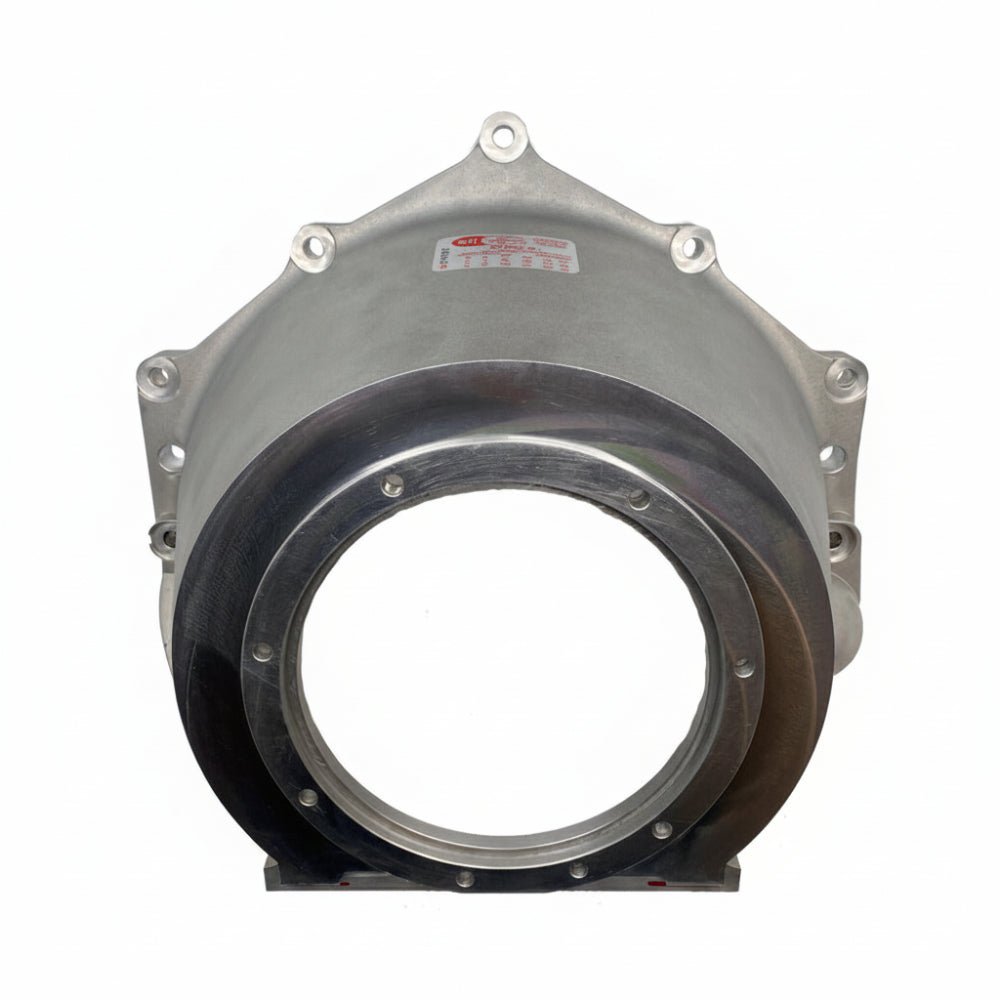

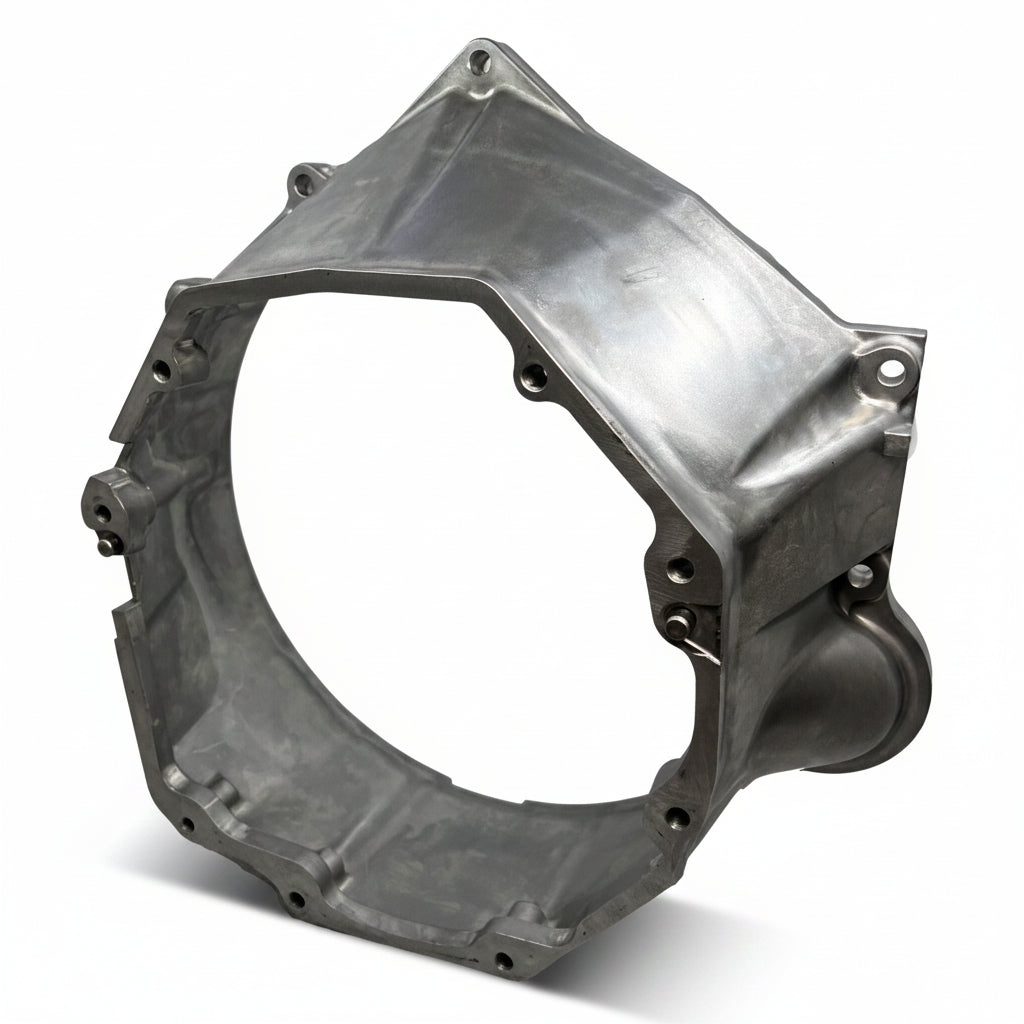

This FTI F1042 Ultra-Bell bellhousing bolts directly onto an OEM TH350 or TH400 case and replaces a stock bellhousing that has cracked, been damaged, or simply is not strong enough for a serious build. It is cast as one solid piece of aluminum, which makes it noticeably stronger than the factory bellhousing it replaces. The housing is SFI 30.1 certified, so it meets the safety requirement most sanctioning bodies require for high horsepower automatic transmission cars at the track.
Key Features
- One-piece cast aluminum construction for added strength over the factory bellhousing
- SFI 30.1 certified with an included certification tag
- Bolts directly to an unmodified factory TH350 or TH400 case
- Matches the GM small block and big block V8 bell pattern, including LS and LT based engines
- Natural cast aluminum finish
- Sized to clear most stock floorboards without modification
- Supports a torque converter up to 11 inches with an 11.5 inch or 10.75 inch bolt circle
Fitment
| Application | Compatibility |
|---|---|
| Transmission | GM TH350 (non lock-up) and TH400 automatic transmissions |
| Case requirement | Unmodified factory OEM case |
| Engine bell pattern | GM small block V8, big block V8, and LS or LT based V8 |
Specifications
| Detail | Value |
|---|---|
| Material | Cast aluminum, one piece |
| Finish | Natural |
| SFI rating | 30.1 |
| Maximum converter size | 11 in with 11.5 in or 10.75 in bolt circle |
| Package width | 17.2 in |
| Package height | 7.6 in |
| Package depth | 17.3 in |
| Quantity | Sold individually |
| Manufacturer part number | F1042 |
What's Included
- 1 FTI Ultra-Bell bellhousing
- 8 flange head mounting bolts
- 1 bell to pump gasket
- 2 pipe plugs
- 8 sealing rings
- 1 SFI certification tag
About FTI Performance
FTI Performance builds automatic transmissions, torque converters, and transmission components for drag racing and high performance street applications. The company focuses on SFI certified parts that hold up under repeated full throttle abuse, and its Ultra-Bell housings are a direct response to stock bellhousings that crack or flex under increased power.
FAQ
What is the F1042?
It is an SFI 30.1 certified aluminum bellhousing that bolts to an unmodified factory GM TH350 or TH400 case and matches the small block, big block, and LS or LT bell pattern.
Does this bellhousing require case modification?
No. It bolts directly to a factory OEM case without cutting or machining.
Will it fit under stock floorboards?
Yes, it is sized to clear most stock floorboards without modification.
What transmissions does it fit?
GM TH350 transmissions without a lock-up torque converter and GM TH400 transmissions.
What engines does it bolt to?
GM small block V8, big block V8, and LS or LT based V8 engines that use the standard GM bell pattern.
What is the largest torque converter it accepts?
An 11 inch converter with an 11.5 inch or 10.75 inch bolt circle.
Is a block plate or clutch fork included?
No. This is an automatic transmission bellhousing and does not include a block plate or clutch fork.
Does it include the mounting hardware and gasket?
Yes, it ships with the mounting bolts, sealing rings, bell to pump gasket, pipe plugs, and SFI certification tag.
Installation Instructions
- Remove the transmission from the vehicle and support it securely on a stand.
- Remove the factory bellhousing bolts and separate the stock bellhousing from the case.
- Test fit the new bellhousing against the front pump to confirm it sits flat with no interference.
- Count the pump bolt holes to confirm a 6 bolt or 8 bolt configuration, and install the supplied pipe plugs in any unused holes on a 6 bolt pump.
- Position the bell to pump gasket between the bellhousing and the pump.
- Install the supplied flange head bolts with sealing rings and hand tighten each one evenly.
- Torque each bellhousing bolt to 18 ft-lbs in a star pattern to seat the housing flat against the case.
- Confirm the SFI certification tag numbers match the stamped numbers on the housing before returning the transmission to service.
