SKU: 72202 | UPC: 00845096016029

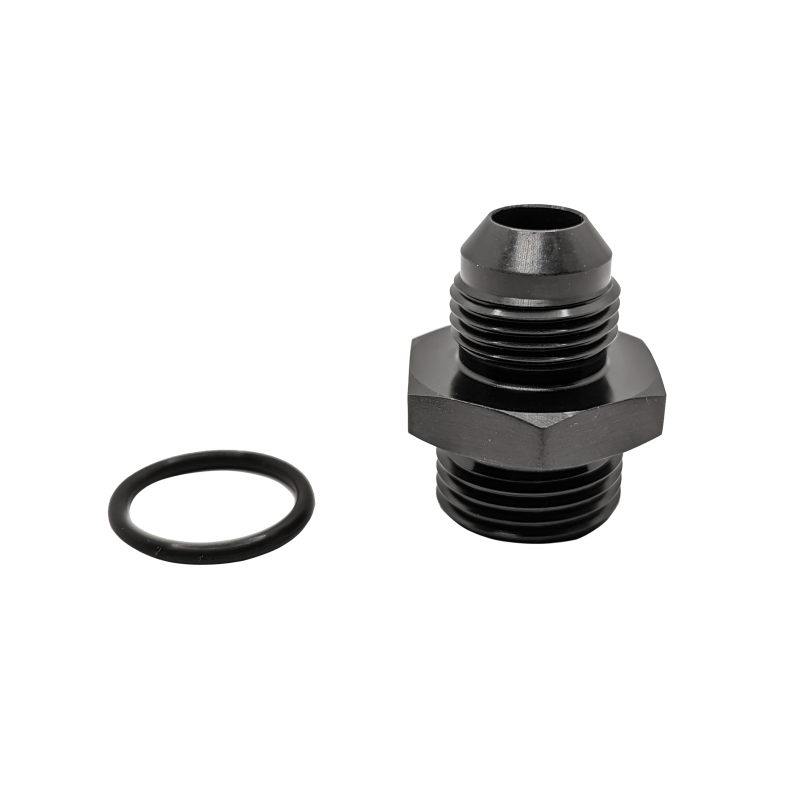

Fuelab Reducer Port Fitting -10AN ORB to -8AN 37 Flare
This Fuelab reducer port fitting connects -10AN ORB ports on fuel pumps or rails to -8AN 37-degree flare hoses in custom high-performance fuel systems. It delivers consistent fuel delivery for race cars, dragsters, and modified street vehicles requiring precise line size reduction. Built for demanding motorsports, it handles high pressures without leaks or restrictions.
Key Features
- Billet 6061-T6 Aluminum Construction: Provides strength and lightweight design at just 0.1 lbs for reduced system weight in racing applications.
- Red Anodized Finish: Resists corrosion and fuel additives while offering a durable, attractive appearance in engine bays.
- -10AN ORB to -8AN 37° Flare Design: 9/16-18 straight thread ORB male with included Viton O-ring seals tightly into ports, mating securely with -8AN flare hose ends.
- High-Pressure Capability: Rated over 1000 PSI for EFI and carbureted systems, ensuring reliable performance under boost or high RPM.
- Precision CNC Machined: Tolerances guarantee leak-free operation and optimal flow rates in fuelab pump setups.
Product Notes
- Viton O-ring pre-installed for immediate use in alcohol or gasoline systems.
- Inspect fittings regularly for wear in high-vibration environments.
- Packages in protective foam insert to prevent thread damage during transit.
Installation Notes
- Professional installation recommended.
- Torque ORB thread to 20-25 ft-lbs. 37 flare connections require no sealant and torque to 15-20 ft-lbs.
- Compatible with Fuelab pumps featuring -10AN ORB ports like 525/565 series. use PTFE tape on straight threads if needed.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| All Years | Universal | Performance Fuel Systems | Fuelab Pumps/Rails |
| 1960-2024 | Chevrolet | Camaro/Corvette | All Race/Modified |
| 1960-2024 | Ford | Mustang/F-100 | All Race/Modified |
| 1980-2024 | Dodge | Challenger/Charger | All Race/Modified |
Why Choose Fuelab?
- Proven in NHRA and drag racing fuel systems for consistent reliability.
- Engineered components trusted by professional tuners worldwide.
- Exact tolerances from CNC machining ensure long-term performance.
Frequently Asked Questions
-
Q: Does this fit Fuelab fuel pumps?
A: Yes, threads directly into -10AN ORB ports on Fuelab 525, 565, and 686 series pumps for easy hose adaptation. -
Q: What material and finish are used?
A: Machined from billet 6061-T6 aluminum with hard red anodizing for fuel resistance and durability. -
Q: What is the warranty and installation tip?
A: Lifetime warranty against defects. always use calibrated torque wrench and check O-ring seating before pressurizing.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact box 4x3x1 inches
- Weight: 0.1 lbs
