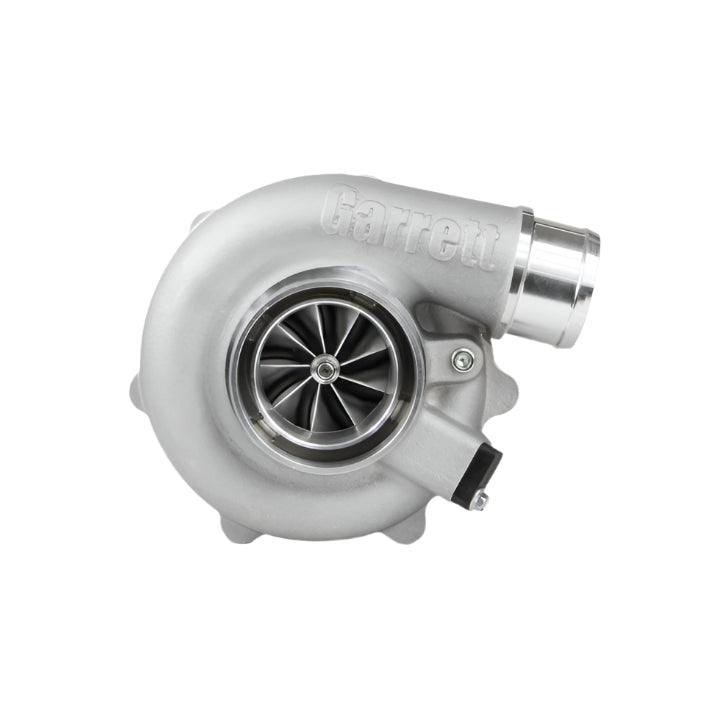

G25-700 G-Series Gen 2 Supercore Garrett 54mm/67mm 0.70a/r 54mm/49mm

Garrett
GRT934075-5002S
Super Core Assemblies
Out of stock
$ 2,440.05

SKU: 934075-5002S

Garrett G25-700 G-series II Supercore(Standard Rotation Supercore only - turbine housing not included)

Product Features:

• Up to 10% higher compressor flow compared to G-Series Gen I at peak pressure ratio and peak turbo RPM.
• New compressor aero technology increases power and performance.
• Direct upgrade path for Gen I customers with just a CHRA purchase.
• G-Series II utilizes Gen I compressor and turbine housings.
• Increased efficiency at high flow rates.
• Standard and reverse rotation configurations.
• Mar-M alloy turbine wheel rated up to 1050° C.
• Stainless steel turbine housings are rated up to 1050° C.
• Oil restrictor and water fittings included.

Product Notes:

Calibration is required to take advantage of increased flow for a horsepower upgrade.

WARNING: The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers G781328-0003 (includes sensor and gauge), G781328-0004 (includes speed sensor), or G-Smart Bluetooth Module with sensor (G923586-0003).

Sensor Kits sold separately.

Power Rating: 350hp – 700hp

Recommended Engine Displacement: 1.4L - 3.0L

Bearing System: Ball Bearing

Cooling: Water and Oil

Compressor: Inducer: 54mm, Exducer: 67mm, Trim: 65, A/R: 0.70

Turbine Inducer: 54mm, Exducer: 49mm, Trim: 84
