Garrett 15-16 Ford Power Stroke 6.7LD 63.5mm AVNT3788R PowerMax Turbocharger - Garrett GRT951205-5001S
Click to zoom in

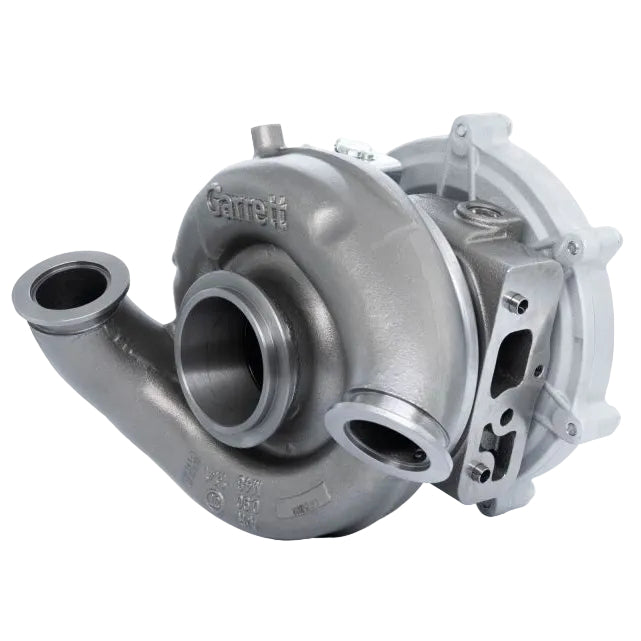

Garrett 15-16 Ford Power Stroke 6.7LD 63.5mm AVNT3788R PowerMax Turbocharger

Garrett
GRT951205-5001S
Turbochargers
6 Units In Stock
$ 3,571.37 $ 2,999.94
$ 2,999.94

The Garrett 15-16 Ford Power Stroke 6.7LD 63.5mm AVNT3788R PowerMax Turbocharger is a performance turbocharger configuration selected by exact vehicle application or by complete engine-system requirements. Confirm the manufacturer part number, compressor and turbine match, rotation, flanges, oil and coolant connections, control strategy, calibration, and supporting hardware before ordering. The verified vehicle applications are listed in the Fitment table below.

Key Features

  • 78/68.5mm Mar-M Turbine Wheel: Constructed from high-temperature super alloy for durability under extreme heat and pressure.
  • 63.5mm Billet Compressor Wheel: Delivers high airflow efficiency with 88mm exducer for increased boost and power output up to 625 HP.
  • AVNT Variable Nozzle Turbine: Provides rapid transient response and low-end torque by adjusting vane geometry for optimal exhaust flow.
  • OE-Style Housings: Ensures seamless direct-fit installation with no modifications to piping or electronics.
  • Dual Ball Bearing CHRA: Reduces friction for faster acceleration and supports reverse rotation design matched to engine layout.
  • Bolt-on fit uses existing factory mounting points and hardware.

Fitment

Years Make Model Application
2015-2016 Ford F-250 6.7L Power Stroke
2015-2016 Ford F-350 6.7L Power Stroke

Specifications

Brand Garrett
Manufacturer Part Number 951205-5001S
Product Type Turbochargers
Condition New
Size 63.5mm
Rotation Standard
Quantity One exact listed component or kit

What's Included

One new Garrett component or kit in the exact configuration and quantity stated. Supporting housings, lines, fittings, clamps, gaskets, fasteners, sensors, wiring, controllers, calibration, fluids, and fabricated installation hardware are included only when expressly listed.

About Garrett

Garrett develops turbochargers, intercoolers, boost-control hardware, and forced-induction technology for original-equipment, replacement, and performance applications.

Related Garrett Products

Frequently Asked Questions

Is the 15-16 Ford Power Stroke 6.7LD 63.5mm AVNT3788R PowerMax Turbocharger a direct-fit turbocharger?
Match the year, make, and model in the Fitment table, then confirm the listed engine, trim, position, calibration, and manufacturer part number.

Does the 15-16 Ford Power Stroke 6.7LD 63.5mm AVNT3788R PowerMax Turbocharger require tuning?
Any airflow or boost change must be evaluated in the engine calibration. Follow Garrett's current requirements and use a qualified calibrator for the complete combination.

What supporting parts are needed for the 15-16 Ford Power Stroke 6.7LD 63.5mm AVNT3788R PowerMax Turbocharger?
Oil and coolant lines, gaskets, fasteners, inlet and exhaust connections, boost control, sensors, intercooling, fuel-system capacity, and installation hardware depend on the exact application.

Installation Instructions

Installation must follow Garrett's current instructions for the exact part number. Verify fitment and the complete system first, protect the engine from debris, prime oil-fed components before startup, use the specified lines, fittings, gaskets, fasteners, torque values, heat protection, wiring, controls, and calibration, then inspect for leaks, interference, abnormal noise, and correct boost operation before driving.
