SKU: 480009-0006

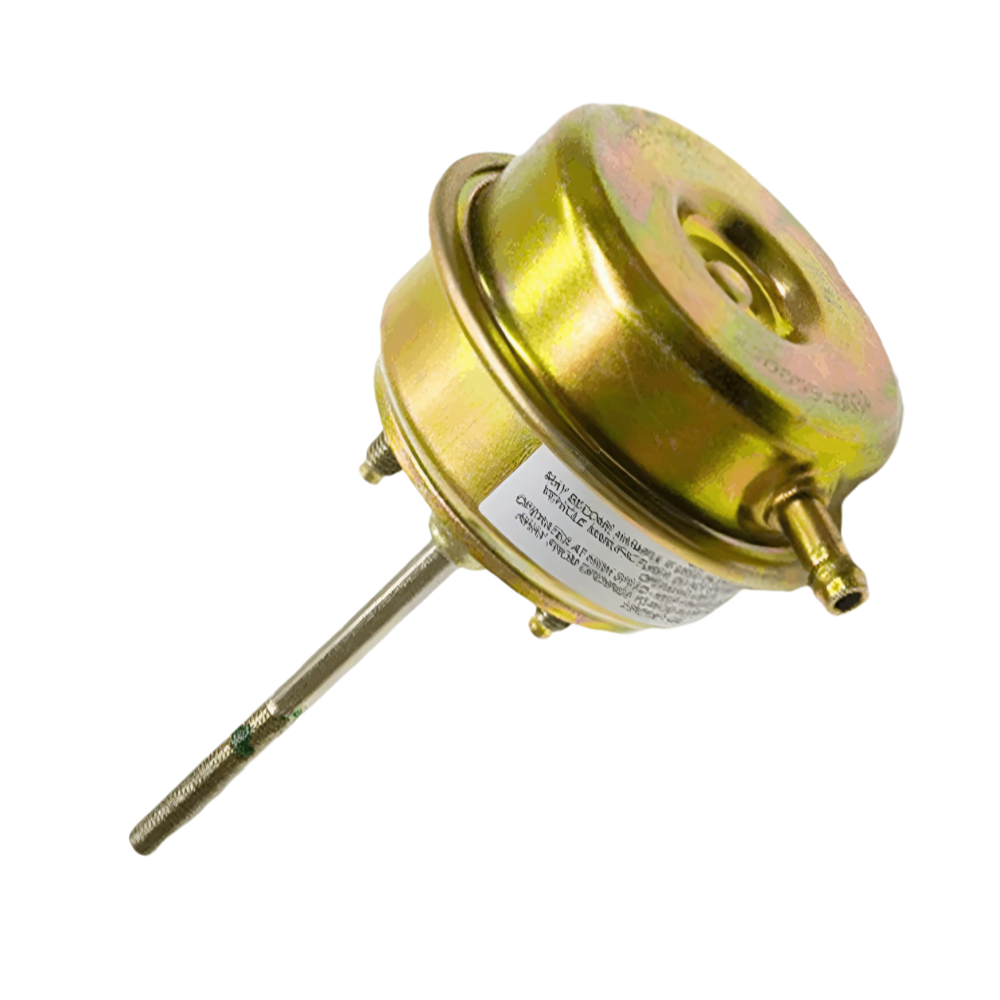

Garrett GT25 Internal Wastegate Actuator (1.0 BAR)
The Garrett GT25 Internal Wastegate Actuator (1.0 BAR), part number 480009-0006, designed to deliver reliable performance for turbocharged vehicles. Engineered by Garrett, a trusted name in turbocharging, this actuator is the ideal choice for enthusiasts seeking consistent boost pressure and enhanced turbo response. With a preset pressure of 1.0 BAR (12-14 PSI), this adjustable actuator ensures accurate wastegate operation, making it a dependable component for maintaining optimal turbo performance across a range of applications.
Crafted with high-quality materials, this actuator is built to withstand the demands of high-performance driving while offering straightforward installation and compatibility with a variety of Garrett turbochargers. Its robust design and precise engineering make it a go-to solution for tuners and mechanics aiming to achieve reliable boost control without compromise. Whether you're upgrading your turbo setup or replacing a worn actuator, the Garrett GT25 Internal Wastegate Actuator delivers the performance and durability you need.
Key Features and Benefits
- Precise Boost Control: Preset at 1.0 BAR (12-14 PSI) with adjustable rod end for fine-tuning boost pressure to match your vehicle’s needs.
- Wide Compatibility: Designed for Garrett T25, GT28, GT30, and GT35-based turbochargers, ensuring versatility across multiple vehicle platforms.
- Durable Construction: Built to endure high temperatures and demanding conditions, providing long-lasting reliability.
- Easy Installation: Includes all necessary components for a hassle-free setup, with an adjustable rod for precise fitment.
- Trusted Brand: Manufactured by Garrett, a leader in turbocharging technology with a legacy of performance-driven solutions.
What’s Included in the Purchase
- 1 x Garrett GT25 Internal Wastegate Actuator (1.0 BAR), part number 480009-0006
- Adjustable rod end for customizable boost settings
- Mounting bracket for secure installation Necessary hardware for installation (bolts and fittings as required)
Note: Machined actuator bracket may not be included confirm with your turbo setup for compatibility.
Fitment Specifications
The Garrett GT25 Internal Wastegate Actuator (1.0 BAR) is compatible with the following Garrett turbochargers:
- Turbo Models: GT25R, GT28R, GT28RS, GT2871R, GT30R, GT3076R, T25, GT35R (with internal wastegate turbine housing, 5-bolt outlet, and 0.60 A/R compressor housing).
- Vehicle Fitment:
- Nissan:
- 1993-1998 Silvia S14 (SR20DET with GT2560R turbo, part number 448734-5)
- 1999-2002 Silvia S15 (SR20DET with GT2560R turbo, part number 448734-5)
- Other Applications: Compatible with vehicles using Garrett GT25, GT28, GT30, or GT35 series turbochargers with internal wastegate setups. Confirm turbo model and housing compatibility before purchase.
- Alternate Part Numbers: 480009-6, 480009-6S, 480009-65, 480009-5006, 480009-5006S, 480009-50065, 480009-0006S, 480009-00065.
Specifications
- Pressure Rating: 1.0 BAR (12-14 PSI), adjustable via rod end.
- Weight: 1.3228 lbs (0.6 kg).
- Shipping Dimensions: 4.5 in (L) x 4.3 in (W) x 4.1 in (H) (11.4 cm x 10.9 cm x 10.4 cm).
- Material: High-grade steel and heat-resistant components for durability.
- Actuator Type: Piston-style, replacing diaphragm-type actuators for improved reliability.
- Rod Length: Adjustable, approximately 98mm to 108mm (center of arm to bracket).
Installation Instructions
For detailed installation guidance, refer to the official Garrett installation resources or consult your turbocharger’s manual. While specific instructions for this actuator are not directly available online, general guidelines for installing Garrett internal wastegate actuators can be found through reputable automotive forums or by contacting Garrett support. Ensure proper alignment of the actuator rod and secure mounting to avoid boost leaks.
Why Choose the Garrett GT25 Internal Wastegate?
This actuator stands out for its precision, durability, and compatibility with a wide range of Garrett turbochargers, making it a versatile choice for performance enthusiasts. Its adjustable design allows for fine-tuned boost control, ensuring your turbo setup performs reliably under various driving conditions. Backed by Garrett’s engineering expertise, this actuator is built to meet the needs of both street and track applications, providing peace of mind and consistent performance.
Warranty
- Warranty: Covered by Garrett’s standard warranty for defects in materials or workmanship. Contact the retailer or Garrett for specific warranty terms. Buyer is responsible for return shipping costs unless the item is defective.
Order Your Garrett GT25 Internal Wastegate Actuator Today
Upgrade your turbocharged vehicle with the Garrett GT25 Internal Wastegate Actuator (1.0 BAR), SKU 480009-0006, and experience reliable boost control tailored to your performance needs. Perfect for Nissan SR20DET applications and other Garrett turbo setups, this actuator ensures your turbo performs at its best.
