Garrett GT3076R Super Core CHRA Part 836000-0003 Garrett GRT836028-5003S
Click to zoom in

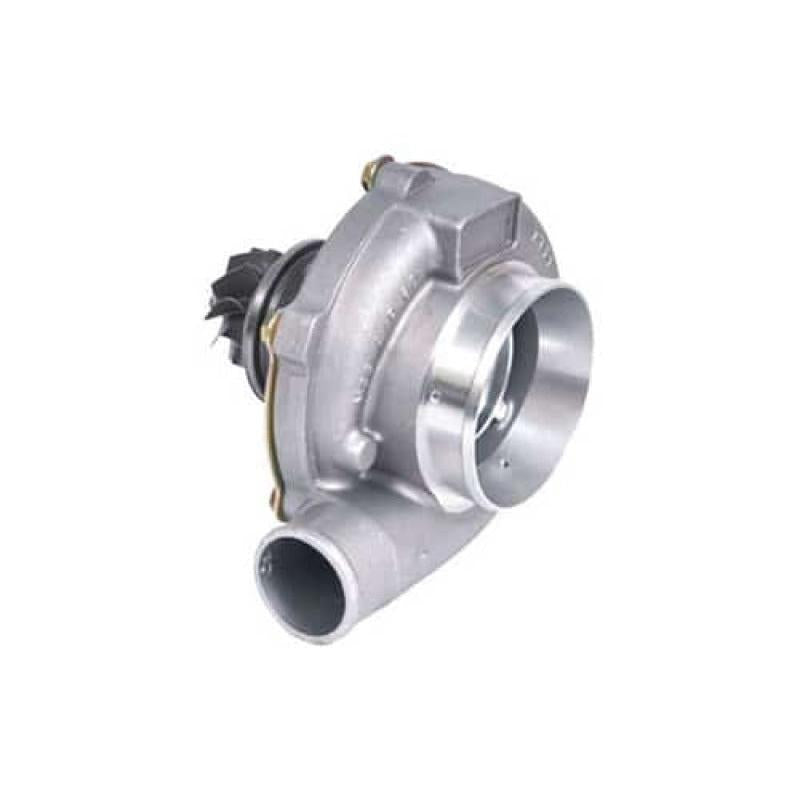

Garrett GT3076R Super Core CHRA Part 836000-0003

Garrett
GRT836028-5003S
Super Core Assemblies
4 Units In Stock - Ships Next Business Day
$ 1,595.53
$ 1,595.53

SKU: 836028-5003S

Garrett GT3076R Super Core CHRA Part 836000-0003 for Evo STI 240SX

The Garrett GT3076R Super Core CHRA Part 836000-0003 is the dual ball bearing rotating assembly at the heart of the GT3076R turbocharger. It fits popular performance vehicles including Mitsubishi Lancer Evolution 2003-2006 Subaru Impreza WRX STI and Nissan 240SX with GT3076R housings. This assembly supports 250-550 HP with fast spool and high compressor flow for street and track use.

Key Features

  • Dual Ceramic Ball Bearings: Minimize friction for spool times under 2500 RPM and long bearing life under high boost
  • Billet Compressor Wheel: 54mm inducer 76mm exducer extended tip design flows 56 lb/min for strong top-end power
  • Inconel Turbine Wheel: 60mm inducer 55mm exducer 10-blade wheel handles 1400 degrees F exhaust temps
  • Integrated Oil Drain: Simplified plumbing with dedicated coolant and oil ports for reliable lubrication
  • Factory Balanced: Precision assembled and balanced for drop-in performance without additional service

Product Notes

  • Requires matching GT3076R compressor cover and turbine housing sold separately
  • Use 0.040 in oil restrictor for optimal bearing pressure
  • Packed in protective OEM box for safe transit

Installation Notes

  • Professional installation recommended.
  • Apply anti-seize to compressor bolts torque to 10 Nm in cross pattern
  • Compatible with T3 0.63/0.82 T4 0.81 and V-band 0.82 turbine housings

This Part Fits

Year Make Model Submodel
2003-2005 Mitsubishi Lancer Evolution VIII
2006 Mitsubishi Lancer Evolution IX
2004-2007 Subaru Impreza WRX STI
1989-1998 Nissan 240SX S13 S14 SR20DET
1995-1999 Mitsubishi Eclipse GSX 2G DSM
1993-2002 Mazda RX-7 FD3S

Why Choose Garrett?

  • Leaders in turbocharger engineering since 1950s with OE supply to major automakers
  • Race-proven design trusted in drag NHRA and rally applications worldwide
  • Every CHRA undergoes rigorous VSR balancing and quality testing

Frequently Asked Questions

  • Q: Does this CHRA fit my stock turbo housing?
    A: Designed for Garrett GT3076R turbochargers with matching compressor cover and turbine housing options like T3 or V-band
  • Q: What material is the turbine wheel?
    A: Investment cast Inconel for extreme heat resistance and durability under high boost levels
  • Q: What is the warranty and HP limit?
    A: 12-month unlimited mileage warranty when installed by certified shop rated to 550 HP maximum

Shipping & Handling

  • Method: UPS Ground or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: OEM protective box 12 x 12 x 12 inches
  • Weight: 8.2 lbs
