SKU: 11000305

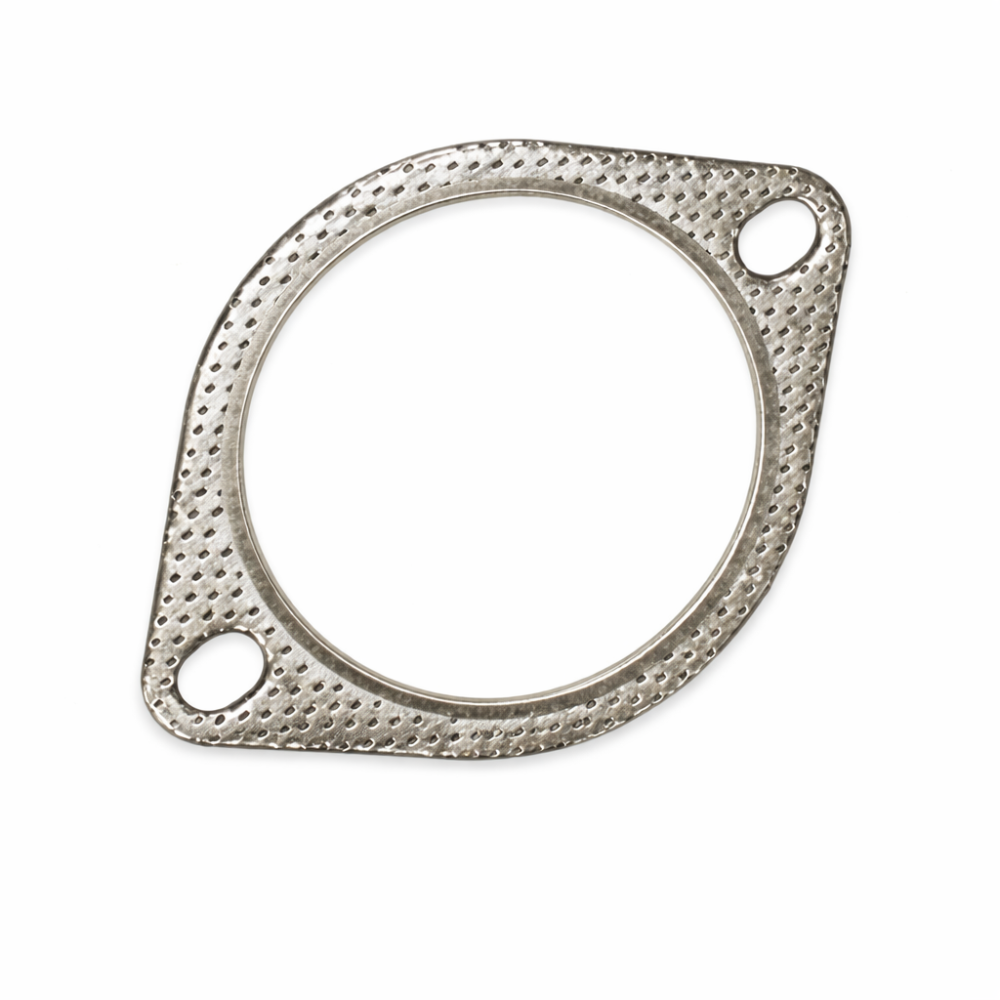

GReddy 80mm Oval Exhaust Gasket for 1989-2002 Nissan 240SX Silvia SR20DET Subaru Impreza WRX
The GReddy 80mm Oval Exhaust Gasket provides a multi-layer steel seal for high-performance exhaust manifolds and downpipes on Nissan SR20DET 240SX and Silvia models from 1989 to 2002, plus Subaru Impreza WRX 2002-2007. This gasket withstands extreme heat over 1600°F and high pressure from turbocharged engines to stop exhaust leaks and preserve boost levels. It serves as a direct replacement for worn stock gaskets in tuned exhaust setups.
Key Features
- Multi-Layer Steel Build: Stainless steel layers flex to seal uneven flanges and resist blowouts during high exhaust flow
- 80mm Oval Design: Matches port size on GReddy turbo manifolds for SR20DET and EJ20/EJ25 turbo applications
- High-Temperature Resistance: Handles over 1600°F for consistent performance in turbo systems
- 4-Bolt Pattern: 70mm x 52mm spacing fits JDM performance flanges directly
- Thin Profile: 1.6mm thickness reduces exhaust restriction with secure compression
Product Notes
- Inspect manifold and downpipe flanges for flatness before installation
- Torque bolts to 20-25 ft-lbs in cross pattern for even clamping pressure
- Store in dry area to prevent corrosion on steel layers
Installation Notes
- Professional installation recommended.
- Clean mating surfaces with wire brush and degreaser for optimal seal
- Compatible with OEM or GReddy hardware replace studs if stretched
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1989-1993 | Nissan | 240SX | S13 SR20DET |
| 1994-1998 | Nissan | 240SX | S14 SR20DET |
| 1995-1999 | Nissan | Silvia | S14 SR20DET |
| 1999-2002 | Nissan | Silvia | S15 SR20DET |
| 2002-2007 | Subaru | Impreza WRX | GD/GG EJ20 EJ25 |
| 2004-2007 | Subaru | Impreza STI | GD/GD EJ25 |
Why Choose GReddy?
- Decades of JDM motorsport experience in turbo systems
- Manufactured in Japan with tight tolerances for direct bolt-on fit
- Proven durability in racing and street performance builds
Frequently Asked Questions
-
Q: Will this gasket fit my S14 SR20DET with GReddy manifold?
A: Yes it matches the 80mm oval outlet on GReddy T67/T76 turbo manifolds for SR20DET S13/S14/S15 applications -
Q: What material is used and is it reusable?
A: Multi-layer stainless steel construction resists heat cycling and can be reused multiple times with proper torque and clean surfaces -
Q: Does it require special tools for installation?
A: No standard 10mm or 12mm socket set works follow torque specs and use anti-seize on bolts for easy removal later
Shipping & Handling
- Method: USPS First Class or UPS Ground
- Availability: In stock - ships same or next business day
- Packaging: Padded envelope 6in x 8in x 0.5in
- Weight: 0.05 lbs
