SKU: 12020479
GReddy Nissan 180SX/Silvia PS13/RPS13 1989-1994 240SX 24 LS Intercooler Kit

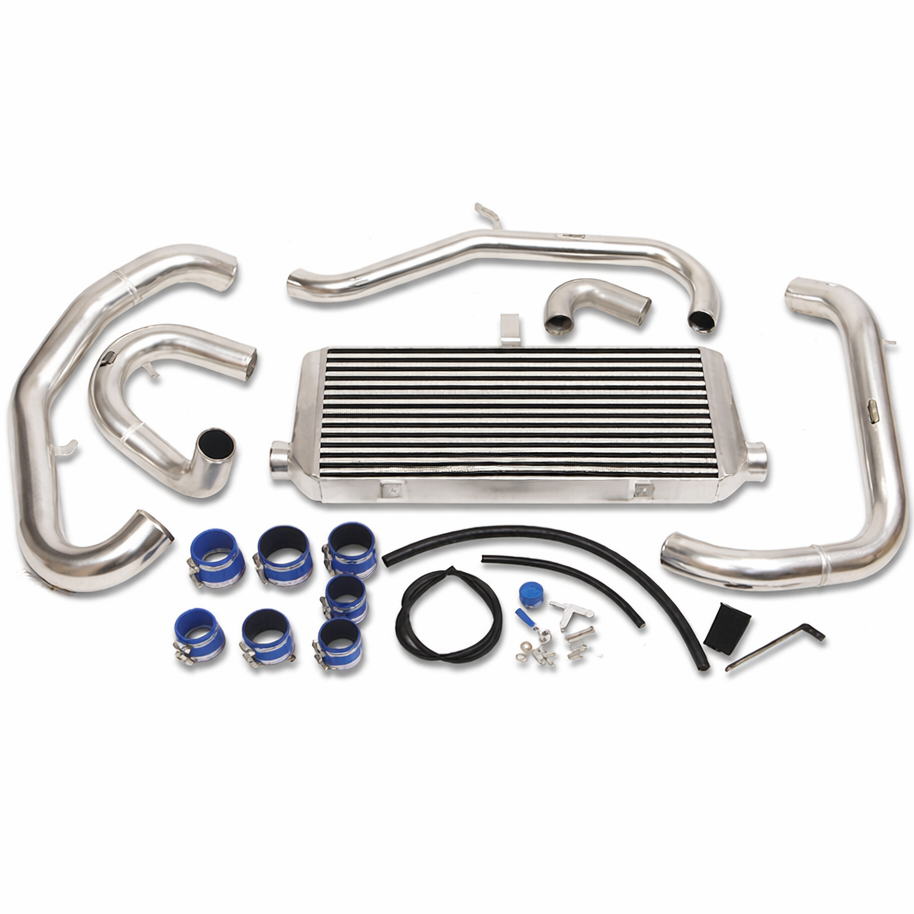

GReddy 24 LS Intercooler Kit 12020479 provides a bolt-on front-mount system with piping for turbocharged Nissan S13 chassis vehicles including 1989-1994 240SX, PS13 Silvia, and RPS13 180SX. It cools intake air for denser charge air and detonation resistance during long runs. Expect improved throttle response and steady boost in SR20DET or KA24 turbo builds.
Key Features
- 24-inch Long Side Bar-and-Plate Core: 610mm x 300mm x 70mm size manages 350+ whp through fast heat dissipation and minimal pressure drop
- Mandrel-Bent Aluminum Piping: 2.36-inch (60mm) diameter reduces turbulence for smooth airflow from turbo to throttle body
- Cast Aluminum End Tanks: High-pressure durability with direct integration to S13 bumper beam
- Complete Hardware Kit: Stainless clamps, silicone couplers, brackets, and adapters enable straightforward bolt-on installation
- Optimized Piping Layout: Pre-bent tubes fit under stock hood and around radiator with little trimming required
Product Notes
- Designed for turbocharged SR20DET engines in swapped S13 chassis
- Inspect all connections during initial break-in for leak-free operation
- Large core may reduce front airflow. pair with high-flow radiator for track use
Installation Notes
- Professional installation recommended.
- Remove front bumper, grille, and radiator support for access
- Uses factory mounting points. compatible with T3/T4 turbo manifolds and 50mm wastegates
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1989-1990 | Nissan | 240SX | XE |
| 1989-1994 | Nissan | 240SX | SE |
| 1991-1992 | Nissan | 240SX | LE |
| 1991-1993 | Nissan | 240SX | Base |
| 1989-1993 | Nissan | 180SX | RPS13 |
| 1989-1994 | Nissan | Silvia | PS13 |
Why Choose GReddy?
- Over 40 years developing cooling systems for JDM imports
- Factory-direct engineering tested on dyno and drift cars
- Precise tolerances ensure drop-in fit for S13 turbo builds
Frequently Asked Questions
-
Q: Does this kit fit a 1991 Nissan 240SX with SR20DET blacktop swap?
A: Yes, it bolts directly to S13 chassis with SR20DET. clears stock hood and OEM-style manifolds -
Q: What materials are used in construction?
A: All-aluminum bar-and-plate core, mandrel-bent pipes, and cast end tanks with stainless hardware for corrosion resistance -
Q: What warranty coverage applies?
A: GReddy provides a 1-year limited warranty against manufacturing defects. register product online for full terms
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: In stock - ships same or next business day
- Packaging: Oversized box 48 x 24 x 12 inches
- Weight: 38 lbs
