SKU: 12010464
GReddy Toyota Aristo JZS161 Intercooler Kit 1997-2004

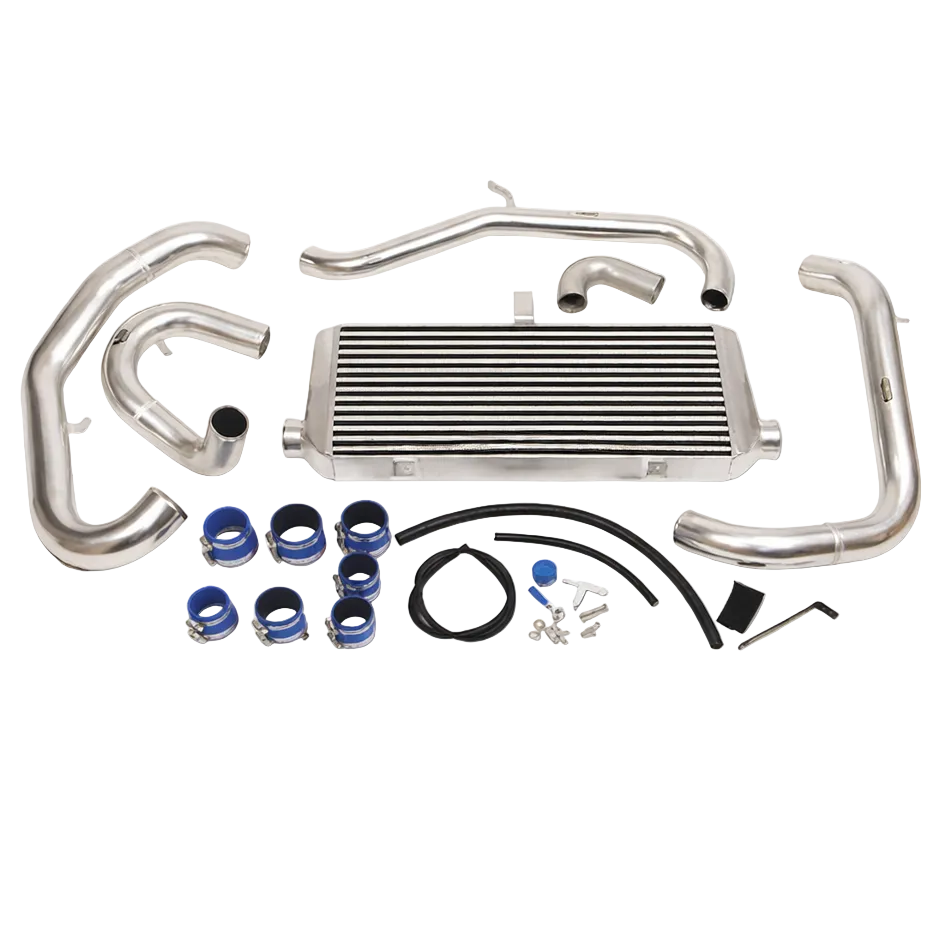

The GReddy Intercooler Kit 12010464 equips the Toyota Aristo JZS161 with a high-capacity front-mount intercooler designed for the 2JZ-GTE twin-turbo engine. This direct-fit kit replaces the factory side-mount intercooler on 1997-2004 models improving charge air cooling for consistent power delivery. Drivers gain denser air intake leading to higher horsepower and torque across the RPM range.
Key Features
- Bar-and-Plate Core: 24.8 x 7.1 x 3.0 inch core (630 x 180 x 76mm) handles 450+ HP with 1300 cfm airflow capacity
- Mandrel-Bent Piping: 2.5-inch aluminum tubes reduce turbulence ensure smooth boost flow from turbo to throttle body
- CNC Brackets: Cast aluminum mounts align perfectly with OEM bumper supports no cutting required
- Complete Hardware: Includes silicone couplers stainless clamps T-bolt clamps and all fittings for plug-and-play install
- Powder-Coated Finish: Black epoxy coating resists corrosion withstands underhood heat up to 400F
Product Notes
- Pair with upgraded blow-off valve and boost controller for full potential
- Inspect all connections post-install to prevent boost leaks
- Oversize package requires freight carrier for delivery
Installation Notes
- Professional installation recommended.
- 4-6 hour install time with basic hand tools and jack stands
- Bolts to factory locations retains stock radiator position
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1997-2004 | Toyota | Aristo | JZS161 |
Why Choose GReddy?
- Engineering from Trust Racing since 1977 with JDM motorsport wins
- Aluminum construction tested for 30psi boost levels
- Exact OEM-spec tolerances for Aristo chassis integration
Frequently Asked Questions
-
Q: Will this kit fit other 2JZ-GTE engines like Supra?
A: Designed specifically for JZS161 Aristo chassis piping and brackets do not match JZA80 Supra or other platforms -
Q: What core material and construction?
A: All-aluminum bar-and-plate design with TIG-welded end tanks for maximum heat dissipation and durability -
Q: What warranty coverage?
A: 1-year manufacturer defect warranty on core and components proper installation required
Shipping & Handling
- Method: Ground freight
- Availability: In stock - ships same or next business day
- Packaging: Oversize box 50 x 24 x 14 inches
- Weight: 48 lbs
Forced Induction
Forced induction systems encompass every method of pushing air into an engine at greater than atmospheric pressure, including turbochargers driven by exhaust energy, superchargers driven mechanically by the crankshaft, and prochargers using centrifugal designs belt-driven at higher ratios than traditional roots-type blowers, with each approach delivering a significant increase in air mass per cylinder fill that allows proportionally more fuel to be burned and more power to be produced without increasing engine displacement. Adding 10 PSI of boost pressure to a naturally aspirated engine can increase power output by 50 to 70 percent depending on the engine's breathing efficiency and the quality of the supporting hardware, making forced induction the most power-dense modification available relative to cost and complexity. This collection covers complete forced induction systems, turbocharger and supercharger hardware, intercoolers, blow-off valves, wastegates, and supporting component...
View Forced Induction Products
Intercooler Components
Intercooler components let you build, upgrade, or repair your charge cooling system without replacing the entire intercooler assembly. Quality piping, silicone couplers, mounting brackets, and core upgrades make a meaningful difference in keeping intake temperatures low on high-boost builds and daily-driven turbocharged vehicles alike. Popular Upgrades Frequently ordered intercooler components include upgraded silicone coupler hose kits to replace cracked or blow-off-prone rubber hoses, intercooler core upgrades for higher bar-and-plate or tube-and-fin density, aluminum intercooler piping sets that replace restrictive OEM plastic pipes, and universal mounting brackets for custom intercooler positioning on fabricated builds. What causes intercooler components to fail? The most common intercooler component failure points are silicone or rubber couplers that crack or split under repeated heat cycling, plastic OEM piping that becomes brittle over time, and mounting brackets that fatigue...
View Intercooler Components Products
Intercooler Kits
A complete intercooler kit replaces or upgrades the entire charge cooling system in a single purchase, providing the intercooler core, piping, couplers, clamps, and hardware needed for a clean install. Upgraded intercooler kits are one of the most effective power-supporting modifications for any turbocharged build targeting higher boost pressure. Popular Upgrades Top-selling intercooler kits include front-mount intercooler kits for popular turbocharged platforms like the Ford Focus ST, Mustang EcoBoost, Subaru WRX, and Mitsubishi Evo, side-mount intercooler upgrades for rotary and compact turbo cars, and direct-fit top-mount intercooler upgrades for factory top-mount locations that maintain OEM fitment and aesthetics. How much power can an intercooler kit add? An intercooler kit does not add power by itself but supports power gains from increased boost pressure, aggressive tuning, or larger turbocharger upgrades by maintaining safe intake air temperatures. An oversaturated factory i...
View Intercooler Kits Products
