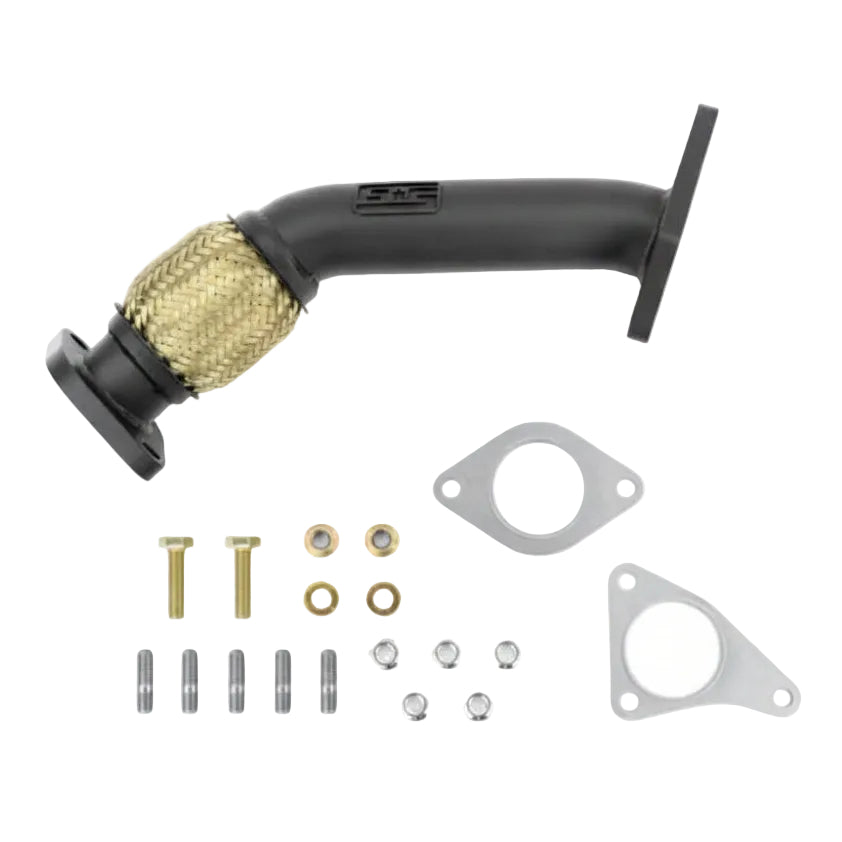

GrimmSpeed 2-Bolt Up-Pipe, Black Ceramic Coated, for EJ25 Subaru Applications
This is a direct-fit replacement up-pipe for EJ25-powered Subarus, engineered to mate with OEM 2-bolt headers for improved turbo response and durability over the factory up-pipe.
What It Fits
2004-2021 Subaru STI, 2006-2014 Subaru WRX, 2006-2013 Subaru Forester XT, 2007-2009 Subaru Legacy GT, and 2007-2009 Subaru Outback XT, all EJ25 engines with OEM 2-bolt headers.
What It Does
Replaces the factory up-pipe with a design that reduces flow restriction, typically improving turbo spool by 300-400 RPM sooner for quicker throttle response. It is also a useful replacement for factory up-pipes whose interior walls have become brittle and broken apart from age and heat cycles, which can block turbocharger flow.
Construction
Built from 14-gauge 304 stainless steel mandrel-bent tubing with a 321 stainless steel flex joint, in a black ceramic coating for thermal management and appearance. Flanges are 1/2-inch CNC-machined for a secure seal, with TIG welds inside and out by certified welders. SEMA Certified (SC-GRM01-0145).
What's Included
- 1 up-pipe assembly
- Multi-layer Fire Ring gaskets
- Zinc-coated mounting hardware
Compatibility Limits
Fits OEM 2-bolt headers only; not for 3-bolt header setups. No tune is required for installation. CARB EO approval was in progress at time of listing; confirm current emissions compliance status for your state before installing on an emissions-regulated vehicle.
Installation
- Raise and support the vehicle and allow the exhaust system to cool completely before beginning work.
- Remove the factory up-pipe from the turbocharger outlet and the OEM 2-bolt header per the applicable factory service procedure.
- Install the included Fire Ring gaskets at each connection point.
- Mount the new up-pipe to the header and turbocharger outlet using the included zinc-coated hardware.
- Torque all fasteners to the applicable factory specification and check for leaks after the engine is started and warmed up.
FAQ
Do I need a tune after installing this up-pipe?No, a tune is not required for installation.
Is hardware included?Yes, gaskets and zinc-coated mounting hardware are included.
Does this fit 3-bolt header setups?No, this up-pipe is designed for OEM 2-bolt headers only.
What is the benefit of replacing my factory up-pipe?Improved flow can reduce turbo lag by roughly 300-400 RPM of quicker spool, and it also addresses factory up-pipes whose interior walls have deteriorated with age and heat cycles.
What material is this up-pipe made from?14-gauge 304 stainless steel tubing with a 321 stainless steel flex joint, finished in a black ceramic coating.
Is this legal for street use?It is SEMA Certified (SC-GRM01-0145). CARB EO approval was in progress at time of listing; confirm current status for your state's emissions requirements.
Does this fit the WRX and STI the same way?Both use the same EJ25 2-bolt header up-pipe design across the listed model years and platforms.
Is a wastegate bracket included?No, an internal wastegate bracket is not included and is sold separately if needed.
